Troubleshooting
6-17
Part 1126931_01
2018 Nordson Corporation
Favorites Group Navigation
Screen Type Display Parameters Keypad Button Selection
Operating Screen
VEL:FLEX:AIN1
STOP
REM
AUTO SETS
Press
Groups Screen
Favorites
GROUP 0
REM
AUTO
SETS
Press
Parameter Screen
Actual Frequency
P100.00
REM
AUTO SETS
Press ten (10)
times
Parameter Screen
Max Frequency
P211.00
REM
AUTO SETS
Press
Setting Screen
P211/000 Hz
50.0
REM
AUTO SETS
Press until 87.0
is displayed
Setting Screen
P211/000 Hz
87.0
REM
AUTO SETS
Press
Parameter Screen
Max Frequency
P211.00
REM
AUTO SETS
Press
NOTE: Use the Up and Down buttons to
navigate to other parameters in Group 0.
In this example, the BACK button is used
to return to Group list.
Groups Screen
Favorites
GROUP 0
REM
AUTO
SETS
Press
NOTE: Use the Up and Down buttons to
navigate to other groups. In this example,
the BACK button is used to return to the
Operating Screen.
Continued...
AUTO
VEL:FLEX:AIN1
PSAVED
REM AUTO
VEL:FLEX:AIN1
Savingp
REM
Troubleshooting
6-18
Part 1126931_01
2018 Nordson Corporation

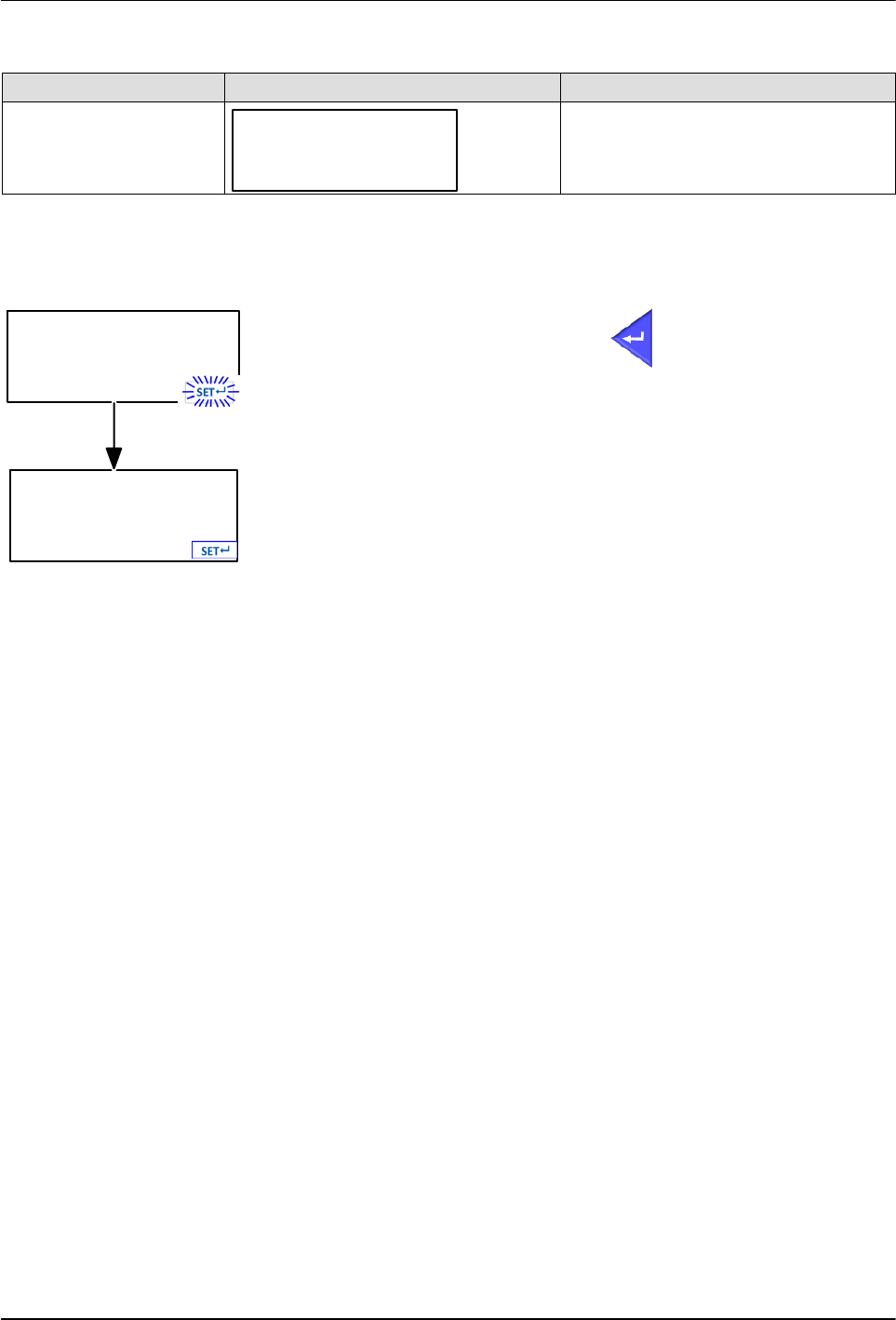

Favorites Group Navigation (contd)
Screen Type Display Parameters Keypad Button Selection
Operating Screen
VEL:FLEX:AIN1
STOP
REM AUTO SETS
We are at the Operating Screen.
Saving the Settings
After the adjustments are complete, press for three (3) seconds to save
all the settings to memory.
The
SET8
icon blinks when the settings are not saved. Once the
settings are saved, the icon is steady.
VEL:FLEX:AIN1
STOP
REM
AUTO
VEL:FLEX:AIN1
PSAVED
REM AUTO
Press > 3S (Saving Parameter)
Troubleshooting
6-19
Part 1126931_01
2018 Nordson Corporation

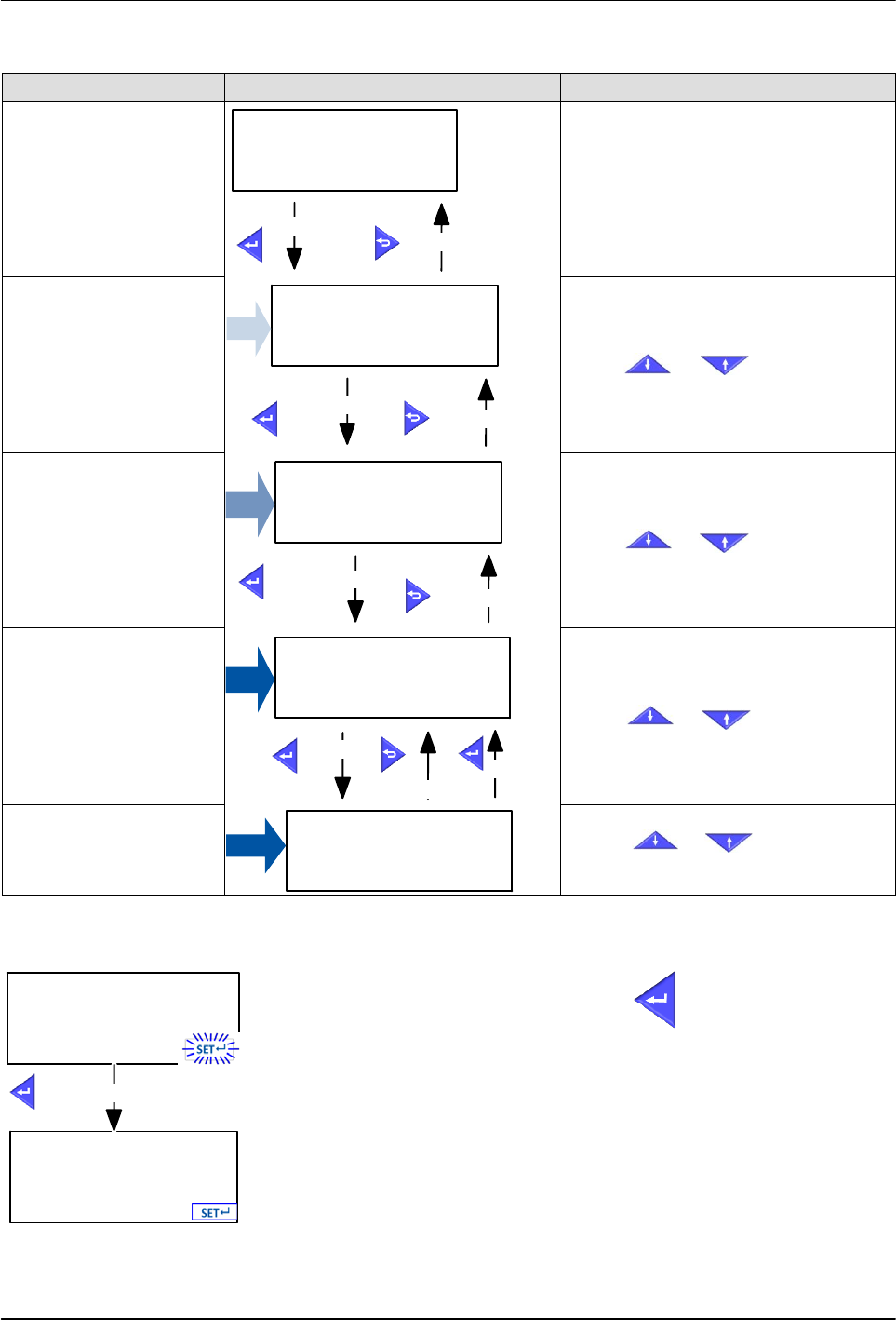

Navigation Group 1‐7
Screen Type Display Parameters Keypad Button Selection
Operating Screen
VEL:FLEX:AIN1
STOP
REM
AUTO SETS
Enter menu
Exit menu
Groups Screen
I/O Setup
GROUP 4
REM
AUTO
SETS
Press or to select Group.
Enter Parameter
Exit Parameter
Parameter Screen
Digital Outputs
P420.00
REM
AUTO SETS
Press or to select
Parameter.
Enter Sub‐Parameter
Exit Sub‐Parameter
Sub‐Parameter Screen
NOTE: If Sub‐Parameter
screen is not available, the
Direct Setting Screen will
display.
Digital Outputs 1
SUB 002
REM
AUTO SETS
Press or to select
Sub‐Parameter.
Enter Setting
Confirm Setting
Exit Setting
Setting Screen
Ready to run
51
REM
AUTO SETS
Press or to change
parameter value.
Saving the Settings
After all the adjustments are complete, press for three (3) seconds to
save all the settings to memory.
The
SET8
icon blinks when the settings are not saved. Once the
settings are saved, the icon is steady.
