Parts
7-8
Part 1126931_01
2018 Nordson Corporation
Pump Assemblies
Drive Module Parts
See Figure 7‐4.
Item Part Description Quantity Note
— ‐ ‐ ‐ ‐ ‐ ‐ EZ,MOTOR DRIVE,45L&20L, 1DS,EZ —
301 ‐ ‐ ‐ ‐ ‐ ‐ MOTOR UNIT,W/BRACKET,EZ,R 1 A
302 ‐ ‐ ‐ ‐ ‐ ‐ BLANK ASSY,PUMP,DS,EZ 1 A
303 7402299 COUPLING,M24,DAN/NORMAL 1
304 ‐ ‐ ‐ ‐ ‐ ‐ SCR,SKT,M8X30,BL 4
305 ‐ ‐ ‐ ‐ ‐ ‐ WASHER,FLT,M,REG,M8,STL,EZ 4
306 ‐ ‐ ‐ ‐ ‐ ‐ WASHER,LK,M,SPT,M8,STL,EZ 4
307 900344 LUBRICANT, NEVER SEEZ, 8 OZ CAN 1
390 ‐ ‐ ‐ ‐ ‐ ‐

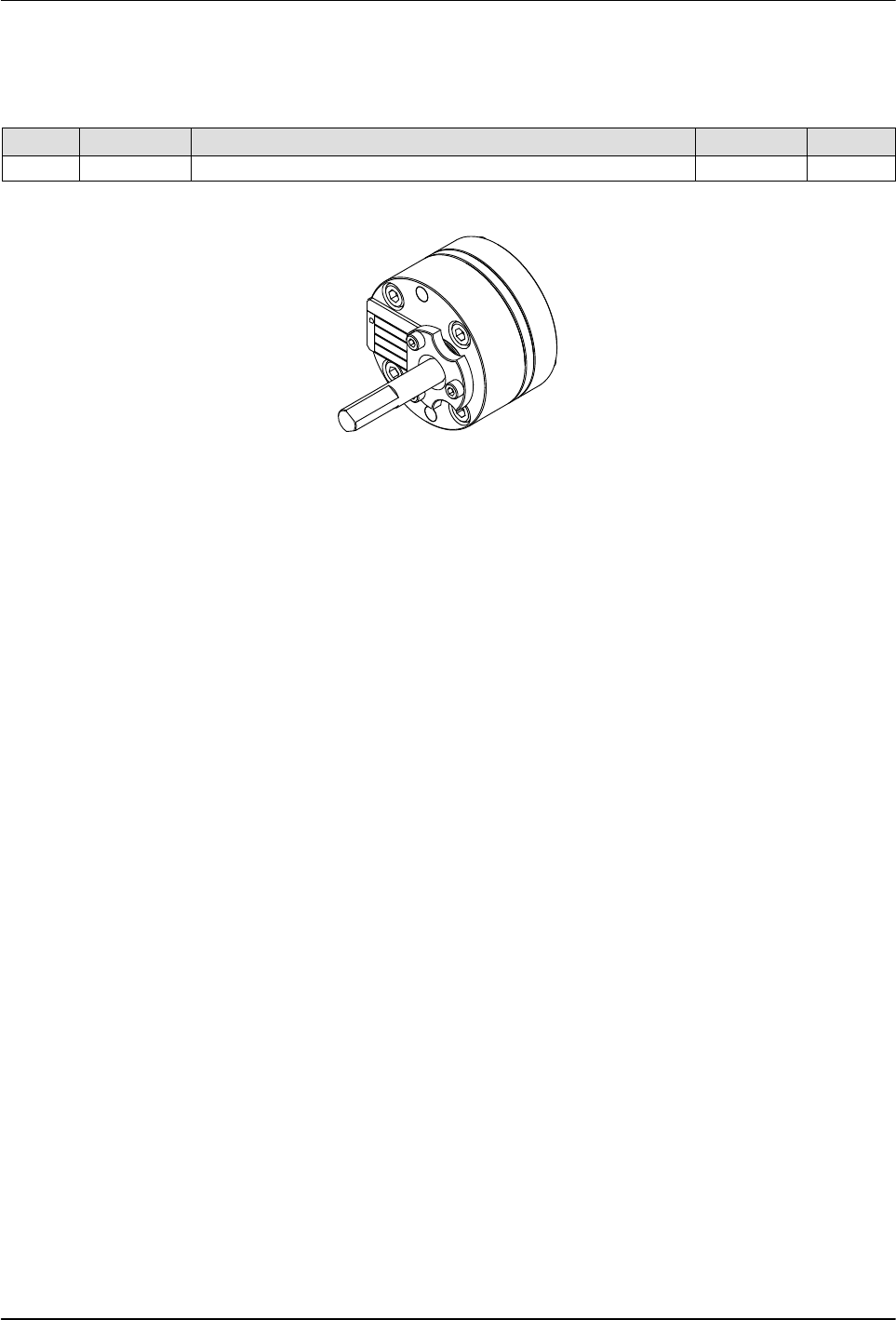

DUAL‐STREAM GEAR PUMPS
1 B
NOTE A: Refer to Motor Assembly Parts.
B: Refer to Gear Pumps Parts.
302
390
305
304
307
306
303
301
4X
4X
4X

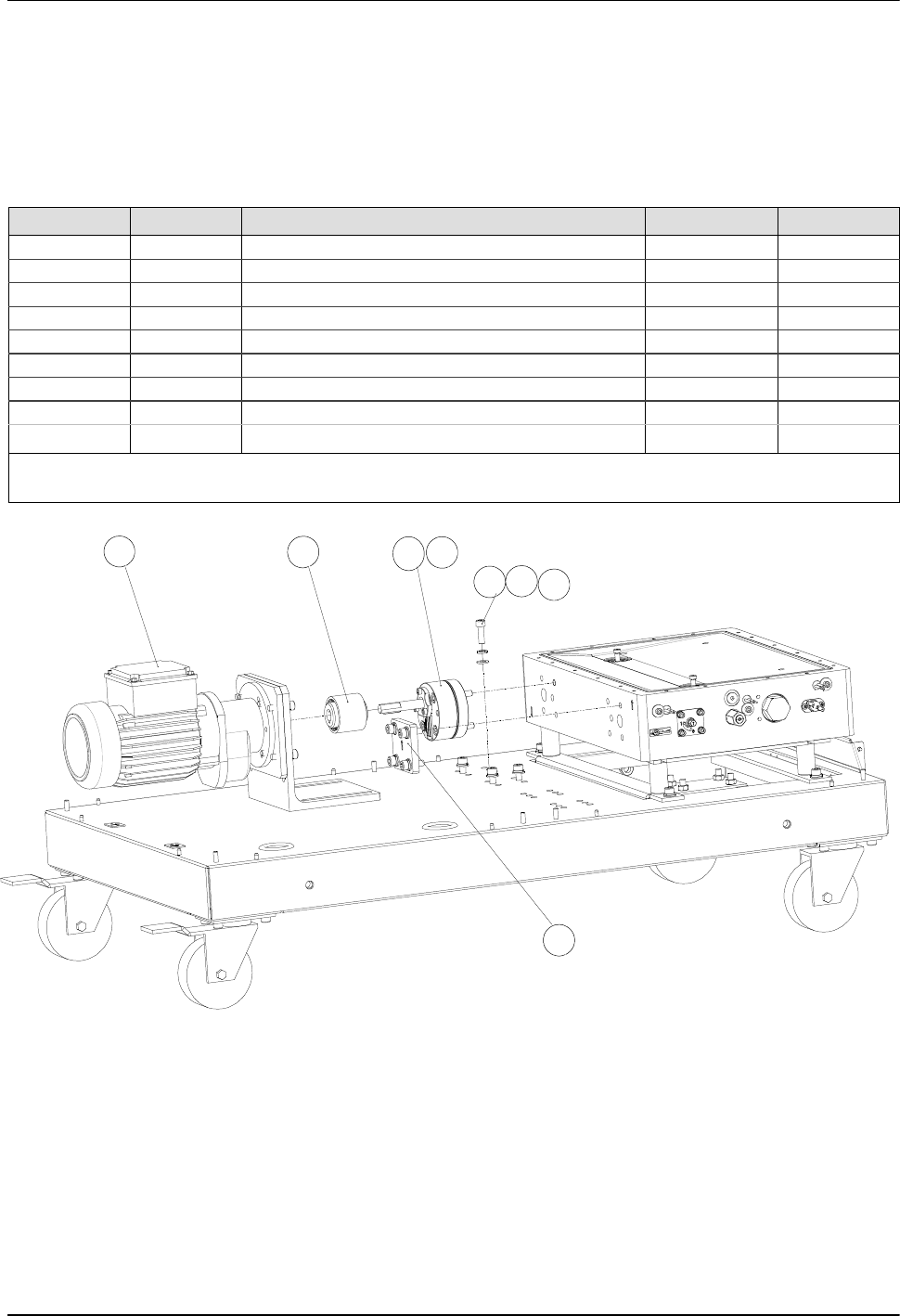

Figure 7‐4 Pump module parts
