Parts 7-1 1 Part 1126931_01 2018 Nordson Corporation Control Valve Assemblies The control valve assemblies vary depending on the type of pressure control valve: pressure control valve, pneumatic pressure control valve,…
Parts
7-10
Part 1126931_01
2018 Nordson Corporation
Safety Valve Parts
See Figure 7‐6.
Item Part Description Quantity Note
— 207932
VALVE, SAFETY, 85 BAR
1
— 394592 SERVICE KIT 1
1 ‐ ‐ ‐ ‐ ‐ O‐RING 11 X 2 1
2 ‐ ‐ ‐ ‐ ‐ O‐RING 9 X 2 1
— ‐ ‐ ‐ ‐ ‐ HIGH‐TEMP. GREASE, GLS 595/N2, 10G 1
1
2

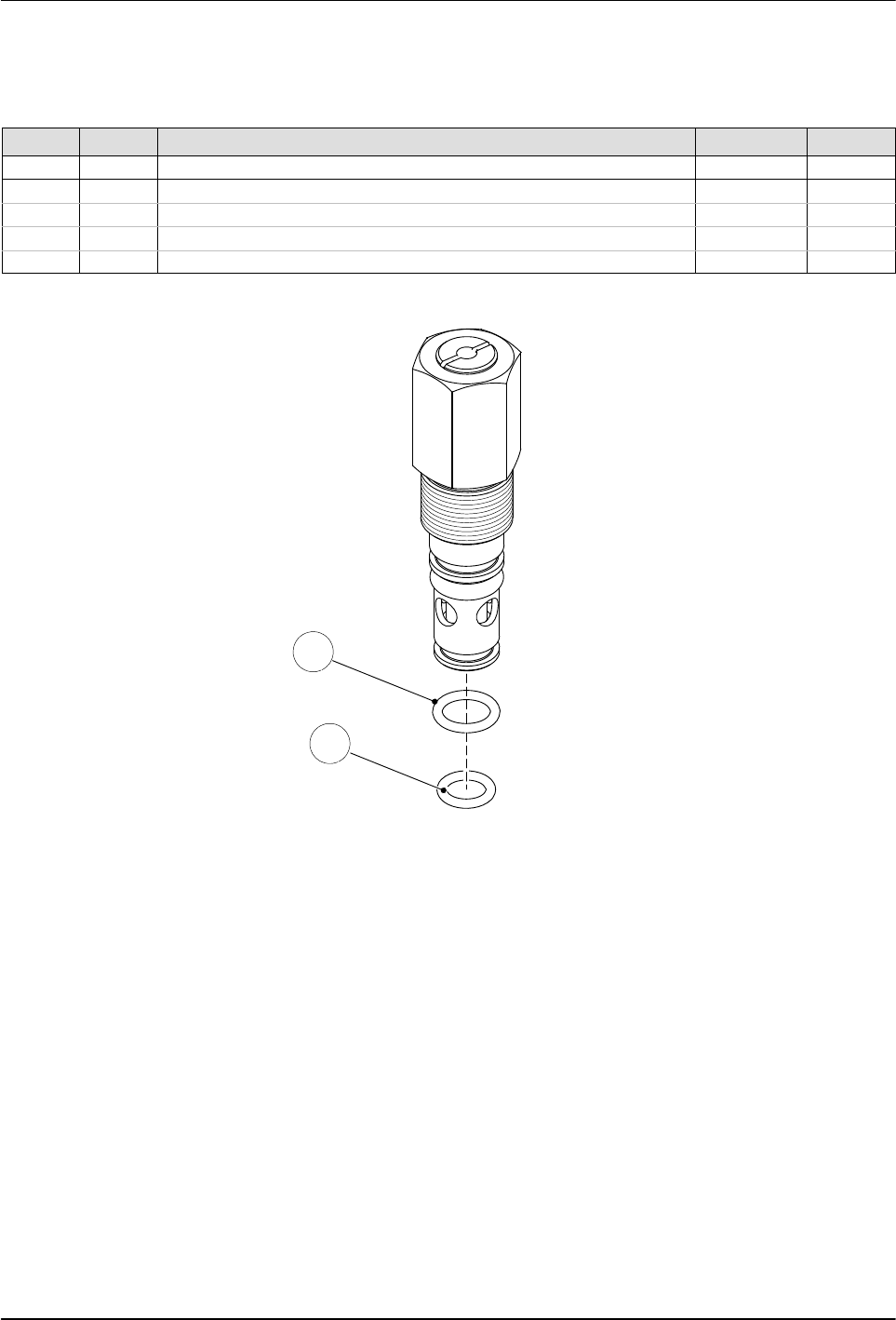

Figure 7‐6 Safety valve parts
Parts
7-11
Part 1126931_01
2018 Nordson Corporation
Control Valve Assemblies
The control valve assemblies vary depending on the type of pressure control
valve: pressure control valve, pneumatic pressure control valve, circulation
control valve, or blank. Refer to the correct parts lists for your melter.
Control Valve Module Parts
See Figure 7‐7.
Item Part Description Quantity Note
— ‐ ‐ ‐ ‐ ‐ ‐ ‐ MODULE,PRESSURE CONTROL —
401 203059 PRESSURE CTRL VALVE 590 BAR VB/DB 2
— 1070961 VALVE, CIRCULATION CONTROL, ALTABLUE 2
— ‐ ‐ ‐ ‐ ‐ ‐ ‐ PLUG, PRESSURE REGULATOR VALVE VB/DB 2
NOTE A: Refer to Pressure Control Valve Parts.
B: Refer to Circulation Control Valve Parts.
401

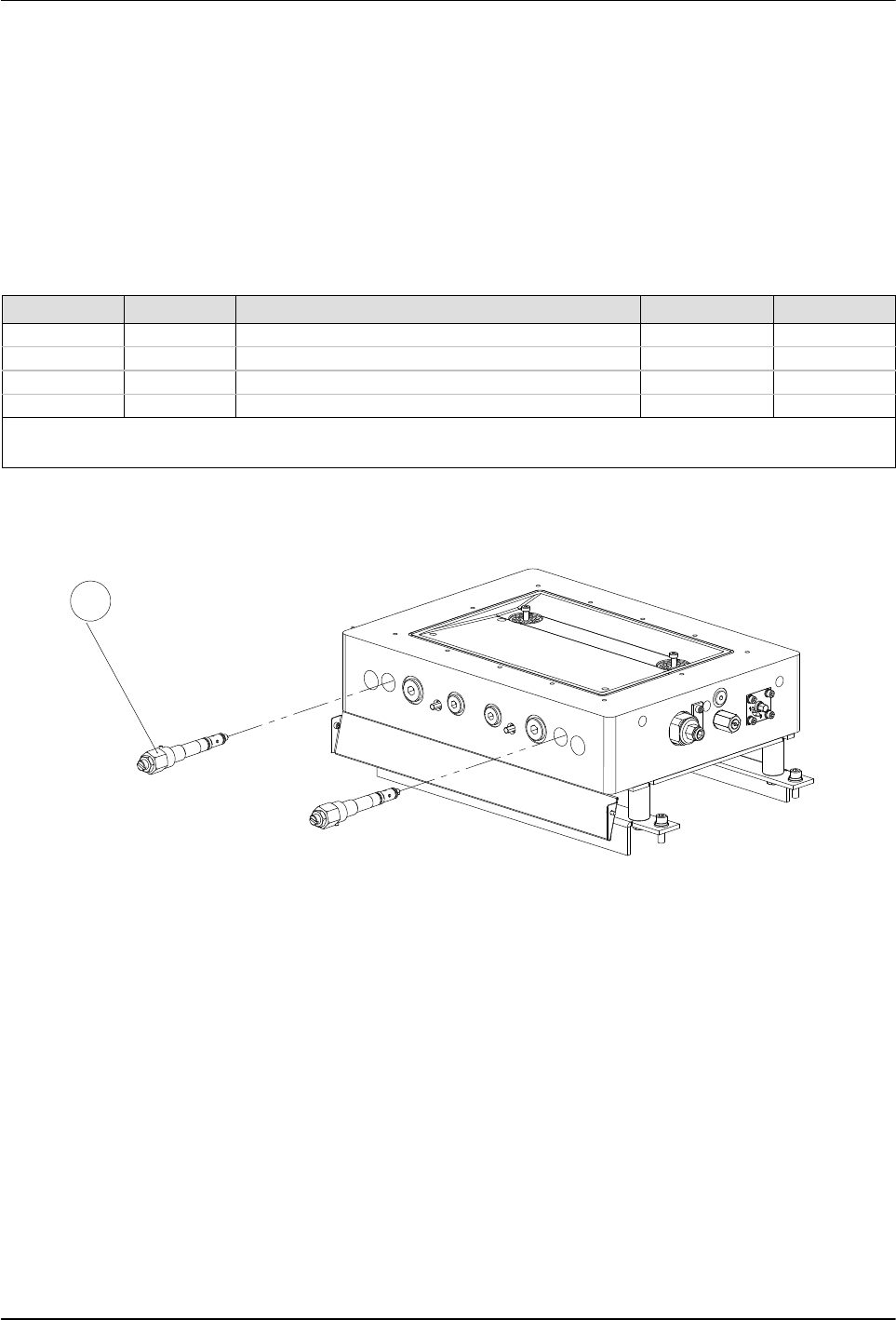

Figure 7‐7 Pressure control module parts
