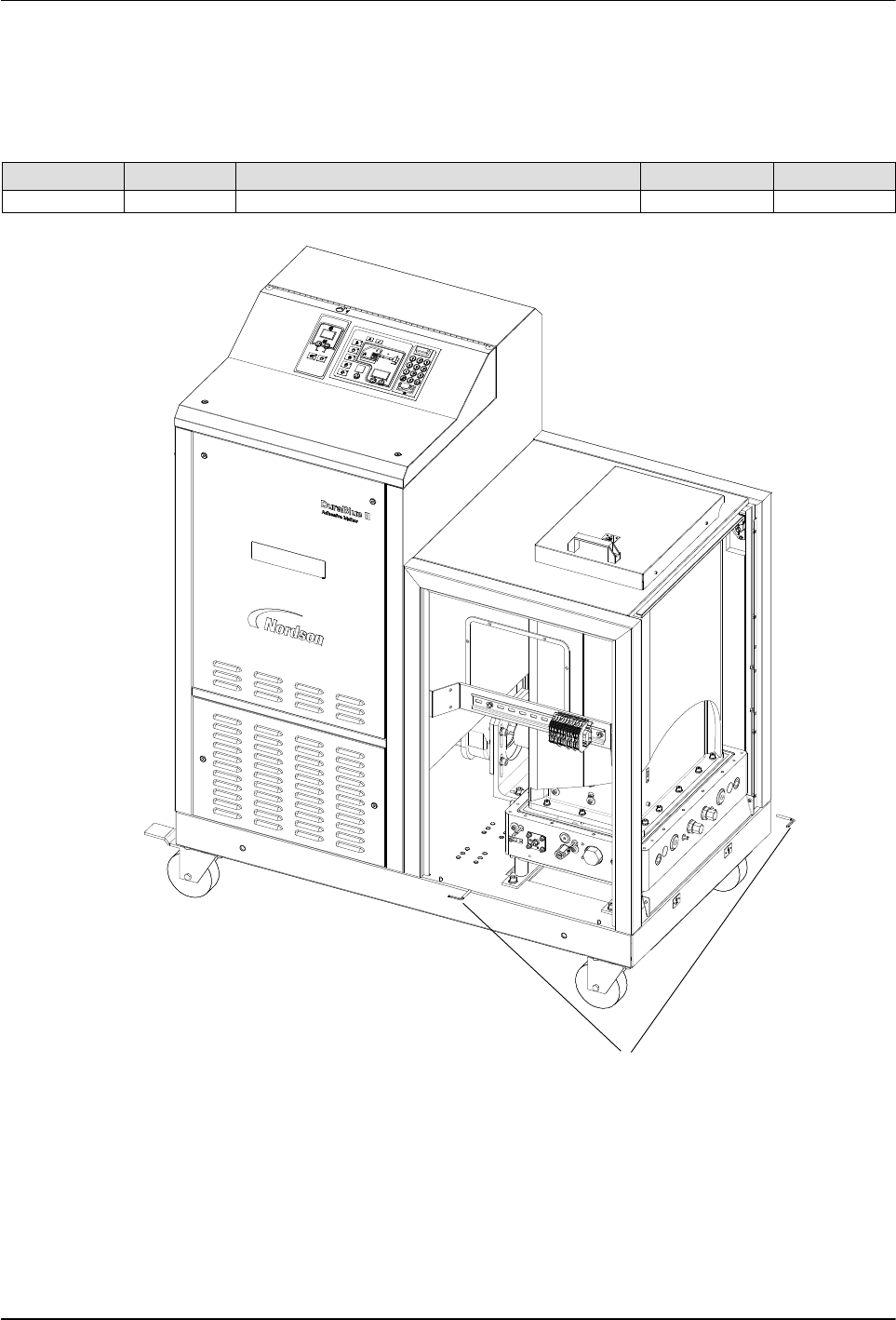

Parts
7-23
Part 1126931_01
2018 Nordson Corporation
This page intentionally left blank.
Parts
7-24
Part 1126931_01
2018 Nordson Corporation
Control Panel Assembly
See Figure 7‐15.
Item Part Description Quantity Note
1 7411737 KIT,SERVICE,CPU, BOARD, EZ 1
2 7411750 PCA, MOTOR, ALTABLUE 1
3 1025743 MEMBRANE PANEL, W/KEYPAD, FINAL, EZ 1
4 1085183 MEMBRANE PANEL MOTOR CONTROL,STD ALTA 1
5 1017947 SWITCH,ROCKER,SPST,250V,16A,GOLD 1
6 1029938 CABLE ASSY, RIBBON, SERIAL PORT, 9‐POS, DURA 1
7 - - - - - - - CAP,D‐SHELL CONNECTOR,9 PIN,FEM 1
8 - - - - - - - THRDSPCRMM,MALE/FEM,SS,HEX,M3,8MMLG 7
9 - - - - - - - WASHER,LK,M,INT,M3,STL,ZN 7
10 - - - - - - - CONNHDWE,SCREWLOCK,#4‐40,D‐SUB
CONNECTOR
2
REAR VIEW
09
02
01
08
06
04
03
10
07
05

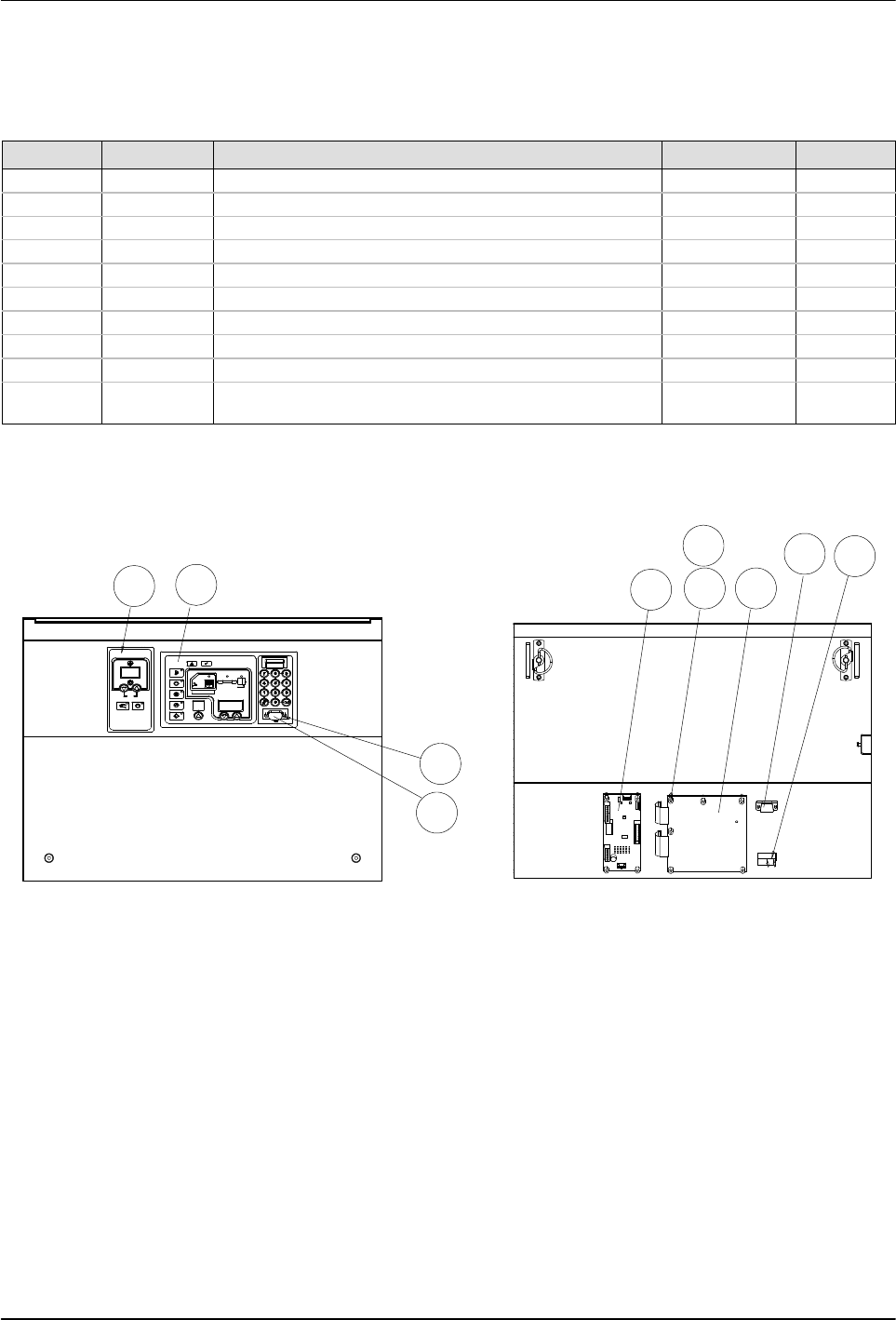

Figure 7‐15 Control panel assembly parts
