Parts
7-24
Part 1126931_01
2018 Nordson Corporation
Control Panel Assembly
See Figure 7‐15.
Item Part Description Quantity Note
1 7411737 KIT,SERVICE,CPU, BOARD, EZ 1
2 7411750 PCA, MOTOR, ALTABLUE 1
3 1025743 MEMBRANE PANEL, W/KEYPAD, FINAL, EZ 1
4 1085183 MEMBRANE PANEL MOTOR CONTROL,STD ALTA 1
5 1017947 SWITCH,ROCKER,SPST,250V,16A,GOLD 1
6 1029938 CABLE ASSY, RIBBON, SERIAL PORT, 9‐POS, DURA 1
7 - - - - - - - CAP,D‐SHELL CONNECTOR,9 PIN,FEM 1
8 - - - - - - - THRDSPCRMM,MALE/FEM,SS,HEX,M3,8MMLG 7
9 - - - - - - - WASHER,LK,M,INT,M3,STL,ZN 7
10 - - - - - - - CONNHDWE,SCREWLOCK,#4‐40,D‐SUB
CONNECTOR
2
REAR VIEW
09
02
01
08
06
04
03
10
07
05
Figure 7‐15 Control panel assembly parts
Parts
7-25
Part 1126931_01
2018 Nordson Corporation
Sensor Assembly
See Figure 7‐16. The sensors on your melter may be one of two types:
120‐ohm nickel or 100‐ohm platinum.
Item Part Description Quantity Note
01 7411749 HARNESS RTD & THERMOSTAT,EZ 1
01
Figure 7‐16 Sensor assembly parts
Parts
7-26
Part 1126931_01
2018 Nordson Corporation

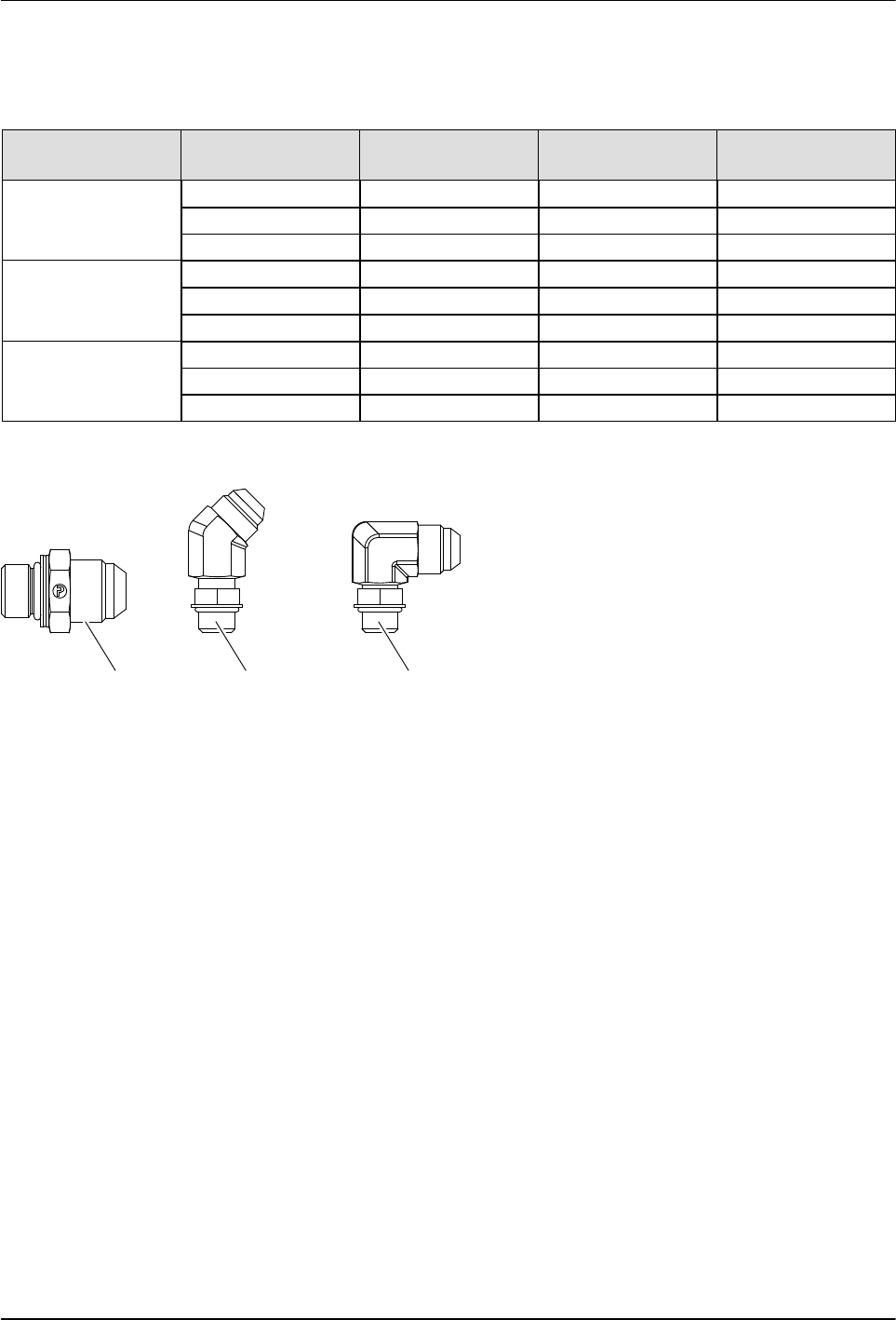

Optional Fittings
See Figure 7‐17. These fittings can be used at the melter end of a hose.
Hose Size
Fitting
PartNumber
Fitting Type
Fitting Size,
Melter Side
Fitting Size,
HoseSide
8‐mm
7400333 Straight M16 x 1.5
9
/
16
‐18 JIC
7400337 45‐degree M16 x 1.5
9
/
16
‐18 JIC
7400335 90‐degree M16 x 1.5
9
/
16
‐18 JIC
12‐mm
7401279 Straight M16 x 1.5
3
/
4
‐16 JIC
7401278 45‐degree M16 x 1.5
3
/
4
‐16 JIC
7401277 90‐degree M16 x 1.5
3
/
4
‐16 JIC
16‐mm (see Note)
7400334 Straight M22 x 1.5 1
1
/
16
JIC
7400338 45‐degree M22 x 1.5 1
1
/
16
JIC
7400336 90‐degree M22 x 1.5 1
1
/
16
JIC
1 2 3
Figure 7‐17 Typical non‐swivel fittings
1. Straight fitting 2. 45‐degree fitting 3. 90‐degree fitting
