Review Parameter and Set‐point Temperature Changes
The melter stores in a change history log, a record of the last ten changes
that were made to either operating parameters or set‐point temperatures.
Since the log only stores ten changes, old log entries are overwritten
beginning with the first log entry, by the eleventh and following log entries.
To review the change history log
1. Press the Setup key.
Operating parameter 1 flashes in the left display.
2. Press the left‐display scroll key to change the display to parameter 3 (the
change history log).
The following occurs:
If the last change was to an editable parameter, all of the component
key LEDs remain off.
or
If the last change was to a set‐point temperature, the LED on the
associated component key(s) turns on.
and
The right display indicates the four‐digit log entry associated with the
last change that was made.
Table 3‐5 provides the meaning, from left to right, of each digit in the
log entry. Following the table are two example log entries.
3. Press a right‐display scroll key to review each of the remaining nine log
entries. Each press of a scroll key displays a progressively older log
entry.
4. Press the Setup key to return to the automatic scan mode.
Installation
3-24
Part 1126931_01
2018 Nordson Corporation
Review Parameter and Set‐point Temperature Changes (contd)
Table 3‐5 Change History Log
First Digit
Second
Digit
Third and Fourth Digits
P (Parameter)
-
Indicates the number of the parameter that was changed
S (Set‐point)
Are used in conjunction with the LEDs on the component keys to indicate the
location and method of a set‐point temperature change.
When this LED is
on..
And the Fourth
Digit Indicates..
The change was
to..
And the Method
of Change was..
Tank Key 1 The tank Individual
Hose Key 1– 6 A single hose Individual
Applicator Key 1– 6
A single
applicator
Individual
All Keys 0 All components Global
Hose Key 0 All hoses
Global‐by‐
component
Applicator Key 0 All applicators
Global‐by‐
component
Change History Log Examples
Example 1:
Parameter 4 (ready delay) was changed.
Example 2:
If the LED on the applicator key is on, then this display would
indicate that the global‐by‐component method was used to change the
temperature of the applicators.
Installation
3-25
Part 1126931_01
2018 Nordson Corporation

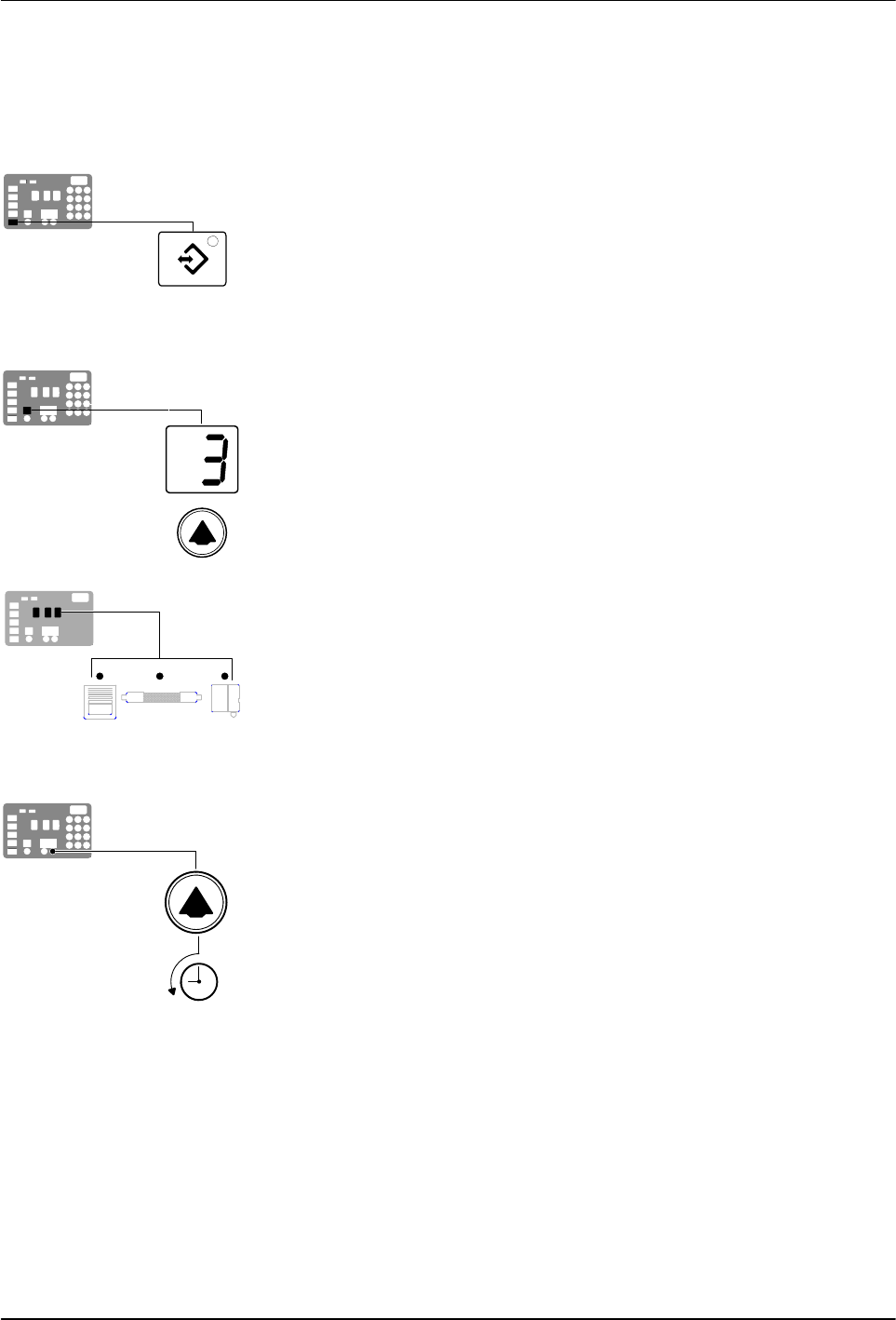

Unused log entries in the change history log are
indicated by “P‐_” in the right display.
To view how many heater hours have elapsed
since a specific change (displayed) was made,
simultaneously press both of the right‐display
scroll keys.
Setting Up Inputs/Outputs
DuraBlue II adhesive melters are equipped with four standard inputs. Each
input is customer‐wired to the melter and then set up to provide one of the
following control options:
Place the melter into the standby mode
Turn the heaters on and off
Enable or disable a specific hose or applicator
Enable the motor
The input contacts use a constant 10 to 30 VDC signal voltage. The inputs
are not polarity sensitive.
WARNING! The operator can override the melter inputs by using the control
panel function keys. Ensure that the control logic for any external device that
sends an input signal to the melter is programmed to prevent the creation of
an unsafe condition in the event that the operator overrides an external input
to the melter.
The melter is also equipped with three user‐configurable outputs. Outputs
are used to communicate with user‐supplied production equipment or control
hardware, such as a programmable logic controller.
Each output is customer‐wired and then set up in the melter's firmware to
provide one of the following outputs:
The melter is ready
The melter is ready and the motor is enabled
A fault has occurred
The hot melt level is low (only if the optional level switch is installed)
The service LED is on
All outputs contacts are rated at 240 VAC 2 A or 30 VDC 2 A. All contacts are
normally open when the melter is turned off.
