9.2 Tape Feeder not correctly locked
Remedy
: Remove any chip component or foreign substance such as debris attached on the
feeder base and completely clean the feeder base.
If the tape feeder is used while it has not been locked, it might cause damage to the machine or pick-
up error.
Attach the tape feeder securely to the feeder base.
Cause : Chip component or foreign substances including debris have been
attached onto the feeder base.
Note
9.2 Tape Feeder not correctly locked
OM-1833
9-3
1504-001
9.3 Tape Feed not correctly performed
NG
OK

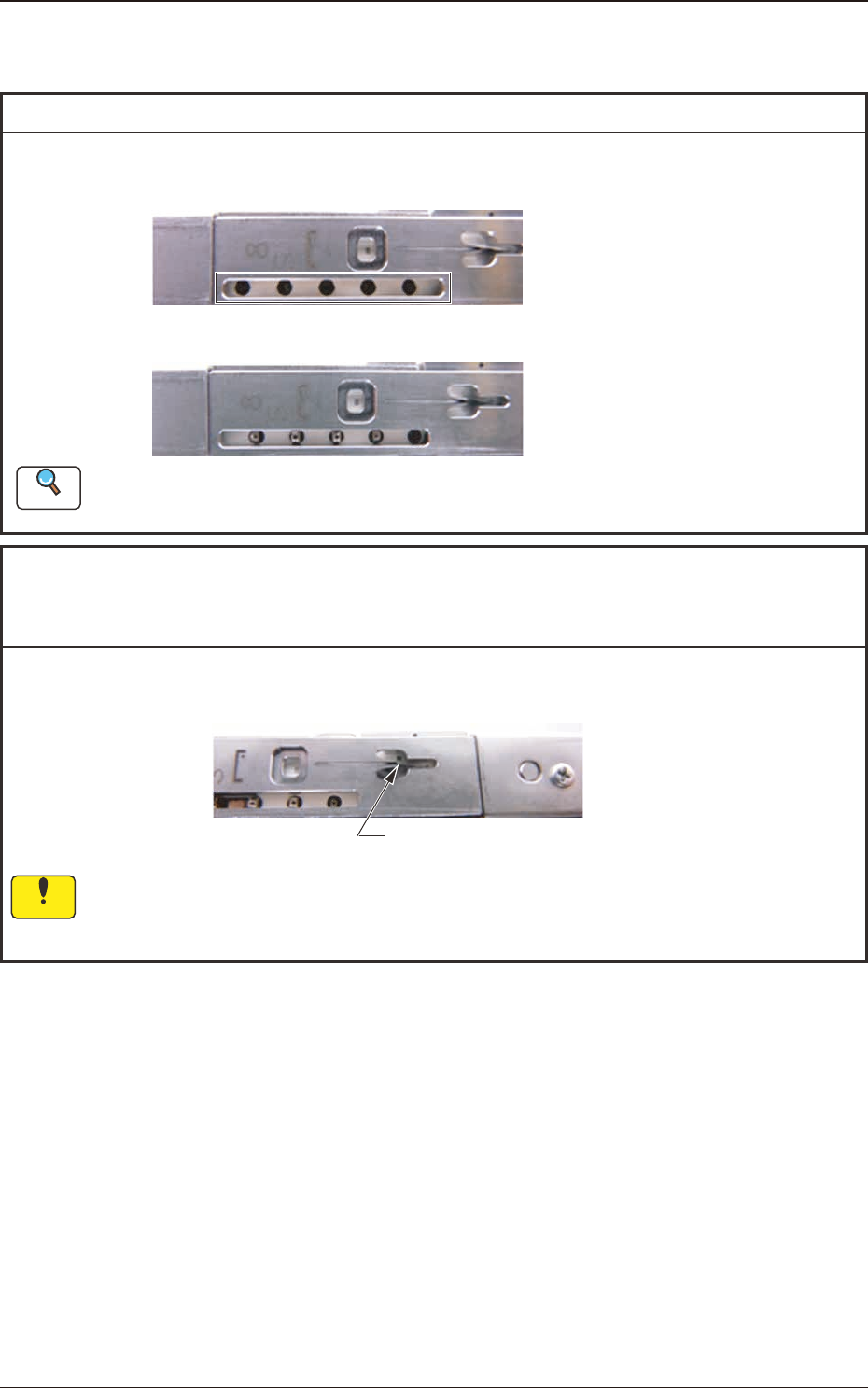

The sprocket gears do not engage with the perforations.
Remedy
: Unload the tape and process the tape end correctly, and then load it again.
Cause : Carrier Tape Sprocket Hole not engaged with the sprocket teeth.
9.3 Tape Feed not correctly performed
Refer to "2.4 Tape End Processing Procedure" for the tape end processing procedure.
Keep them clean.
Reference

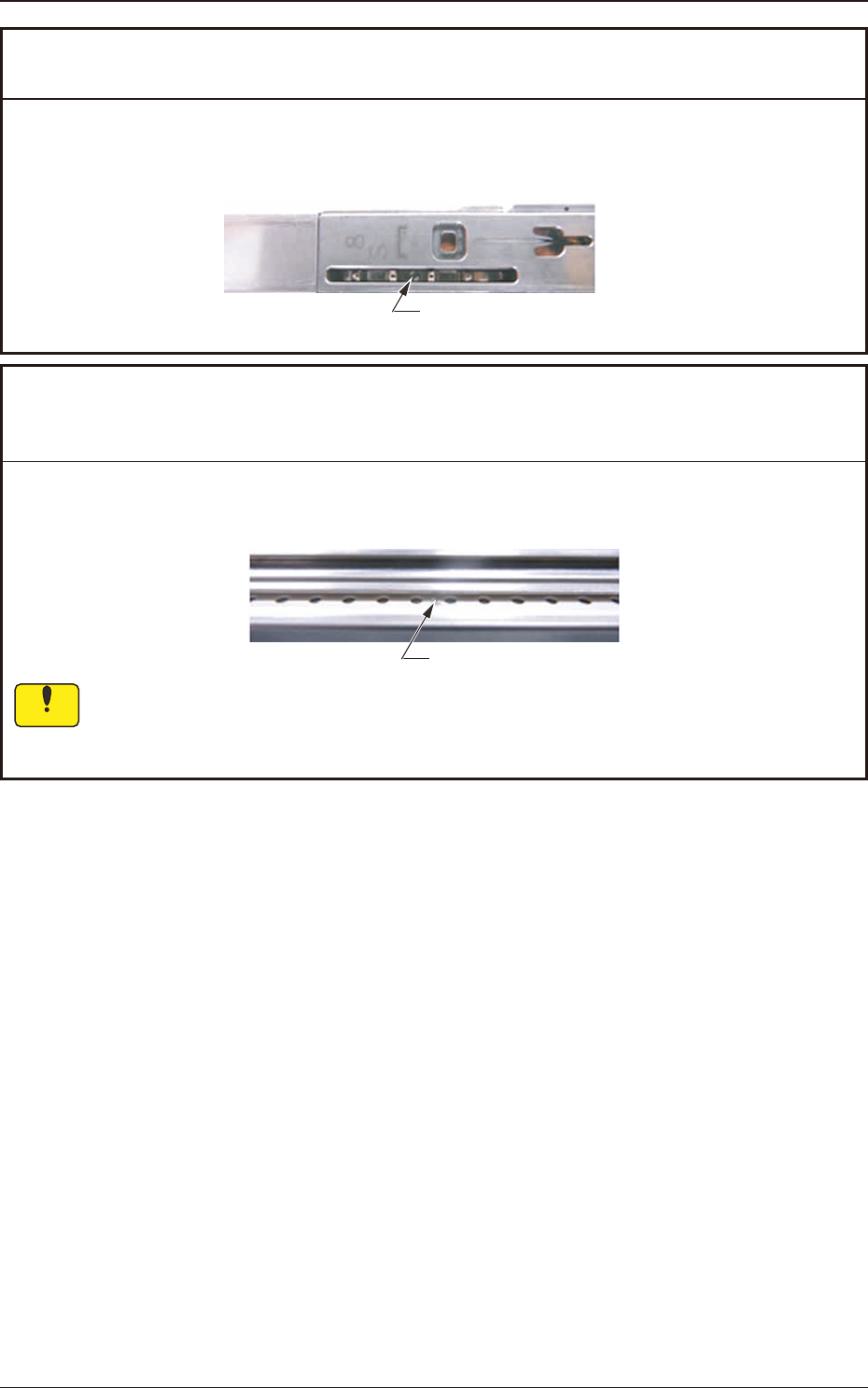

Remedy
: Remove any chip component or foreign substance such as debris attached onto the
suppressor and completely clean the suppressor.
Notice
If the taping component is mounted with any foreign substance attached, the suppressor
might be deformed or a pick-up error occur.
Therefore, clean it.
Cause : Chip component or foreign substances including debris have been
attached inside the suppressor and the suppressor does not securely
hold the tape.
Foreign Substance
OM-1833
9-4
1504-001
Remedy
: Remove any chip component or foreign substance such as debris attached onto the
sprocket and completely clean the sprocket.
Cause : Chip component or foreign substances including debris have been
attached onto the sprocket and the sprocket does not rotate.
Remedy
: Remove any chip component or foreign substance such as debris attached on the chute
and completely clean the surface of the chute.
Foreign Substance
If the taping component is mounted with any foreign substance attached, the suppressor
might be deformed or a pick-up error occur.
Therefore, clean it.
Cause : Because an alien substance such as a chip component or debris has
been attached to the sprocket, the sprocket cannot rotate.
9.3 Tape Feed not correctly performed
Foreign Substance
Notice
OM-1833
9-5
