Remedy

: Make sure that there is no twist in the tape or that it’s not been caught in the reel, and

then, load the tape again.

In the case that the tape perforations are not aligned, cut the tape end and load the tape

again.

Tape Twist

Cause : The loading operation is stopped in the course of the loading operation.

9.4 Cover Tape Take-up Action not performed

Remedy

: Make sure that the tape is not left in the cover tape processing unit. If the tape is left,

remove it and load the tape again.

Cause : The loading operation is not available at all.

Tape Detection Sensor

OM-1833

9-7

1504-001

OM-1833

9-8

1504-001

10. Other

10.1 Accessories for SL Feeders (optional)

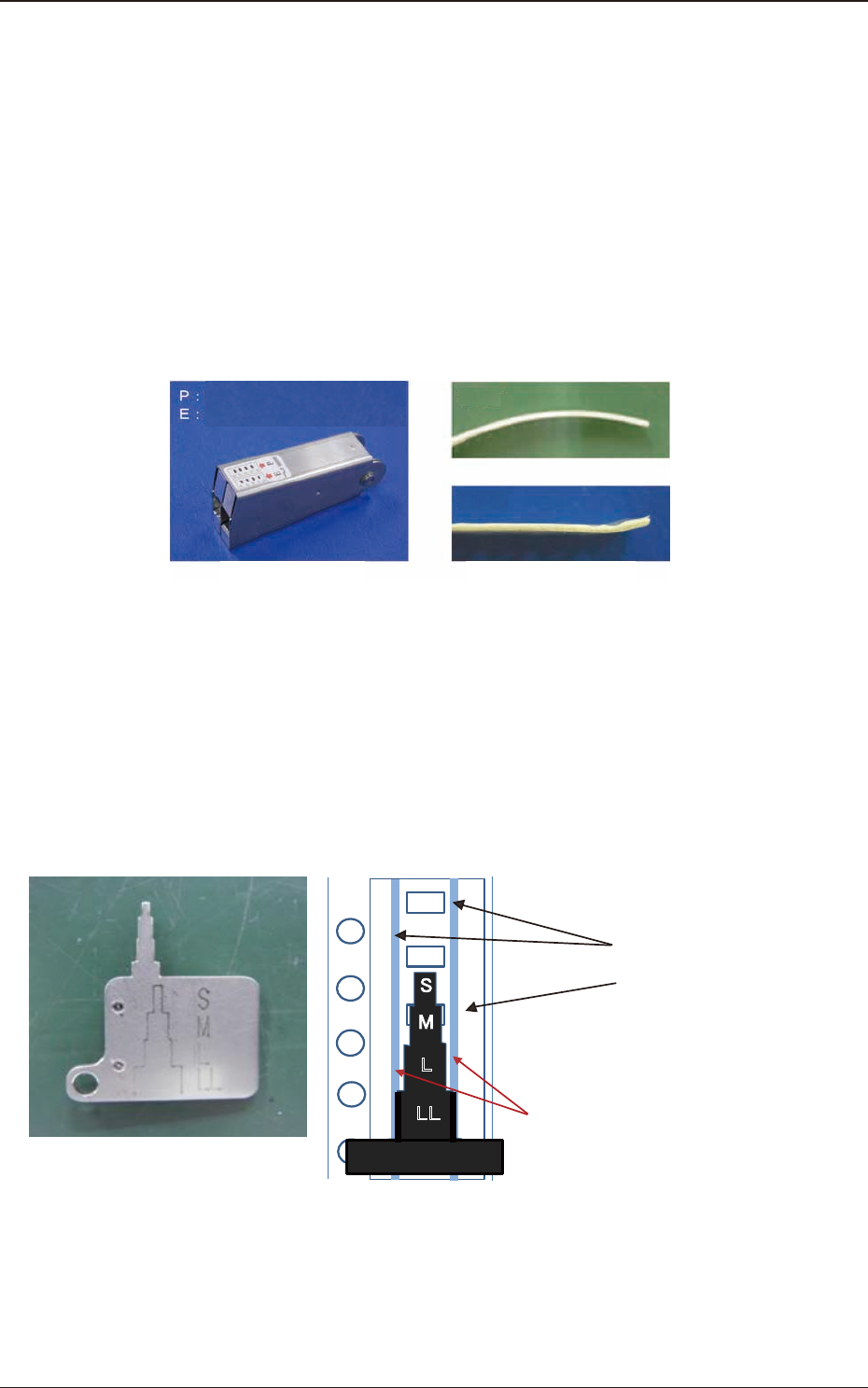

(1) Tape Leveler SL-TL100

This is a dedicated jig for straightening the curvature of a tape tip so that

cover tape processing can occur smoothly.

It has two inputs, 'E' and 'P' for forming the tape start.

(If the tape tip is strongly curved, cover tape processing might not occur

correctly during automatic loading.)

Before correction

Paper

Emboss

After correction

Tape Leveler

Paper tape after malformation is corrected

Fig. J1

(2) Cover Tape Width Checker SL-CW100

This is the JIG for checking the distance between the fused bands of Cover

Tape, and it will be useful to select a proper model of the SL Feeders and to

determine if the model selected is applicale to the Taping Components.

Fused bands

Cover tape

Overview if Cover Tape Width Checker

In case of the following image,

select the (L) type of the SL feeder.

Select the part of the checker (S/M/L/LL)

that satisfies the following two condi-

tions.

● A pocket is hidden by the part of the

checker.

● There is clearance between the left

and right fused bands (fused width)

and the selected part of the checker.

Fig. J2
