1504-001
10.1 Accessories for SL Feeders (optional)
Note
Here we indicate the number of multi-reel stockers that can be loaded in one
cart.
For the SIGMA-G5 and SIGMA-G5S, it is not possible to fully load the cart
with multi-reel stockers.
Table J1
No.
Applicable
machine
Model
Maximum
loadable
number
Number of
small reels set-
table
Remarks
1 SIGMA-G5 SL-MR200 13 104 104 = 4 Lane × 2 Reel × 13 Stocker
2 SIGMA-F8
SL-MR800
10 80 80 = 4 Lane × 2 Reel × 10 Stocker
3 SIGMA-G5S 13 104 104 = 4 Lane × 2 Reel × 13 Stocker
Note

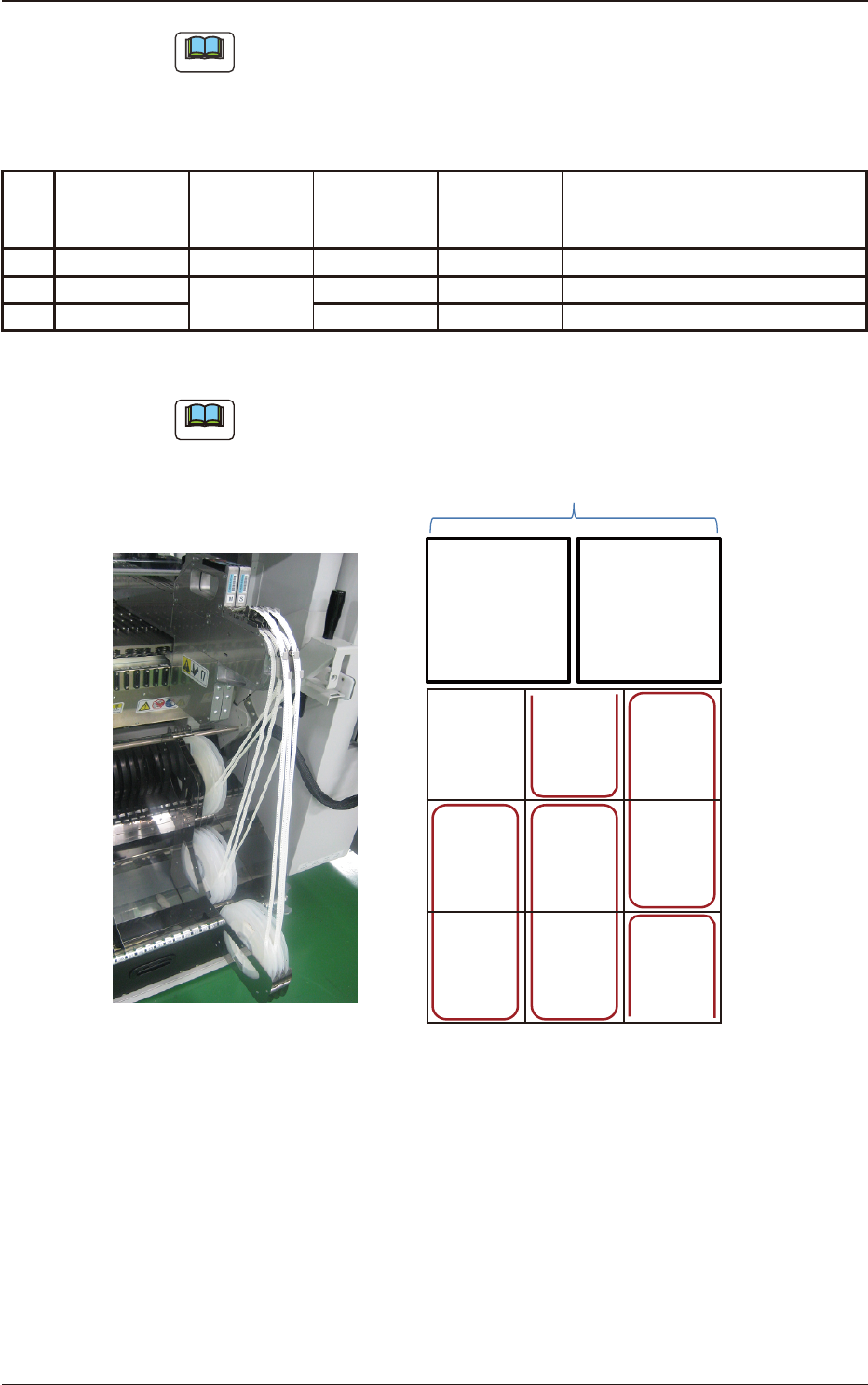

Example of storing Foregoing and After tape reels (Recommendation)
A total of eight small reels can be set in a width of two feeder slots.
AB
SL Feeder
#1
A
B
SL Feeder
#2
1 stoker
2 feeders
Feeder #1
Lane A
After tape
Feeder #1
Lane A
Foregoing
tape
Feeder #1
Lane B
Foregoing
tape
Feeder #1
Lane B
After tape
Feeder #2
Lane A
After tape
Feeder #2
Lane A
Foregoing
tape
Feeder #2
Lane B
After tape
Feeder #2
Lane B
Foregoing
tape
Empty
Fig. J5
OM-1833
10-3
1504-001
10.2 Applicable machines (units) and software upgrades
10.2 Applicable machines (units) and software upgrades
Machines (units) compatible with SL feeders: SIGMA-G5, SIGMA-F8, SIGMA-
G5S
In order to use SL feeders with the above compatible machines, the machine unit
itself must be modied, and the machine unit's software and the NT software must
be upgraded.
Special specications for modied machine units
In order to use the SL feeders, the unit (F8/G5S: cutter guide) and cart (G5: cutter
guide, F8/G5S: feeder cover) require special design modications.
Table J2
No.
Applicable
machine
Unit
Special-order
number
Remarks
1 SIGMA-G5 Cart GS-S198-01 Improved maintainability
2
SIGMA-F8
Unit retrot GS-S199-05
3 Cart GS-S199-06
4
SIGMA-G5S
Unit retrot GS-S199-01
Units shipped before
April 2014
5
Unit (tray)
retrot
GS-S199-02
Units shipped before
April 2014
6 Cart GS-S199-03
7 Cart (tray) GS-S199-04
OM-1833
10-4
