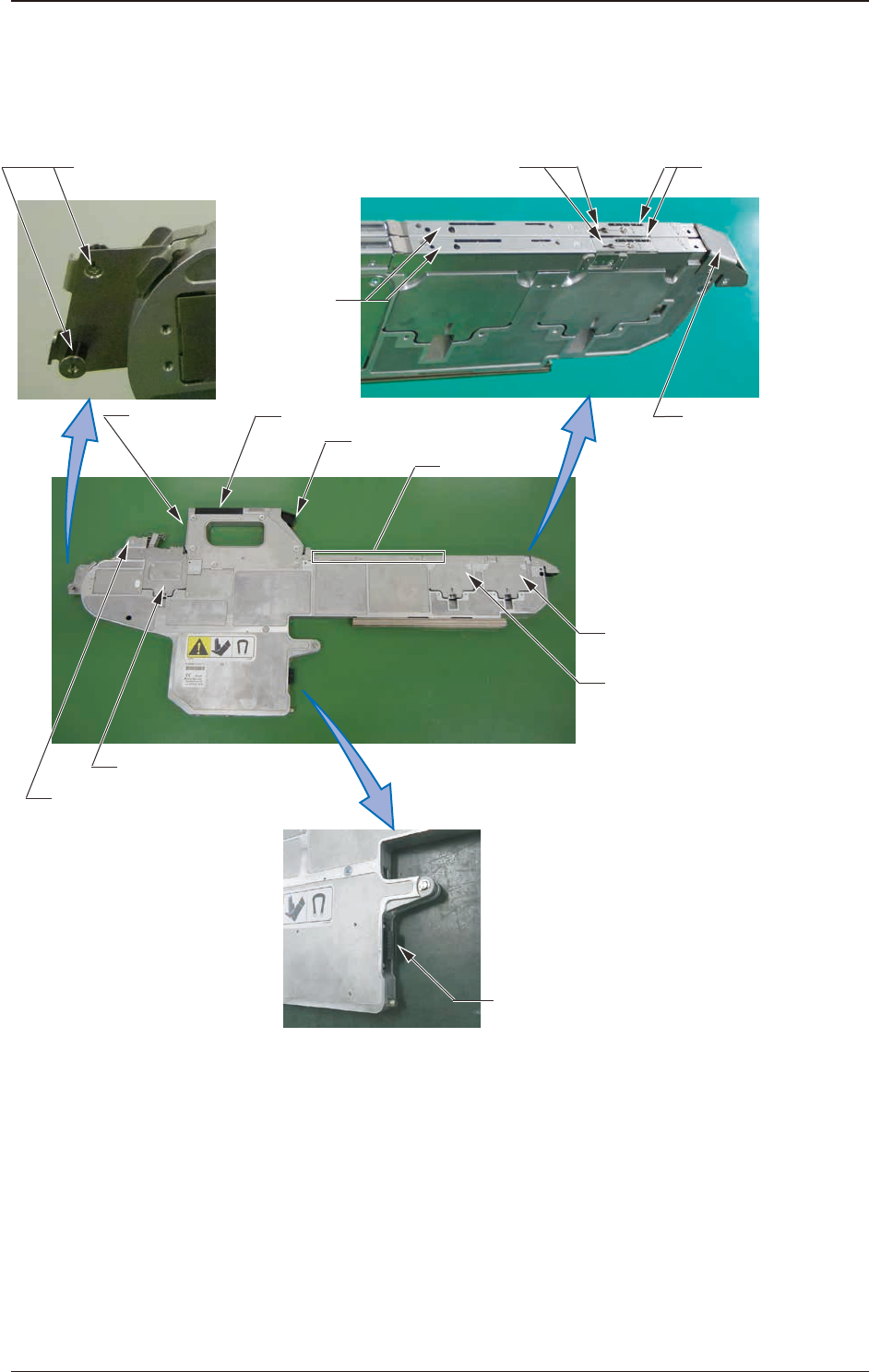

1.5 Name and Function of Each Section
It is described in SL-48085 (8 mm Dual Tape Feeder)
[1] Operation Panel
[3] Clamp Release Lever
[5] Chute
[7] Sprocket (2)
[6] Sprocket (1)
[14] Connector
[13] Tape Outlet Guide
(At the succeeding tape set-up)
[9] Suppressor
[10] Cover Tape
Processing Section
[12] Tape Outlet Guide
[11] Component
Pick-up Section
[2] Barcode
Label
[4] Loading Suppressor
[8] Sprocket (3)
Fig. A23
1.5 Name and Function of Each Section
OM-1833
1-13
1504-001
[1] Operation Panel
This switch panel is used to display tape feeder status or perform the manual
operation.
Reference
Refer to "4. Operation Panel" for details.
[2] Barcode Label
Barcodes are printed for tape feeder model, serial No. and ACV system.
[3] Clamp Release Lever
This button is pressed when the tape feeder is removed from the bank feeder
change cart.
[4] Loading Suppressor
When the tape is to be loaded automatically, it is used to push the tape
against the chute to maintain a stable tape feeding.
This unit is attached on both the left and right lanes.
When a tape to be setup automatically is inserted, slide the loading
suppressor in this side to expand the tape insertion opening. After the tape is
inserted to the specied position, slide it with the loading suppressor pressed
down in the front direction.
[5] Chute
This is the tape traveling surface.
Make sure that there is no alien substance (chip component or debris)
attached on it.
[6] Sprocket (1)
The sprocket teeth are engaged with the perforations on the tape to feed the
tape according to the feeding pitch.
[7] Sprocket (2)
This sprocket carries the tape end into the cover tape processing section in
the tape loading operation.
It is driven using the servo-motor common to sprocket (1), and controls
acceleration, deceleration or speed control of tape feeding.
[8] Sprocket (3)
This sprocket carries the tape inserted into the guide opening into the feeder.
The tooth shape of this sprocket is different from those of the sprocket (1) or
(2) so as not to damage the perforations on the tape. It is driven using the DC
motor.
1.5 Name and Function of Each Section
OM-1833
1-14
1504-001
[9] Suppressor
This suppressor presses the tape against the chute to perform stable tape
feeding and control any component irregular movement
[10] Cover Tape Processing Section
This cover tape processing section is used to enable the component pick-up
in the pick-up section.
[11] Component Pick-up Section
The component is picked up from the tape through this hole. The nozzle is
moved down onto this position to pick up the component.
[12] Tape Outlet Guide
This guide discharges the tape.
[13] Tape Outlet Guide
(At the succeeding tape set-up)
When the succeeding tape for the component reload is to be set, the traveling
route for the preceding tape changes to this position.
[14] Connector
This connector conducts electricity and electrical signals.
