2.2 Tape Removal Procedure

(3) Draw the tape out slowly to this side by hand during the unloading operation.

Pull it out slowly.

Fig. B12

Note

Because sufcient reverse rotation time of the tape feeding motor (servo-

motor) is secured to enable the tape collection, pressing any operation

switch button can complete the unloading operation after the tape has been

collected.

Notice

When the teeth of sprocket (1) and sprocket (2) are engaged with

the perforations on the tape, do not pull the tape forcibly.

Doing so might deform the perforations and the tape cannot be

setup in the correct feeding position when the tape is attached

again.

(4) When the tape removal operation has been completed, slide the loading

suppressor forward to return it to the specied position.

Tape setup completed

Fig. B13

OM-1833

2-6

1504-001

2.3 Component Reload Tape Attachment Procedure

Procedure

(1) Slide the loading suppressor to this side on the lane where the component

reload tape is to be set up.

Slide it to this side.

Fig. B14

(2) Lift the loading suppressor to remove it.

Fig. B15

(3) Set the preceding tape on the loading suppressor and change the route of the

preceding tape to the upper side.

Fig. B16

OM-1833

2-7

1504-001

2.3 Component Reload Tape Attachment Procedure

Change the route

of the preceding

tape to the upper side.

Fig. B17

(4) Insert the succeeding component reload tape.

Fig. B18

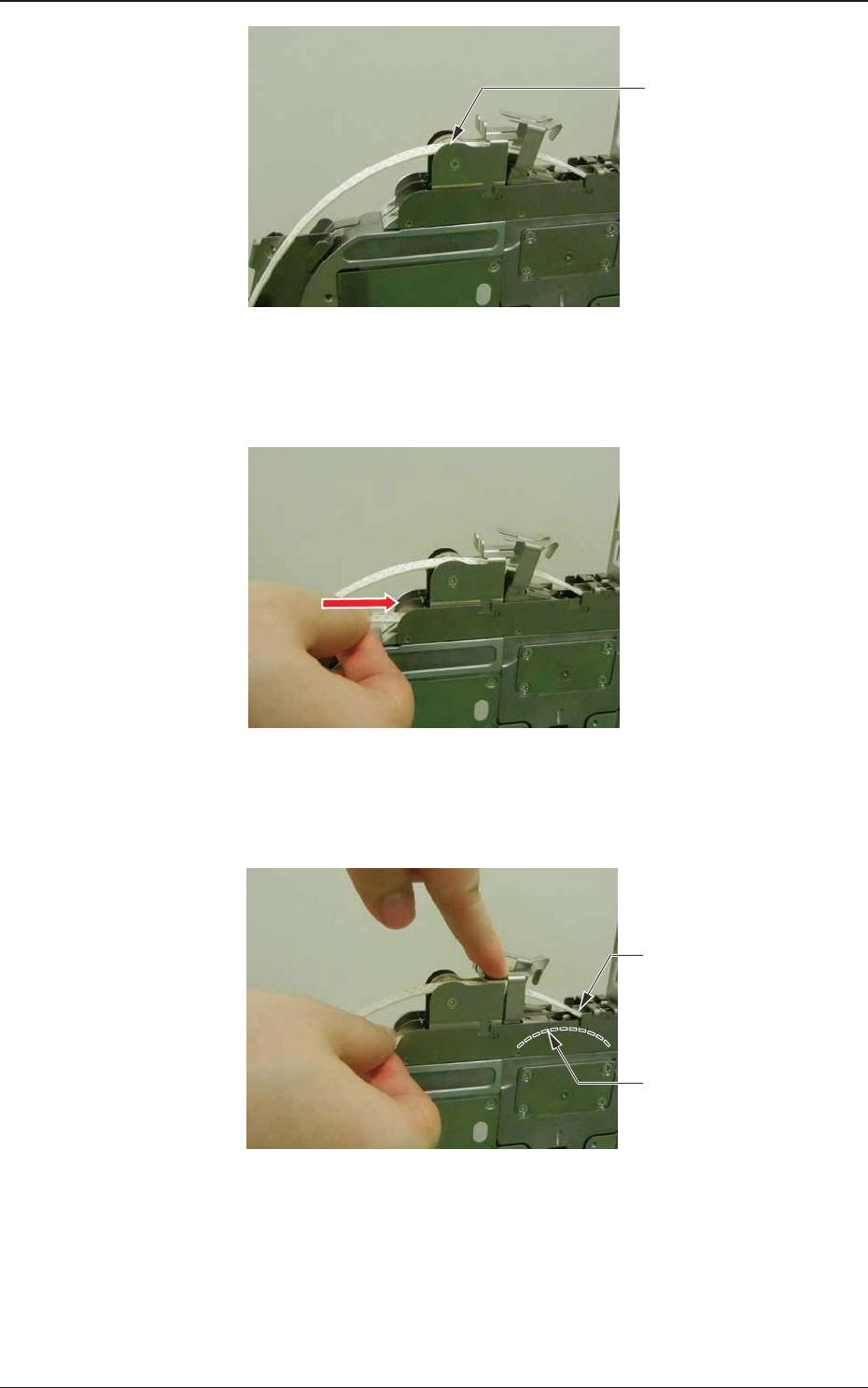

(5) Insert it to a position so that the tape end contacts the sprocket (3) gear.

Insert the tape end

to this position.

Sprocket (3)

Fig. B19

OM-1833

2-8
