4. Operation Panel
On the operation panel, the following displays and operations are available.
•
Display of the set pitch
•
I/O status display for the sensor, etc.
•
Display of the selected lane
•
Subject Lane Selection
•
Tape Feeding
•
Feed Pitch Setting
•
Display of the error codes
•
Tape returning operation
•
Tape Loading Operation
•
Forcible Feeding Operation
•
Tape Unloading Operation

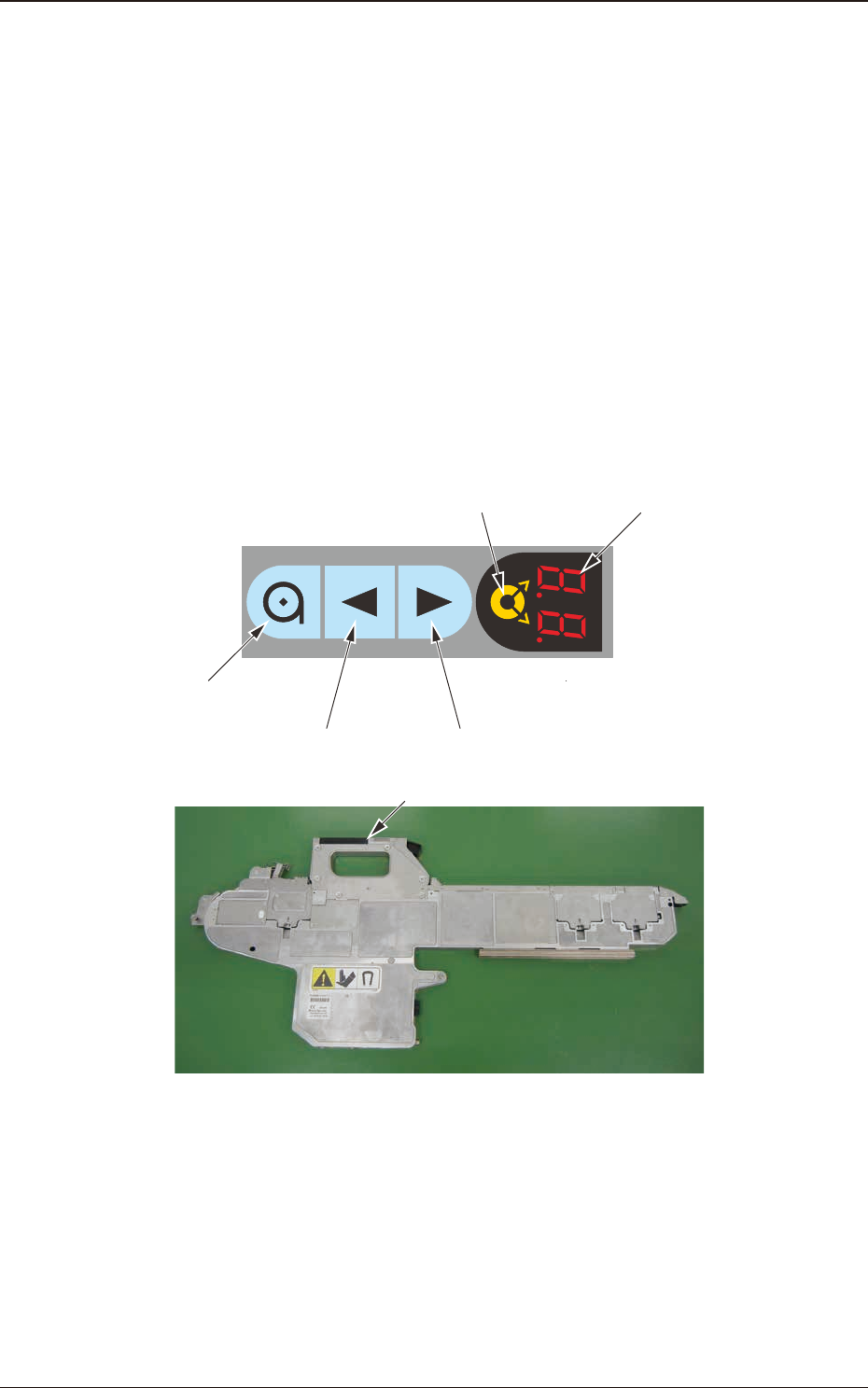

4.1 Name and Function of Each Section on Operation Panel
The tape feeder operation buttons and indicators are arranged integrally on the
operation panel.
Digital IndicatorLane Selection Button
Forward ButtonBackward Button
Loading Button
Operation Panel
Fig. D1
1504-001
4. Operation Panel
OM-1833
4-1
1504-001

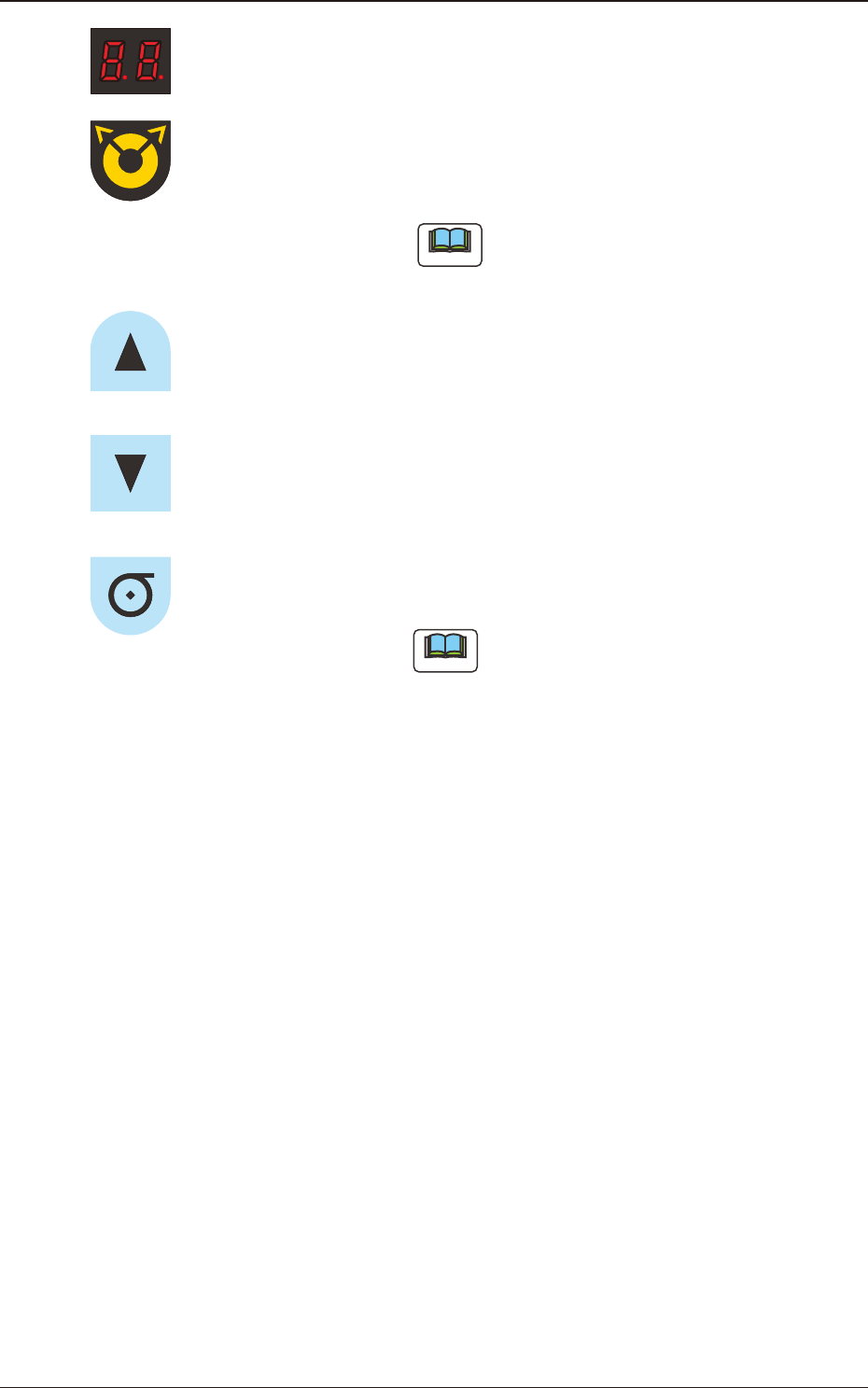

Digital Indicator
: Shows the set pitch, selected lane, error code or
splicing guide.
Lane Selection Button
: Used when the lane is selected.
Each pressing on this button changes the lane to the
left or right.
Note
Use the return button together with it in the
tape returning operation.
Forward Button
: Used for tape feeding operation and feed pitch data
change.
Backward Button
: Used for tape returning operation and feed pitch
data change.
Loading Button
: This button is used when the tape loading operation
is performed.
Note
In the unloading operation, the return
button is used together with this button.
4.1 Name and Function of Each Section on Operation Panel
OM-1833
4-2

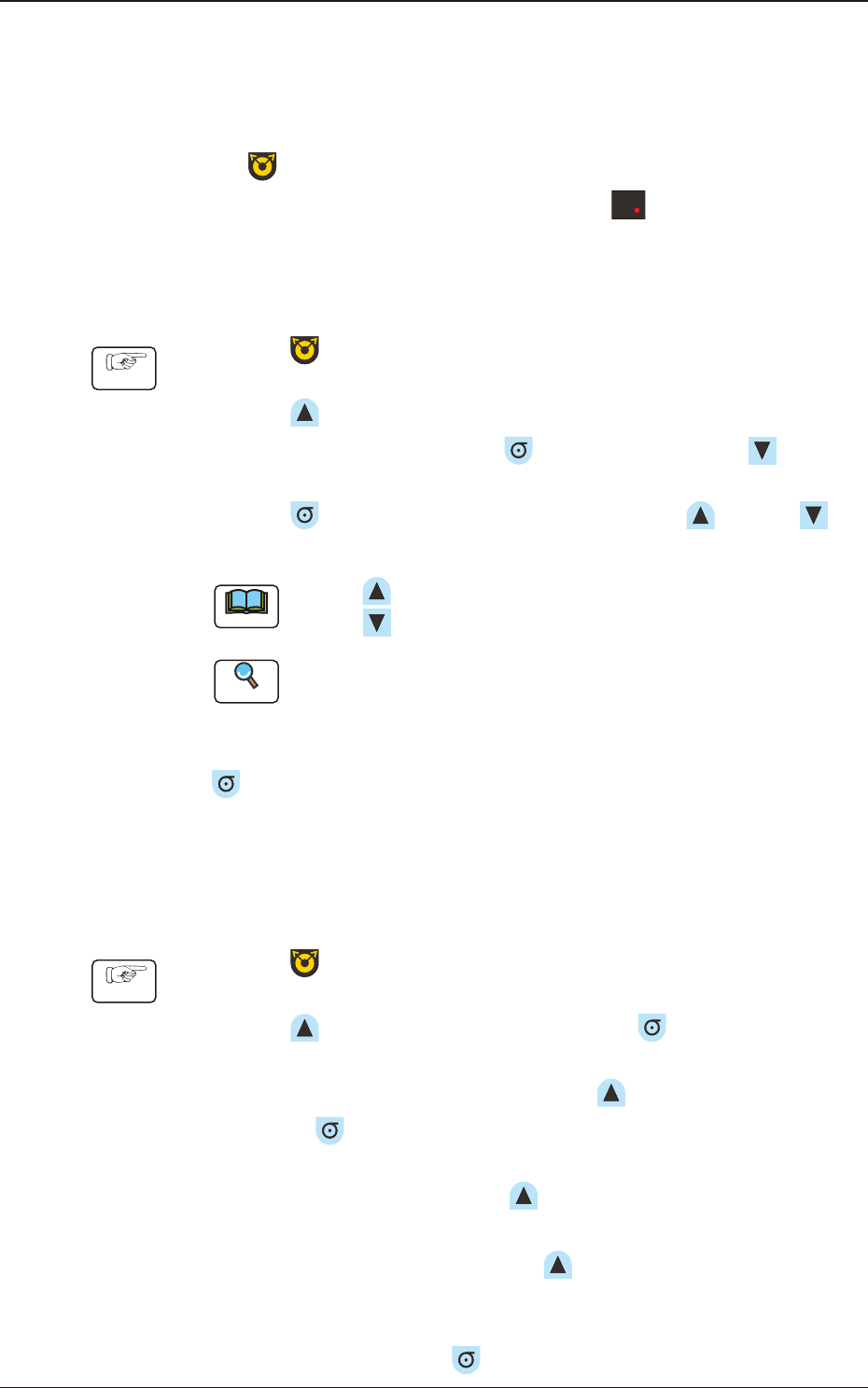

4.2 Operation of Operation Panel
4.2.1 Subject Lane Selection
Press the button to select the lane.
Each pressing of this button moves the dot indication
to the left or right in the
indicator.
4.2.2 Feed Pitch Selection
Procedure
(1) Press the button to select the lane.
(2) Press the
button for 2 seconds or more to ash the display section.
When the display ashes, press the
button and then press the button.
(3) Press the
button and keeping this condition, press the button or
button to set the feed pitch.
Note
When the button is pressed, the pitch changes bigger one.
When the button is pressed, the pitch changes smaller one.
Reference
Refer to "1.3 Types of Tape Feeders " for the pitch amount.
(4) Change the pitch until the feed pitch to be set is reached, and then, press the
button.
The indication stops ashing and the indicator continuously stays on, when
the pitch is set.
4.2.3 Set Pitch Feeding Operation
Procedure
(1) Press the button to select the lane.
(2) Press the
button and at the same time, press the button.
(3) Within 2 seconds, release your nger from the
button only and keep
pressing the
button.
(4) Using the ON/OFF operation of the
button, execute the 1 pitch feed
operation.
Repeating the ON/OFF operation of the
button can continue the feed
operation.
(5) Release your nger from the
button to end the operation.
