5.4.2 Suppressor Section Cover Tape Processing Section Every Week Cleaning : Remove debris and dust using the air gun. Remove any attachment using a rag soaked in alcohol or cotton applicator. Every Three Months Cleaning…
5.4 Maintenance Spots
5.4.1 Description of Maintenance in Each Section
Here the maintenance cycle for each section of the tape feeder.
SL-48085 is given as the example in the description of the procedure.
This procedure applies to almost all the tape feeders, except for those with special
descriptions.

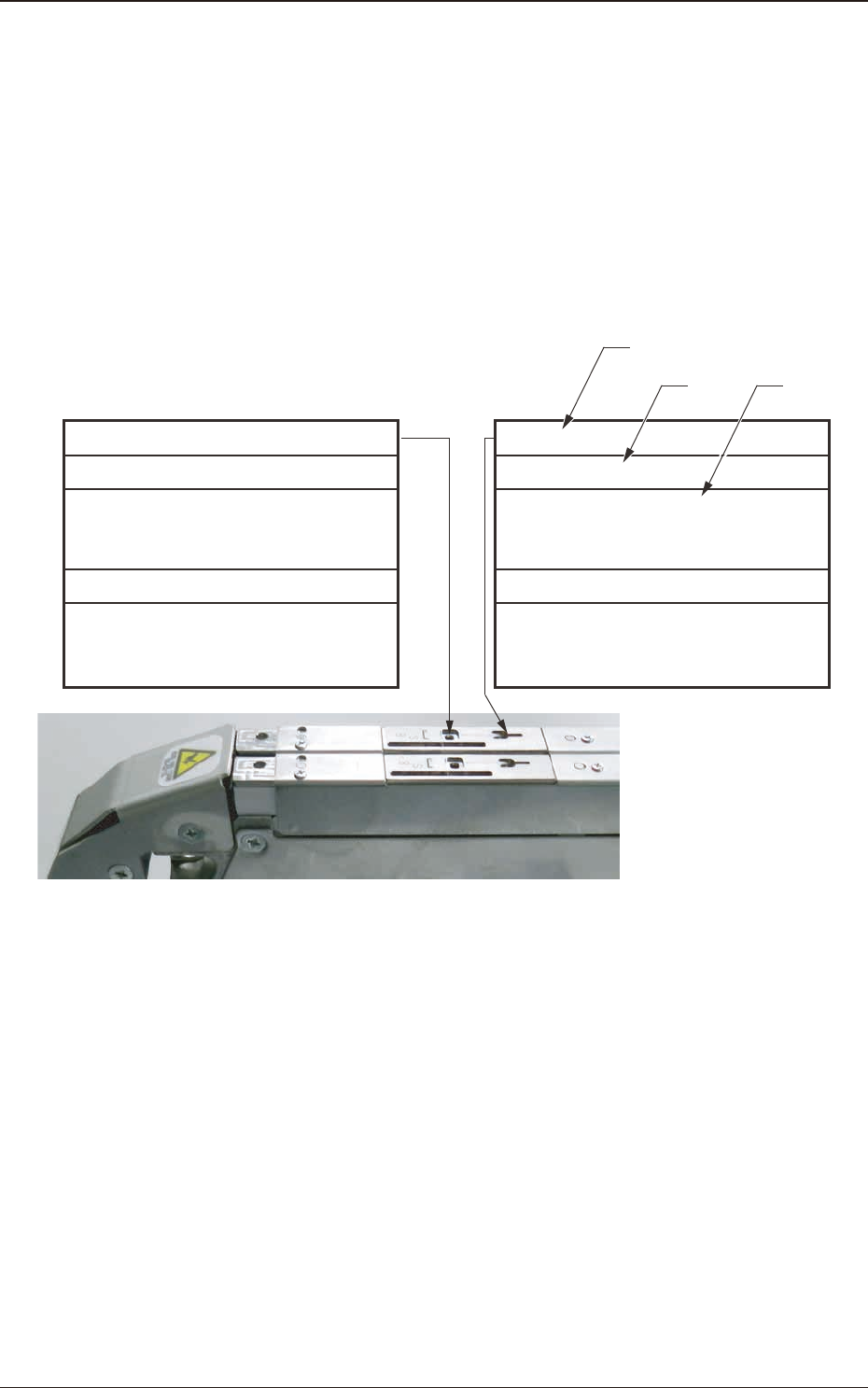

How to Locate the Check, Cleaning, Lubrication and Adjustment Spots
Cover Tape Processing Section
Every Week Cleaning :
Remove debris and dust using the air gun.
[1]
[2] [3]
Remove any attachment using a rag
soaked in alcohol or cotton applicator.
Every Three Months Cleaning :
Component Pick-up Section
Every Week Cleaning :
Remove debris and dust using the air gun.
Remove any attachment using a rag
soaked in alcohol or cotton applicator.
Every Three Months Cleaning :
Fig. E1
[1]
: Maintenance Spot
[2]
: Maintenance Cycle and Contents
[3]
: Details of Maintenance
1504-001
5.4 Maintenance Spots
OM-1833
5-5

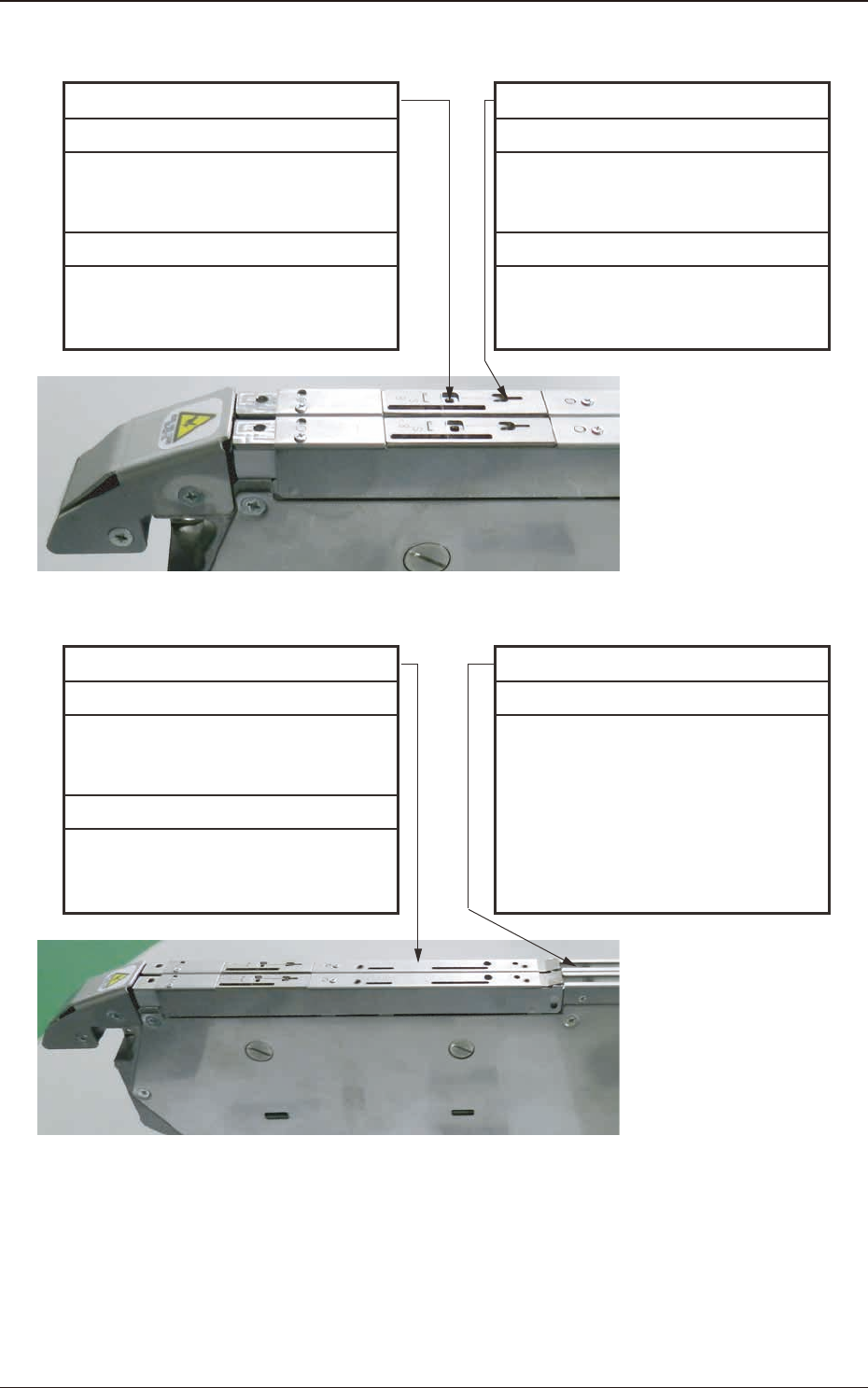

5.4.2 Suppressor Section
Cover Tape Processing Section
Every Week Cleaning :
Remove debris and dust using the air gun.
Remove any attachment using a rag
soaked in alcohol or cotton applicator.
Every Three Months Cleaning :
Component Pick-up Section
Every Week Cleaning :
Remove debris and dust using the air gun.
Remove any attachment using a rag
soaked in alcohol or cotton applicator.
Every Three Months Cleaning :
Fig. E2
Chute (located under the Suppressor)
Every Three Months Cleaning :
Remove any attachment using a rag
soaked in alcohol or cotton applicator.
Suppressor
Every Week Cleaning :
Remove debris and dust using the air gun.
Remove any attachment using a rag
soaked in alcohol or cotton applicator.
Every Three Months Cleaning :
Fig. E3
1504-001
5.4 Maintenance Spots
OM-1833
5-6

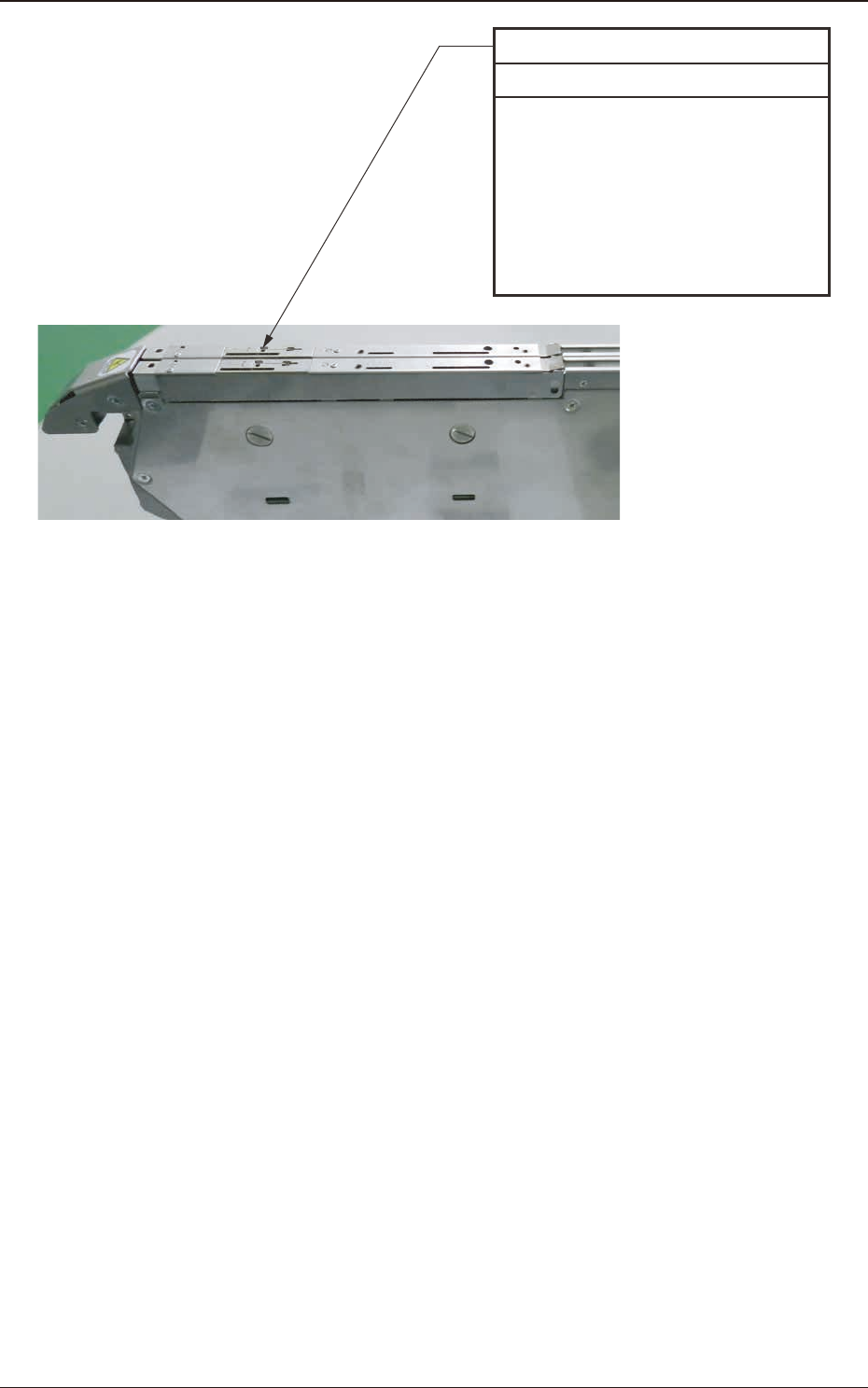

Pick-up Position
Every Three Months Adjustment :
Check the pick-up position using the
feeder-adjusting jig JG-0209 (to be
purchased separately) and if there is any
non-conformity, adjust it.
Fig. E4
