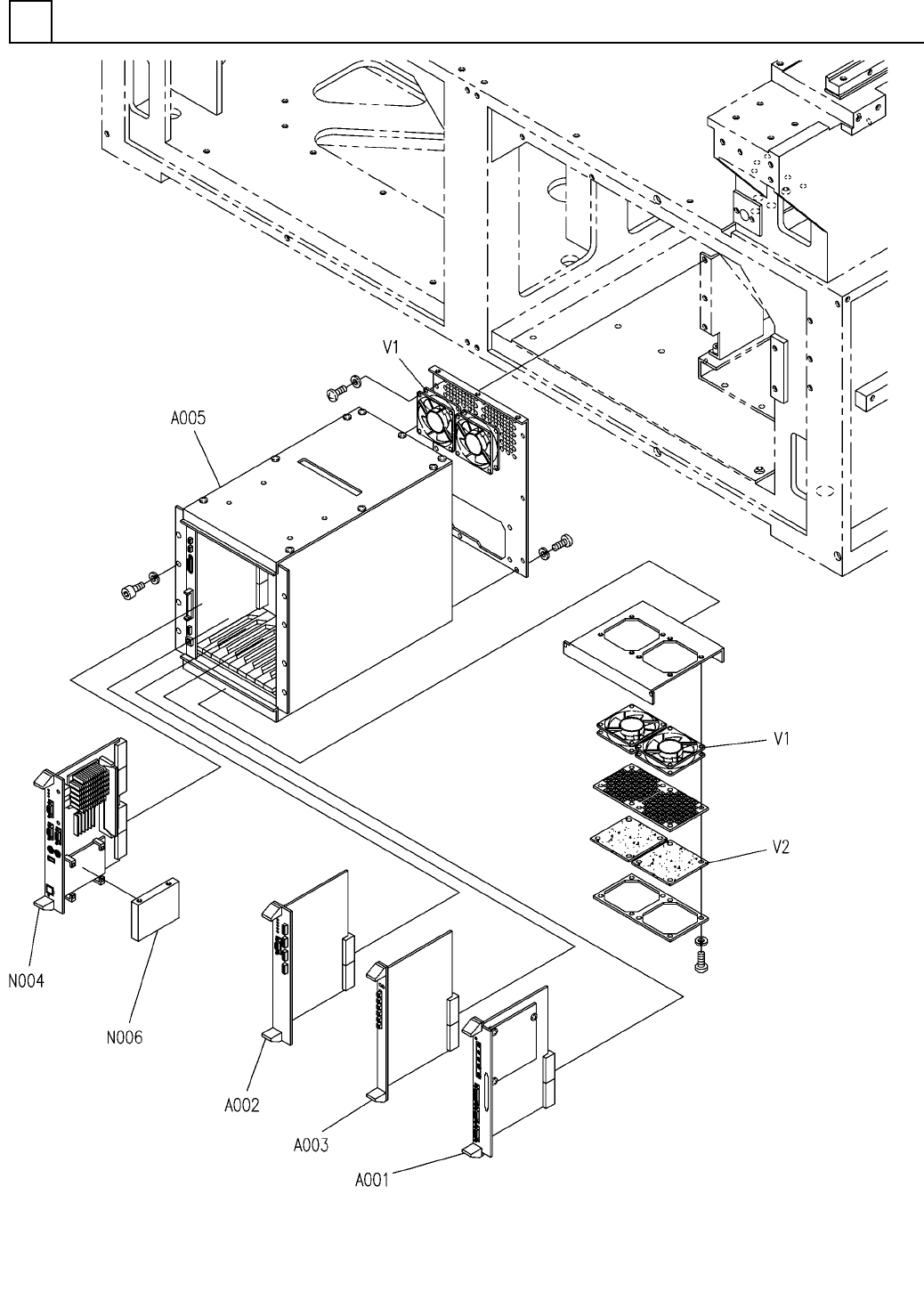

ﾒｲﾝｺﾝﾄﾛ ｰﾗ MAIN CO NTROLLER 1 F30862-CA-000 -AC_04 E1
ﾒｲﾝｺﾝﾄﾛｰﾗ
MAIN CONTROLLER
1
F30862-CA-000-AC_04
E1
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
ﾒｲﾝｺﾝﾄﾛｰﾗ
MAIN CONTROLLER
部 品 名 品 番 個数
備 考
R
1
R
2
1 30862CA000AC
CONTROLLER(MAIN) ｺﾝﾄﾛｰﾗ
(ﾒｲﾝ)
FS8000-RC7-2D S
1
A001
N610074696AA
BOARD(RC) ｷﾊﾞﾝ(RC)
FS8000-CC2 S
1
A002
N1F8CC2
BOARD(CC) ｷﾊﾞﾝ(CC)
FA8000-202-4B S
1
A003
N1F82024B
BOARD(NC) ｷﾊ
ﾞﾝ(NC)
NBC-JC155X-D1 S
1
N004
N510060000AA
BOARD(CPU) ｷﾊﾞﾝ
(CPU)
FA8000-773-3A S
1
A005
N1F87733A
CASE ｷｮｳﾀｲ
S
1
N006
N610141152AA
SDD SDD
109P0812H7D04
4V 1 N238109P-103
FAN WITH MOTOR ﾌｧﾝﾓｰﾀ
M39800-13-380
2V 2 3980013380
UNDER FAN FILTER ｱﾝﾀﾞｰﾌｧﾝﾌｨﾙﾀ
E2
F30862-CA-000-AC_04
