930456#00

Installation of

F2-82M Optional Kit

This optional kit is for change the feeding pitch from 2mm to 4mm.

Please note in advance. After the change, the feeder does not work 2mm pitch feeding.

Option Kit 【Only for 4mm pitch】

・TAPE GUIDE KIT【SL99M0094-100】

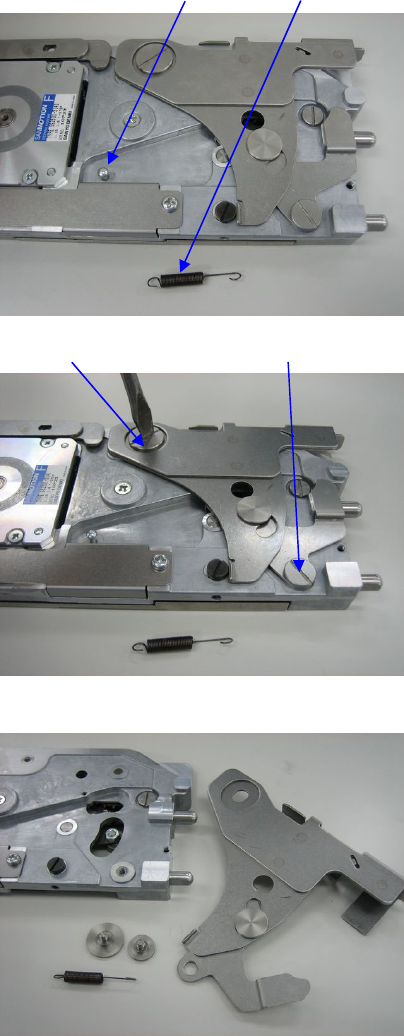

■ Remove the existing Tape guide

1. Remove the Spring【LG4-M1A48-001】 from the

Hook..

2. Loosen the Tape Guide Pin【LG4-M1A47-000】

and Arm Guide Pin【LG4-M1A4K-500】by a slotted

screwdriver and remove them.

3. Remove the Tape Guide Assy【LG4-M2A40-500】.

Spring Hook

Tape Guide Pin Arm Guide Pin

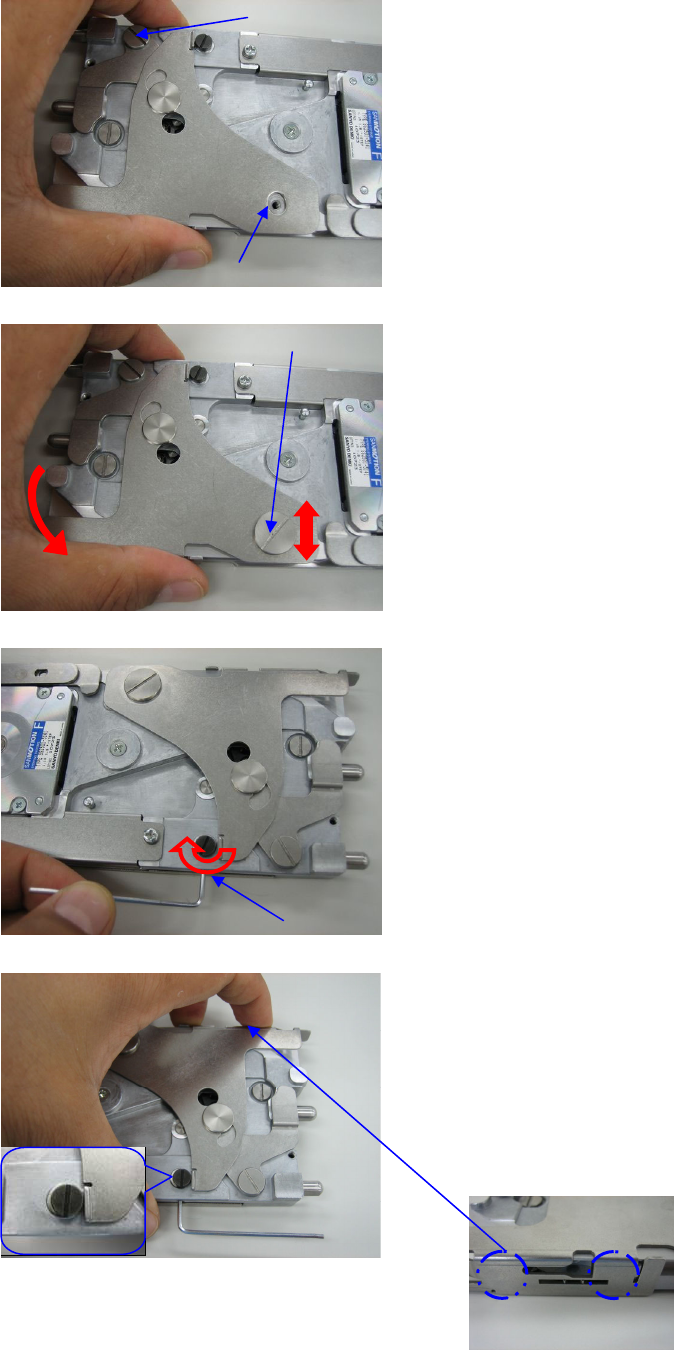

■ Install the new Tape Guide.

1. Put the new Tape guide on the feeder and

fasten the Arm Guide Pin loosely.

Align the long-hole of the Tape Guide

with the center of the tap hole and fasten

the Tape Guide Pin loosely.

2. Make sure if the Tape Guide moves

correctly（vertical and rotated motion）.

Fasten the Tape Guide Pin and Arm

Guide Pin.

3. Loosen the set screw M3x5 by allen

wrench (1.5mm). Turn the eccentric pin

clockwise to make a gap between Tape

guide and eccentric pin.

4. Push the Tape guide on the tape running

surface and put it lightly. Turn the

eccentric pin counterclockwise to close

the gap from the Tape guide. And fasten

the set screw.

(↓The positions where to push by fingers)

Setscrew

Arm Guide Pin

Tape Guide Long-hole

Tape Guide Pin
