■ Check the pickup poi nt on the mounter. In the F2-82M fee der, press the manual switch once. Then the fee d pitch is 2mm. Therefore in u se an d s ettin g of t his Tape Guide, the feed pitch may s hift 2 mm. Adjust the…

■ Set up the switch.

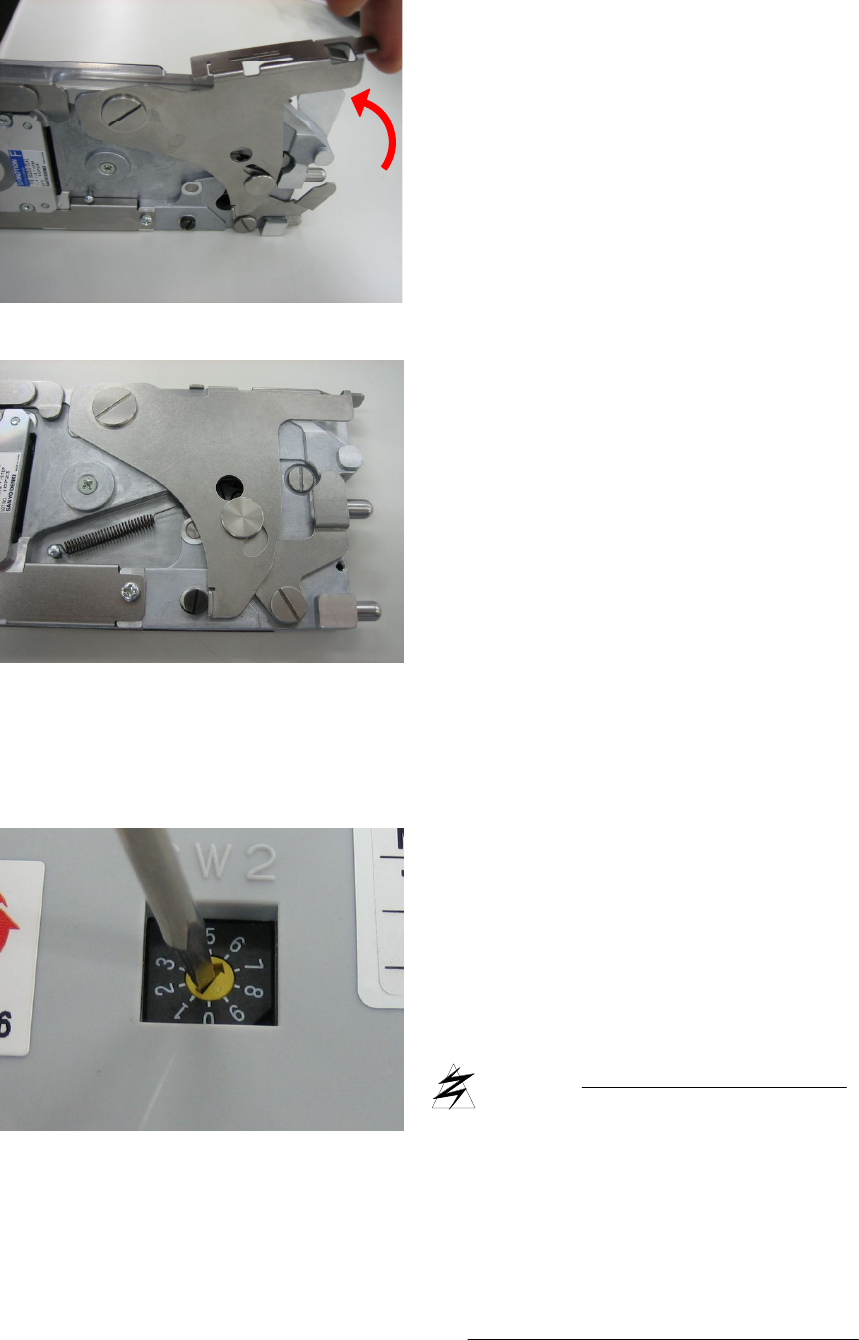

5. Pull up the end of the Tape Guide and

release it. To make sure it to be falling by

itself.

6. Hook the spring..

The adjustable feeding speed of 4mm pitch is 6

to 9.

The standard is “6”.

In case of rash of pickup error, it may

improve by the speed slow down.

The larger value of the switch makes

the speed slow.

CAUTION

Be sure to remove the feeder from the

mounter before working the switchover.

The switchover during power on, the

setting is not reflected. Tape Guide is

accurate parts so that require careful

handling.

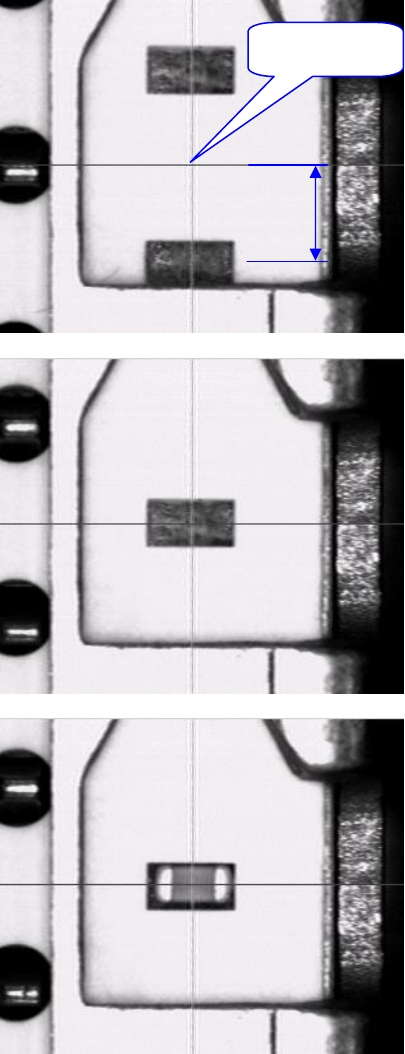

■ Check the pickup point on the mounter.

In the F2-82M feeder, press the manual

switch once. Then the feed pitch is 2mm.

Therefore in use and setting of this Tape

Guide, the feed pitch may shift 2mm.

Adjust the pickup point on the machine

monitor according to below procedure.

1. In case of the pocket is out of alignment

⇒Push the manual switch until the

component appear on the pickup

point.

↓

Continue to Step 3.

2. In case of the pocket is just in alignment

⇒ Push the manual switch until the

component appear in the pickup point.

↓

Continue to Step 3.

3. Make sure that the component appear on

the pickup point.

And start the production run.

Pickup point

2mm

MODEL 15 INCH REEL KIT D

CODE No. SL99M0027-210

APPLICABLE FEEDER

F1-84：3901C～

F1-82-1005：1071C～

F1-82-0603：131C～

F2-84：1A～

F2-82-1005：1A～

F2-82-0603：1A～

F2-82M：21A～
