F2-82M_FeederPartsList - 第20页

LG4-M1A90-000 1A-1 3

100%1 / 106
F2-82M (A type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A8E-000
IDLER ROLLER ASSY
1 AS-A08-8162
LG4-M1A86-500
I.ROLLER ALL ASSY
1 AS2-A08-8162
LG4-M1A8D-000
DRIVE ROLLER ASSY
1 AS-A08-8170
LG4-M1A81-500 D.ROLLER ALL ASSY 1 AS2-A08-8170
LG4-M1A87-500
TENSION LEVER　ASSY
1 AS-E08-8560
LG4-M1A82-500
INDEKING LEVER ASSY
1 AS-E08-8564
1 K87-M111C-000
PLANE WASHER
1 CTF-A08-16-B
2 K87-M117B-000
PLANE WASHER
2 CTF-M08-76-B
3 KW1-M11A3-001
LOWER GUIDE PLATE,L
1 FTA-A08-1179-C
4 LG4-M1A8C-000
LEVER METAL
1 FTA-A08-8158-B
5 LG4-M1A66-010
ROLLER AXIS
1 FTA-A08-8163-B
6 LG4-M1A84-010
ARM STUD
1 FTA-A08-8166-B
7 LG4-M1A85-000
ROLLER
1 FTA-A08-8167
8 LG4-M1A6P-011
LOWER GUIDE PLATE,R
1 FTA-A08-8178-C
9 LG4-M1A62-500
METAL SHAFT
1 FTA-E08-8555
10 LG4-M1A63-500
LEVER AXIS PIN
1 FTA-E08-8559
11 LG4-M1A64-500
WASHER
1 FTA-E08-8559-1
12
LG4-M1A65-500
TENSION LEVER
1 FTA-E08-8560
13 LG4-M1A8B-500
TENSION LEV.RE.SP.
1 FTA-E08-8560-700
14 LG4-M1A83-500
INDEKING LEVER
1 FTA-E08-8564
15 LG4-M2A8A-500
INDEKING LEV.RE.SP.
1 FTA-E08-8564-18B
16 LG4-M1A6M-500
MIDDLE GUIDE PLATE T
1 FTA-E08-8577
17 K87-M11BF-000
SCREW,FLAT HEAD
1 P2MK-4-IB
18
K87-M11BB-000
SCREW,FLAT HEAD
2 P2.6MK-5-IB
19 K87-M111W-000 SCREW,PAN HEAD+ 1 3MC-5-P
20
K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
21 K87-M111S-000
SCREW,FLAT HEAD+
1
3MK-6-P
22 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
23
24
25
LG4-M1A90-000
F2-82M (A type)
P 7

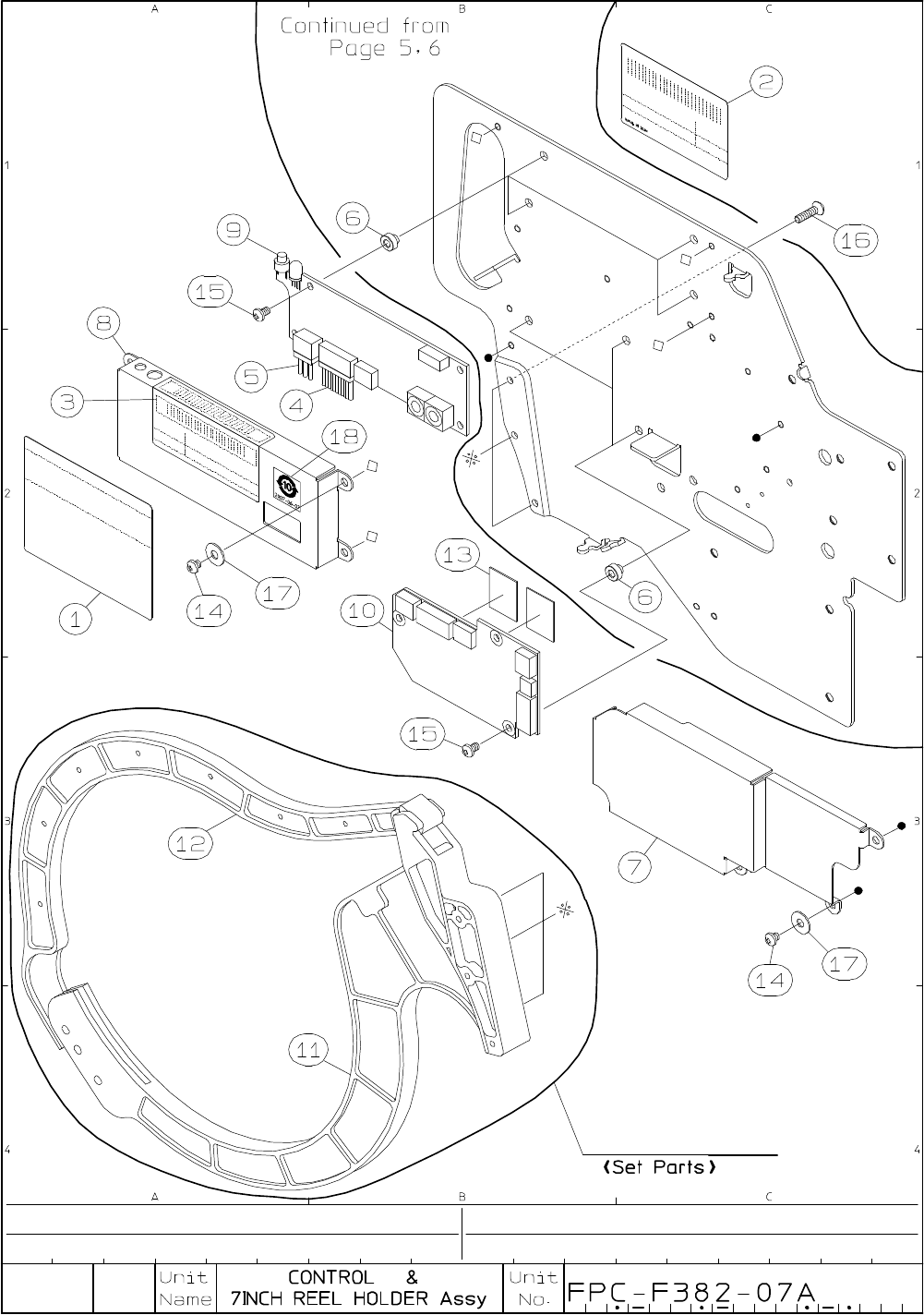

No. Code No. Parts Name Q'ty Parts No.
LG4-M1A90-000
REEL HOLDER ASSY
1
AS-201720
1
LG4-M1ACX-110
PROTECTION SEAL
1 FTA-A08-8253-PS-B
2
LG4-M1AC1-500 SERIAL NO. STICKER 1
FTA-E08-8550-SNS
3 LG4-M1AC3-500 SERIAL NO. STICKER 1 FTA-E08-8550-SNS1
4
LG4-M1AAC-500 ITH-ITHA HARNESS 1 1 FTA-E08-8551-4B
5
LG4-M1AAD-500 ITH-ITHA HARNESS 2 1 FTA-E08-8551-6
6 LG4-M1A6R-500 CONTROL BOARD COLLAR 7
FTA-E08-8552
7
LG4-M1A6V-500 C.B.COVER 1
FTA-E08-8553
8
LG4-M1A6S-500 C.B.COVER 1
FTA-E08-8554
9 LG4-M1AHB-510 BOARD ITH 1
10
LG4-M1AHC-510 BOARD ITHA 1
11
LG4-M1A91-000
REEL HOLDER
1
201720
12
LG4-M1A92-000
CLAMP ARM
1
201721
13
LG4-M1AB8-500 COOL SHEET 1 2 TC-050SP-1.7 1520
14
K87-M111N-000 SCREW,PAN HEAD+ 7
3MC-3-P
15
K87-M111W-000 SCREW,PAN HEAD+ 7
3MC-5-P
16
LG4-M1ADF-000
SCREW,BAIND HEAD+
3
3M-10-P-P-Bi
17
K87-M11BE-000 THRUST WASHER 7 3V-0.5-8-P
18
ROHS STICKER
1
19
20
21
22
23
24
25
26
27
28
29
30
31
