LG4-M1A87-000 LG4 - M1A8E - 000 LG4-M1A86-000 LG4-M1A82-500 LG4-M1A8D-000 LG4-M1A81-500 1B-1 1
F2-82M (B type)
P 5
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A60-510 BACK PLATE ASSY 1 AS-E08-8550-B
LG4-M1A68-500 TENSION LEVER ASSY 1 AS-E08-8584
1 KW1-M116U-000 ROLLER 3 CTF-M08- 342
2 LG4-M1A6B-000 ROLLER AXIS U 1 FTA-A08-8174
3 LG4-M1A6D-000 LEAF U 1 FTA-A08-8174-1
4 LG4-M4A6J-000 SPRING HOOK PIN 2 FTA-A12-8156
5 LG4-M1A61-510 BACK PLATE 1 FTA-E08-8550-B
6 LG4-M1AA3-510 MICRO SWITCH ASSY 1 FTA-E08-8551-5B
7 LG4-M1A6A-500 ROLLER AXIS T 1 FTA-E08-8573
※1 8 LG4-M1A6N-511 MIDDLE GUIDE PLATE C 1 FTA-E08-8576-C
9 LG4-M1A67-510 COVER 1 FTA-E08-8580-B
10 LG4-M1A69-500 ROLLER AXIS U 1 FTA-E08-8582
11 LG4-M1A6C-500 TENSION LEVER METAL 1 FTA-E08-8583
12 LG4-M1A6K-500 TENSION LEVER 1 FTA-E08-8584
13 LG4-M1A6L-500 TENSION LEVER SPRING 1 FTA-E08-8584-100
14 K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
15 LG4-M1ADC-000 SCREW,PAN HEAD+ 1 3MC-7-P
16 K87-M111S-000 SCREW,FLAT HEAD+ 2 3MK-6-P
17 K87-M55BN-000 SCREW,FLAT HEAD+ 2 3MK-8-P
18 K87-M11B4-100 SCREW,FLAT HEAD+ 2 3MK-12-P
19 LG4-M1ADD-000 SCREW,FLAT HEAD+ 2 3MK-14-P
20 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
21
22
23
24
25
26
27
28
※1…F2-82M-421B～
1B-10
LG4-M1A87-000
LG4
-
M1A8E
-
000
LG4-M1A86-000
LG4-M1A82-500
LG4-M1A8D-000
LG4-M1A81-500
1B-11

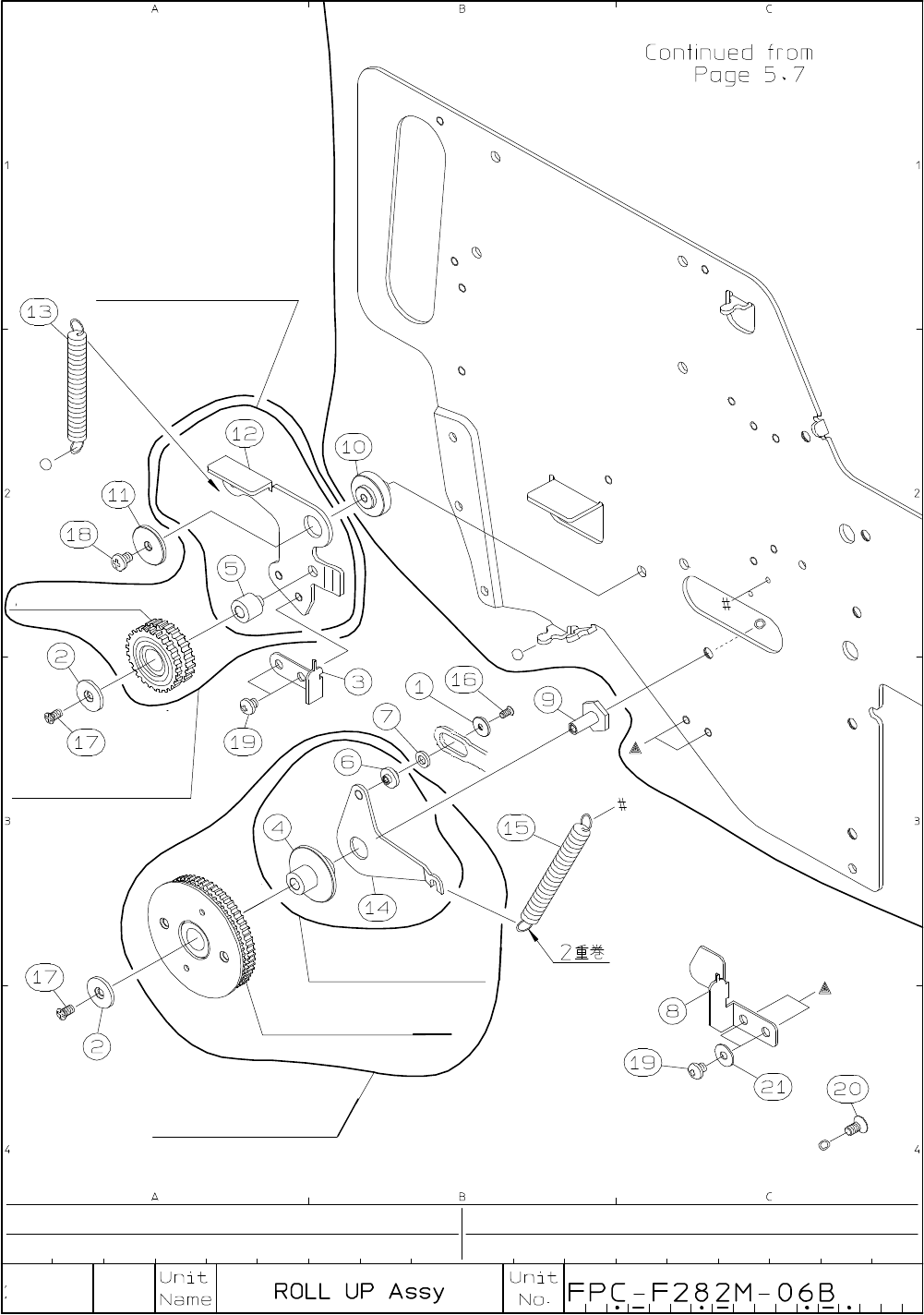

F2-82M (B type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A87-000
TENSION LEVER ASSY
1 AS-A08-8160-B
LG4-M1A8E-000
IDLER ROLLER ASSY
1 AS-A08-8162
LG4-M1A86-000
I.ROLLER ALL ASSY
1 AS1-A08-8162
LG4-M1A8D-000
DRIVE ROLLER ASSY
1 AS-A08-8170
LG4-M1A81-500 D.ROLLER ALL ASSY 1 AS2-A08-8170
LG4-M1A82-500
INDEKING LEVER ASSY
1 AS-E08-8564
1 K87-M111C-000
PLANE WASHER
1 CTF-A08-16-B
2 K87-M117B-000
PLANE WASHER
2 CTF-M08-76-B
3 KW1-M11A3-001
LOWER GUIDE PLATE,L
1 FTA-A08-1179-C
4 LG4-M1A8C-000
LEVER METAL
1 FTA-A08-8158-B
5 LG4-M1A66-010
ROLLER AXIS
1 FTA-A08-8163-B
6 LG4-M1A84-010
ARM STUD
1 FTA-A08-8166-B
7 LG4-M1A85-000
ROLLER
1 FTA-A08-8167
8 LG4-M1A6P-011
LOWER GUIDE PLATE,R
1 FTA-A08-8178-C
9 LG4-M1A62-500
METAL SHAFT
1 FTA-E08-8555
10 LG4-M1A63-500
LEVER AXIS PIN
1 FTA-E08-8559
11 LG4-M1A64-500
WASHER
1 FTA-E08-8559-1
12
LG4-M1A65-010
TENSION LEVER
1 FTA-A08-8160-B
13 LG4-M4A8B-000
TENSION LEV. RE SP.
1 FTA-A12-8160-700
14 LG4-M1A83-500
INDEKING LEVER
1 FTA-E08-8564
15 LG4-M2A8A-500
INDEKING LEV. RE SP.
1 FTA-E08-8564-18B
16 K87-M11BF-000
SCREW,FLAT HEAD
1 P2MK-4-IB
17 K87-M11BB-000
SCREW,FLAT HEAD
2 P2.6MK-5-IB
18
K87-M111W-000 SCREW,PAN HEAD+ 1 3MC-5-P
19 K87-M111N-000 SCREW,PAN HEAD+ 4 3MC-3-P
20
K87-M111S-000
SCREW,FLAT HEAD+
1
3MK-6-P
21 K87-M11BE-000 THRUST WASHER 2 3V-0.5-8-P
22
23
24
25
1B-12
