F2-82M (B type) P 7 No. Code No. Parts Name Q'ty Parts No. LG4-M1A90-000 REEL HOLDER ASSY 1 AS-201720 ※1 1 LG4-M1ACX-11 2 PROTECTION SEAL 1 FTA-A08-8253-PS-D 2 LG4-M1AC1-500 SERIAL NO. STICKER 1 FTA-E08-8550-SNS 3 L…

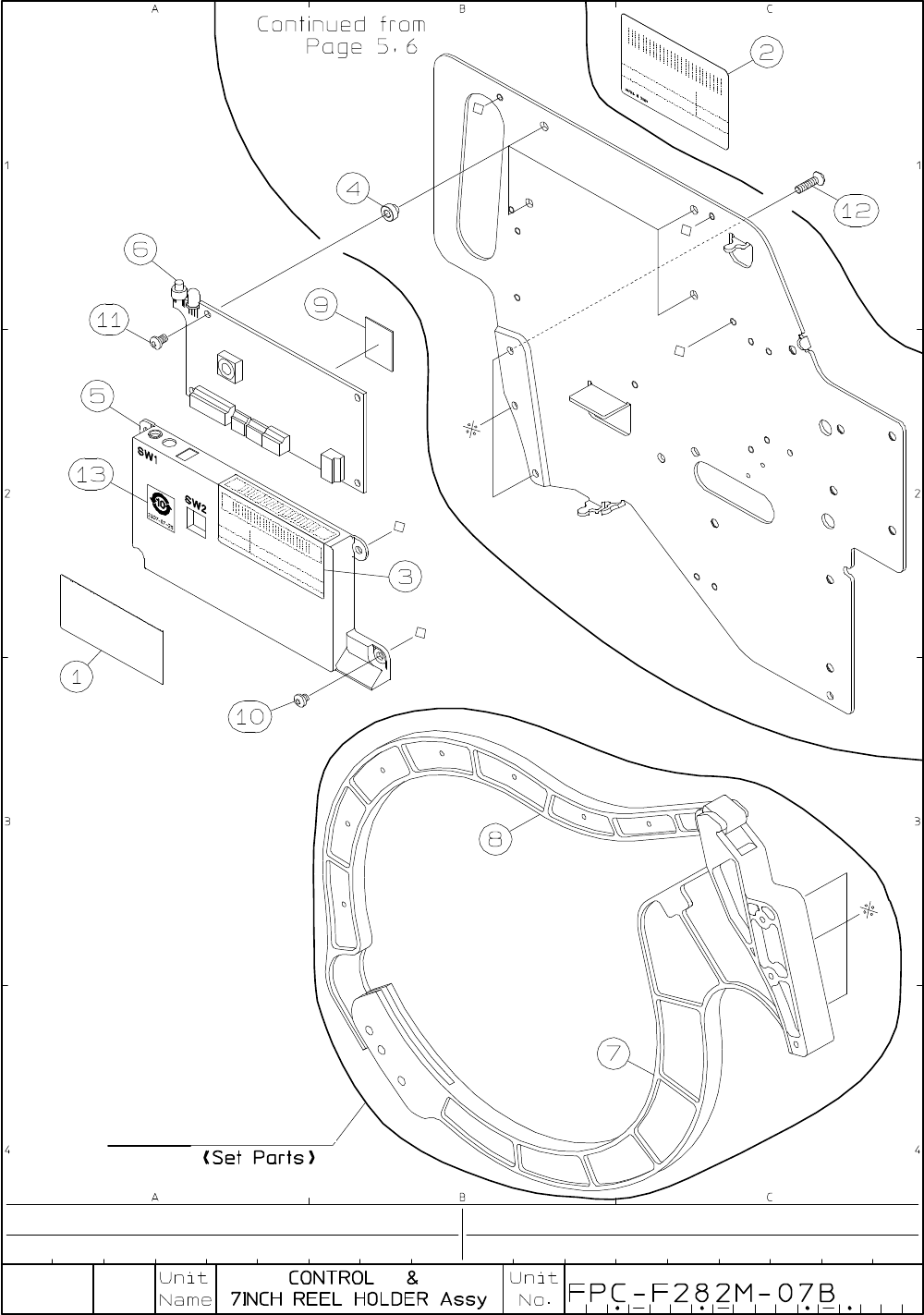

LG4-M1A90-000
2B-13
F2-82M (B type)
P 7
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A90-000 REEL HOLDER ASSY 1 AS-201720
※1 1 LG4-M1ACX-112 PROTECTION SEAL 1
FTA-A08-8253-PS-D
2 LG4-M1AC1-500 SERIAL NO. STICKER 1 FTA-E08-8550-SNS
3 LG4-M1AC3-500 SERIAL NO. STICKER 1
FTA-E08-8550-SNS1
4 LG4-M1A6R-500 CONTROL BOARD COLLA
R
4 FTA-E08-8552
5 LG4-M1A6V-510 C.B.COVER 1 FTA-E08-8553-B
6 LG4-M1AHB-530 BOARD ITH 1
7 LG4-M1A91-000 REEL HOLDER 1 201720
8 LG4-M1A92-000 CLAMP ARM 1 201721
9 LG4-M1AB8-500 COOL SHEET 1 1 TC-050SP-1.7 1520
10 K87-M111N-000 SCREW,PAN HEAD+ 4 3MC-3-P
11 K87-M111W-000 SCREW,PAN HEAD+ 4 3MC-5-P
12 LG4-M1ADF-000 SCREW,BAIND HEAD+ 3 3M-10-P-P-Bi
13 KW1-M11AA-000 ROHS STICKER 1
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
※1…F2-82M-321B～
