F2-82M (B type) P 6 No. Code No. Parts Name Q'ty Parts No. LG4-M1A87-000 TENSION LEVER ASSY 1 AS-A08-8160-B LG4-M1A8E-000 IDLER ROLLER ASSY 1 AS-A08-8162 LG4-M1A86-000 I.ROLLER ALL ASSY 1 AS1-A08-8162 LG4-M1A8D-000 …
LG4-M1A87-000
LG4
-
M1A8E
-
000
LG4-M1A86-000
LG4-M1A82-500
LG4-M1A8D-000
LG4-M1A81-500

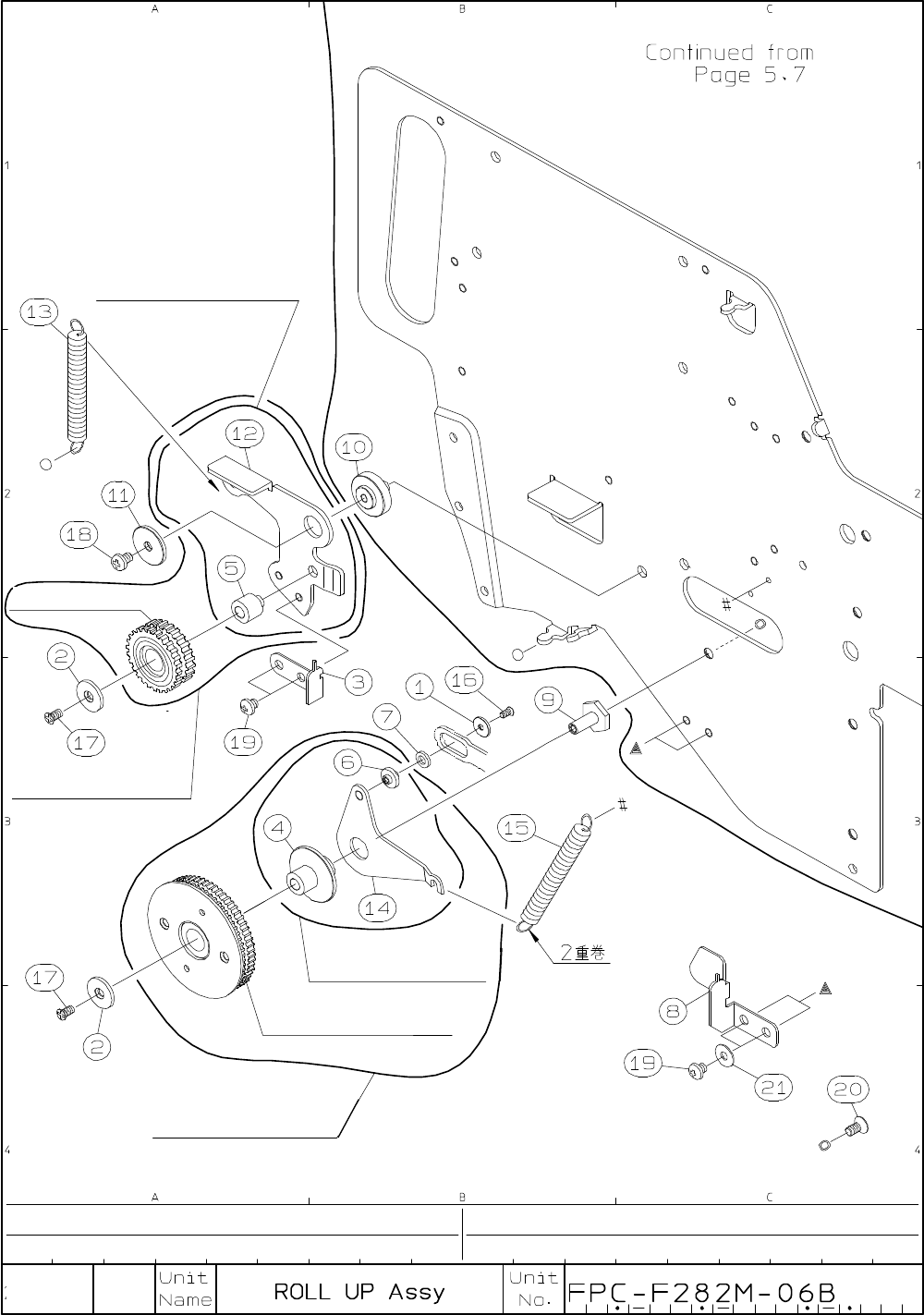

F2-82M (B type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A87-000 TENSION LEVER ASSY 1 AS-A08-8160-B
LG4-M1A8E-000 IDLER ROLLER ASSY 1 AS-A08-8162
LG4-M1A86-000 I.ROLLER ALL ASSY 1 AS1-A08-8162
LG4-M1A8D-000 DRIVE ROLLER ASSY 1 AS-A08-8170
LG4-M1A81-500 D.ROLLER ALL ASSY 1 AS2-A08-8170
LG4-M1A82-500 INDEKING LEVER ASSY 1 AS-E08-8564
1 K87-M111C-000 PLANE WASHER 1 CTF-A08-16-B
2 K87-M117B-000 PLANE WASHER 2 CTF-M08-76-B
3 KW1-M11A3-001 LOWER GUIDE PLATE,L 1 FTA-A08-1179-C
4 LG4-M1A8C-000 LEVER METAL 1 FTA-A08-8158-B
5 LG4-M1A66-010 ROLLER AXIS 1 FTA-A08-8163-B
6 LG4-M1A84-010 ARM STUD 1 FTA-A08-8166-B
7 LG4-M1A85-000 ROLLER 1 FTA-A08-8167
8 LG4-M1A6P-011 LOWER GUIDE PLATE,R 1 FTA-A08-8178-C
9 LG4-M1A62-500 METAL SHAFT 1 FTA-E08-8555
10 LG4-M1A63-500 LEVER AXIS PIN 1 FTA-E08-8559
11 LG4-M1A64-500 WASHER 1 FTA-E08-8559-1
12 LG4-M1A65-010 TENSION LEVER 1 FTA-A08-8160-B
13 LG4-M4A8B-000 TENSION LEV. RE SP. 1 FTA-A12-8160-700
14 LG4-M1A83-500 INDEKING LEVER 1 FTA-E08-8564
15 LG4-M2A8A-500 INDEKING LEV. RE SP. 1 FTA-E08-8564-18B
16 K87-M11BF-000 SCREW,FLAT HEAD 1 P2MK-4-IB
17 K87-M11BB-000 SCREW,FLAT HEAD 2 P2.6MK-5-IB
18 K87-M111W-000 SCREW,PAN HEAD+ 1 3MC-5-P
19 K87-M111N-000 SCREW,PAN HEAD+ 4 3MC-3-P
20 K87-M111S-000 SCREW,FLAT HEAD+ 1 3MK-6-P
21 K87-M11BE-000 THRUST WASHER 2 3V-0.5-8-P
22
23
24
25
LG4-M1A90-000
