F2-82M (B type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M2A40-510 T.G. PLATE ASSY 1 AS-E08-8519-05C
1 LG4-M3A42-000 SHUTTER PLATE 1 FTA-A08-8120-63
2 LG4-M1A45-000 SHUTTER GUIDE PIN 2 FTA-A08-8121
3 LG4-M1A44-001 SHUTTER PUSH SPRING 1 FTA-A08-8122-B
4 LG4-M1A4L-000 T.G. GUIDE SCREW 1 FTA-A08-8124
5 LG4-M1A47-000 T.G. GUIDE PIN 1 FTA-A08-8125
6 LG4-M1A48-500
T.G. PUSH SPRING 1 FTA-E08-8527-30
7 LG4-M3A49-000 ADJUST PLATE 1 FTA-A08-8126-63
8 LG4-M2A41-510 TAPE GUIDE PLATE 1 FTA-E08-8519-05C
9 LG4-M2A43-500 SHUTTER GUARD PLATE 1 FTA-E08-8523-05
10 LG4-M1A46-500 LOCK LEVER 1 FTA-E08-8527
11 LG4-M1A4K-500 T.G.A. GUIDE PIN 1 FTA-E08-8529
12 K87-M1547-000 SCREW,TRUSS HEAD 2 T2M-2.5-P
13 LG4-M3AD3-000 SPRING LOCK WASHER 2 2MU-P
14
15
16
17
18
19
20
21
22
23
24
25
F2-82M (B type)
P 5
No. Code No. Parts Name Q'ty Parts No.

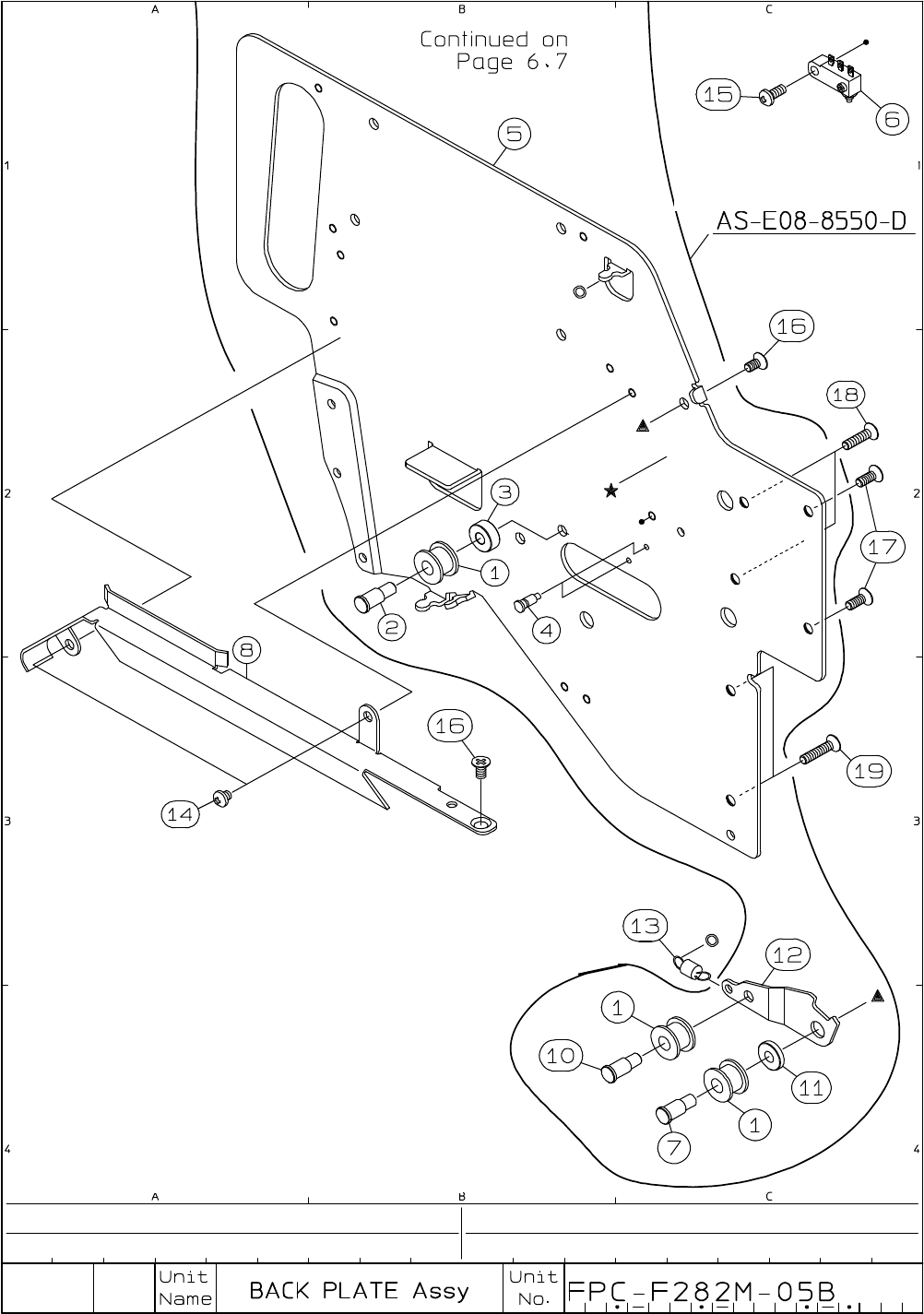

LG4-M1A60-511 BACK PLATE ASSY 1 AS-E08-8550-C
LG4-M1A60-520 BACK PLATE ASSY 1 AS-E08-8550-D
※1 LG4-M1A68-500 TENSION LEVER ASSY 1 AS-E08-8584
1 KW1-M116U-000 ROLLER 3 CTF-M08- 342
2 LG4-M1A6B-000 ROLLER AXIS U 1 FTA-A08-8174
3 LG4-M1A6D-000 LEAF U 1 FTA-A08-8174-1
4 LG4-M4A6J-000 SPRING HOOK PIN 2 FTA-A12-8156
LG4-M1A61-511 BACK PLATE 1 FTA-E08-8550-C
LG4-M1A61-520 BACK PLATE 1 FTA-E08-8550-D
6 LG4-M1AA3-510 MICRO SWITCH ASSY 1 FTA-E08-8551-5B
LG4-M1A6A-500 ROLLER AXIS T 1 FTA-E08-8573
LG4-M1A6A-000 ROLLER AXIS T 1 FTA-A08-8173
LG4-M1A6N-513 MIDDLE GUIDE PLATE C 1 FTA-E08-8576-E
LG4-M1A6N-520 MIDDLE GUIDE PLATE C 1 FTA-E08-8576-F
※1 9 LG4-M1A67-511 COVER 1 FTA-E08-8580-C
10 LG4-M1A69-500 ROLLER AXIS U 1 FTA-E08-8582
11 LG4-M1A6C-500 TENSION LEVER METAL 1 FTA-E08-8583
12 LG4-M1A6K-500 TENSION LEVER 1 FTA-E08-8584
13 LG4-M1A6L-500 TENSION LEVER SPRING 1 FTA-E08-8584-100
※1 14 K87-M111N-000 SCREW,PAN HEAD+ 6 2 3MC-3-P
15 LG4-M1ADC-000 SCREW,PAN HEAD+ 1 3MC-7-P
16 K87-M111S-000 SCREW,FLAT HEAD+ 2 3MK-6-P
17 K87-M55BN-000 SCREW,FLAT HEAD+ 2 3MK-8-P
18 K87-M11B4-100 SCREW,FLAT HEAD+ 2 3MK-12-P
19 LG4-M1ADD-000 SCREW,FLAT HEAD+ 2 3MK-14-P
※1 20 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
21
※1…F2-82M-001319B～
※1
※1 5
※1 7
※1 8
