6 Making the Interface Connections Assembly Instructions 6.2 Connection from XPS to XPS SIPLACE X- Series Productivity Shuttle T ype I/II 36

Assembly Instructions 6 Making the Interface Connections

SIPLACE X-Series Productivity Shuttle Type I/II 6.2 Connection from XPS to XPS

6.2 Connection from XPS to XPS

The connection from XPS to XPS (input module to intermediate module or intermediate module

to end module) is made from SIM module 1.0 to SIM module 1.0.

NOTE

Refer to the circuit diagram for the XPS for the terminal markings.

NOTE

Route the cables on or under the machine to prevent them from posing a tripping hazard.

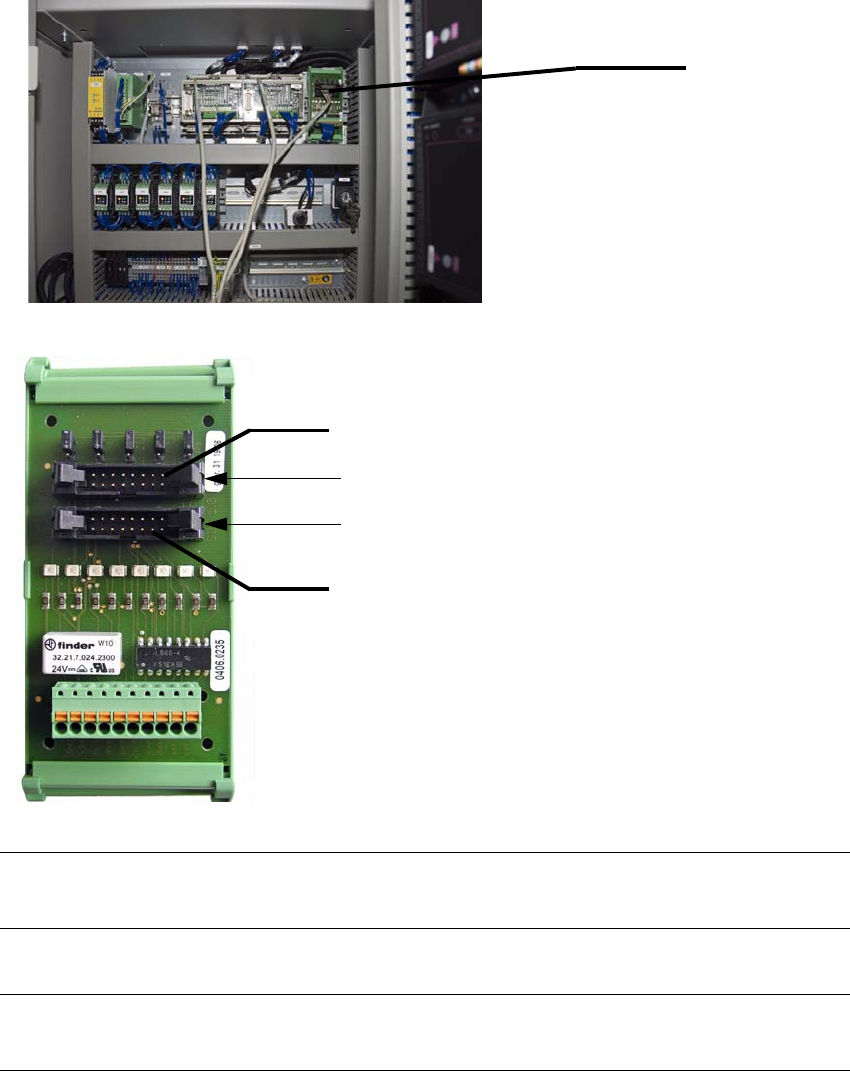

SIM 1.0

X/N-1 to X/N+1 of the downstream XPS

X/N-1 to X/N+1 of the upstream XPS

X/N+1

X/N-1

6 Making the Interface Connections Assembly Instructions

6.2 Connection from XPS to XPS SIPLACE X-Series Productivity Shuttle Type I/II

Assembly Instructions 7 Interface Description

SIPLACE X-Series Productivity Shuttle Type I/II 7.1 SMEMA Interface Definition

7 Interface Description

An interface between adjacent devices is necessary for handover and takeover. Our devices can

be equipped with different interfaces. If a change to different interface is made, this must be

carried out both on the interface module as well as on the control unit using the appropriate menu

command. We will be happy to provide information regarding problem areas due to changes to

the interface.

7.1 SMEMA Interface Definition

If the device is equipped with an interface according to the SMEMA definition, the connection is

made via a 16-pin socket connector and a 14-pin AMP connector.

The SMEMA interface definition specifies isolated contacts for the signals.

7.1.1 Pin Assignment

The circuit diagram for the system is applicable in each case.

Socket

connector

Color Signal designation AMP

1 WH N.C. 11

2 BN N.C. 12

3 GN + Board available 3

4 YE - Board available 4

5 GY + Not busy 1

6 PK - Not busy 2

7 BU + Pass 7

8 RD - Pass 8

13 BK Error loop 9

14 VT Error loop 10

15 GYPK + 24 V 13

16 RDBU GND 14

Table 7.1 - 1 SMEMA - Pin Assignment
