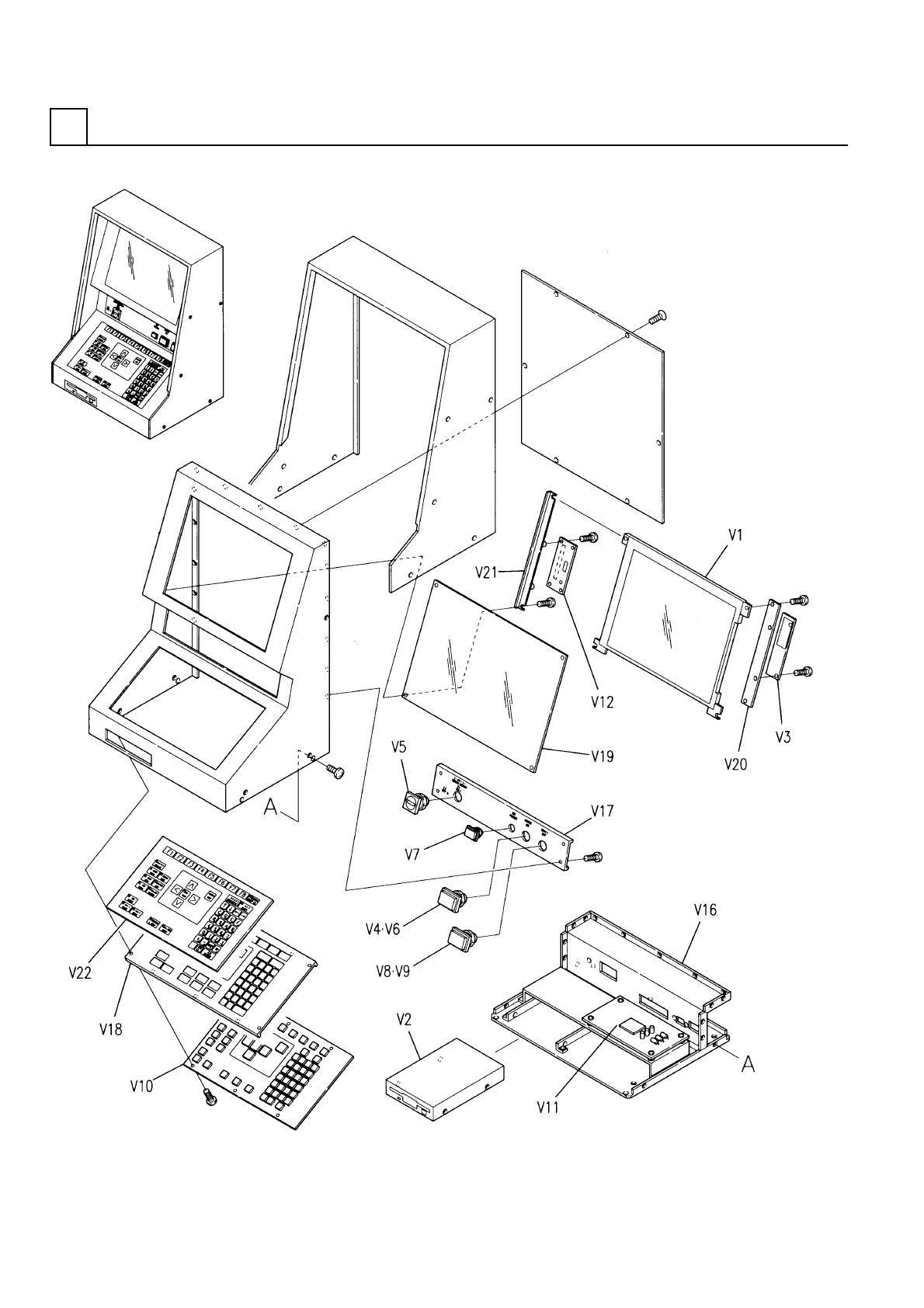

主操作盤(P932L-T02)
MAIN CONTROL PANEL
2
FN1P932LT02
E3
   
          PART NAME
     REMARKS 
Q'TY
2
主操作盤(P932L-T02)
MAIN CONTROL PANEL
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品  番 個数 備 考
R
1
R
2
P932L-T02 S
1 N1P932LT02
MAIN CONTROL PANEL ｼｭｿｳｻﾊ
ﾞﾝ
EDTCB07QKF
1
V 1 EDTCB07QKF
LCD UNIT LCD ﾓｼﾞｭｰﾙ
FD-235HG-A466
1
V 2 N902FD23-135
FLOPPY DISK DRIVE FDD
ECXF6401A
1V 3 N209ECXF-088
POWER SUPPLY ﾃﾞﾝｹﾞﾝ
AL6H-M24P-G UL
1V 4 N302AL6H-174
SWITCH ｽｲｯﾁ
AS6H-2K2PB-TK-1071-22
1
V 5 N302AS6H-321
SWITCH ｽｲｯﾁ
AL-KH6S
1
V 6 N302ALKH6S
GUARD(SWITCH) ｽｲｯﾁｶﾞｰﾄﾞ
M2CA-90A1-24EW
1V 7 N302M2CA-156
INDICATING LAMP ﾋｮｳｼ
ﾞﾄｳ
A3BP-7011-3
1V 8 N302A3BP-178
SWITCH ｽｲｯﾁ
A3BJ-510R
1
V 9 N302A3BJ-179
COVER(SWITCH) ｽｲｯﾁｶﾊﾞｰ
SA932-9000B
1V10 N209SA93-089
BOARD ｷﾊﾞﾝ
SA932-9003
1V11 N209SA93-143
BOARD(I/F) ｷﾊ
ﾞﾝ(I/F)
SA932-9002A
1
V12 N209SA93-091
BOARD ｷﾊﾞﾝ
1
V16 3993209310
PANEL(CONNECTOR) ﾊﾟﾈﾙ(ｺﾈｸﾀ)
1V17 3993215311
PLATE(SWITCH) ﾌﾟﾚｰﾄ(ｽｲｯﾁ)
1V18 3993209312
PLATE ｳﾗｲﾀ
1
V19 3993209315
PANEL ﾊﾟﾈﾙ
1
V20 3993209317
ATTACHMENT ﾄﾘﾂｹﾊﾞﾝ
1V21 3993209318
ATTACHMENT ﾄﾘﾂｹﾊﾞﾝ
1V22 3993209450
KEY SHEET KEY
ｼｰﾄ
E4
FN1P932LT02
副操作盤(P935L-001E)
SUB CONTROL PANEL
3
FN510023826AA
