4
DEK Galaxy APi DL

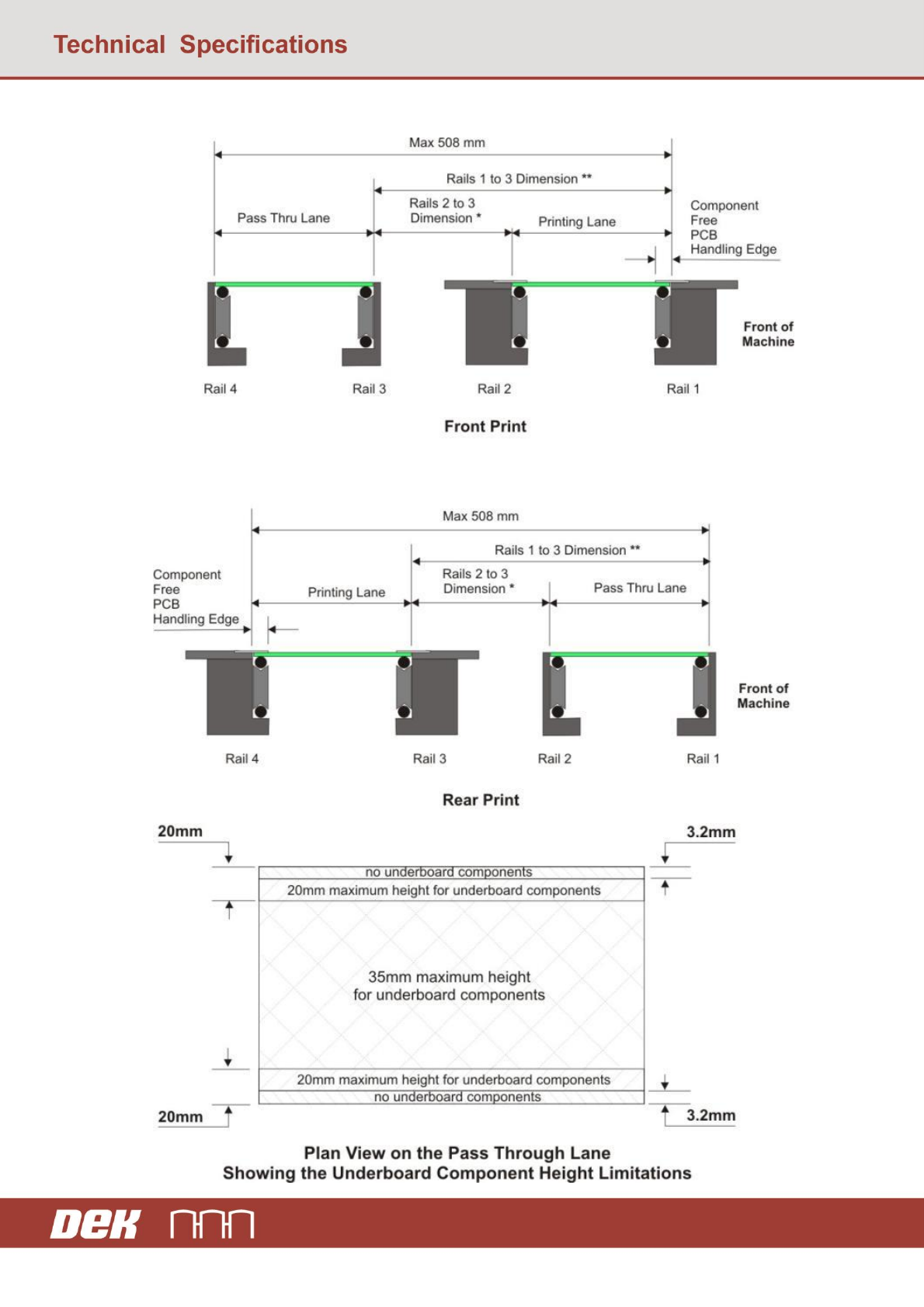

Machine Footprint
5
DEK Galaxy APi DL
Machine Standard Configuration
Process Parameters
Specification
Print Pressure
0kg to 20kg
Print Speed
2mm/sec to 300mm/sec
Print Gap
0mm to 6mm
Substrate Separation
Speed: 0.1mm/sec to 20mm/sec
Distance: 0mm to 20mm
Print Modes
ProFlow®
Print / Print
Print / Flood
Flood / Print
Adhesive
Paste Knead
Programmable: number; period; on demand
Vision
Specification
Vision System
Cognex
Fiducial Recognition
Automatic fiducial teach and find incorporating 0.1mm fiducial capture
Fiducials
2 or 3
Fiducial Types
Synthetic fiducial library or unique pattern recognition
Fiducial Size
0.1mm to 3mm
Fiducial Locations
Anywhere on substrate
Fiducial Error Recovery
Auto lighting adjustment
Auto fiducial search
Camera Lighting
Software controlled programmable LED lighting
Data Capture
Specification
Product Data Capture
Verification & Traceability
ProDEK Closed Loop
Chase
Specification
Screen Frame Size
736mm x 736mm (29” x 29”)
Screen Frame Thickness
38mm (1.5”)
Image Position
Front
Centre
Custom
6
DEK Galaxy APi DL
Machine Standard Configuration
Operating Environment
Specification
Temperature
10° to 35° C (50° to 95° F)
Humidity
30% to 70% relative humidity (non-condensing)
Services
Specification
Voltage
100 Volts to 240 Volts +/- 10%. Single phase 50/60Hz
Maximum Current at 115V
20 Amps with vacuum pump
6 Amps without vacuum pump
Maximum Current at 230V
10 Amps with vacuum pump
3 Amps without vacuum pump
Over Current Protection
An external circuit breaker ≤ 25 Amps is required to be fitted in line with the
machine supply
Air Supply
To ISO 8573.1 Standard Quality Class 2.3.3
Pressure 5 bar to 8 bar
General usage 5 litres/minute at 5 bar to 8 bar
Maximum usage 226 litres/minute at 6 bar
Shipping Information
Specification
Approximate Weight
825kg boxed (dependent upon configured options selected with machine)
665kg unboxed (dependent upon configured options selected with machine)
Approximate Dimensions
2060mm x 1500mm x 1570mm (81.1” x 59” x 61.8”)
Certification
Specification
CE
98/37/EC
89/336/EEC
73/23/EEC
Subsequent amendments
Acoustic Noise Level
Less than 70dB 2003/1/EC
