3 Technical data for the machine User Manual SIPLACE D3
3.2 Ratings From software version SR.605.xx 07/2008 EN Edition
100
3.2.2.2 Compressed air specification
3.2.3 Ambient conditions
3
3
3
3.2.4 Ambient conditions for the packaging, transportation and storage
3
Maximum particle size by density, based on ISO/DIS 8573-1 (class 1)
Particle size 0.1 μm
Particle density 0.1 mg/m³
Maximum oil content (class 1) Particle density 0.01 mg/m³
Pressure dewpoint (class 4) Dewpoint +3°C
Temperature range Between 15°C and 35°C
Relative atmospheric humidity Between 30% and 90% at 20°C
Ambient pressure > 750 mbar (corresponds to 2,500 m above mean sea level)
Temperature range Between -25°C and 55°C
Relative atmospheric humidity Up to 95%
Ambient pressure Up to 3000 m height without pressure equalization
User Manual SIPLACE D3 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.3 Dimensions and weight
101
3.3 Dimensions and weight
3.3.1 Technical data - dimensions and weight
3
3
Length
with both extension kits 2380 mm
with one extension kit 2103 mm
with no extension kits 1826 mm
Width of basic machine
with CO trolleys docked in (locations 1 + 4)
with CO trolleys docked in (locations 2 + 3)
incl. monitors
with keyboards
2815 mm
2395 mm
2766 mm
2804 mm
Height of the machine
with warning lamp
with folded-up protective covers
max. 1863 mm
1990 mm (PCB conveyor height: 830 mm)
2060 mm (PCB conveyor height: 900 mm)
2090 mm (PCB conveyor height: 930 mm)
2112 mm (PCB conveyor height: 950 mm)
Machine ground clearance 120 mm (PCB conveyor height: 830 mm)
190 mm (PCB conveyor height: 900 mm)
220 mm (PCB conveyor height: 930 mm)
240 mm (PCB conveyor height: 950 mm)
Weight
Basic machine with 4 component trolleys
Full configuration with feeder modules
3790 kg
4171 kg
Footprint 6.70 m²
Load per unit area
a
a) The load per unit area calculation included an additional working space of 0.5 m on each side of
the machine.
5.84 kN/m²
Number of machine feet 6
3 Technical data for the machine User Manual SIPLACE D3
3.3 Dimensions and weight From software version SR.605.xx 07/2008 EN Edition
102
3.3.2 Dimensions
3
3

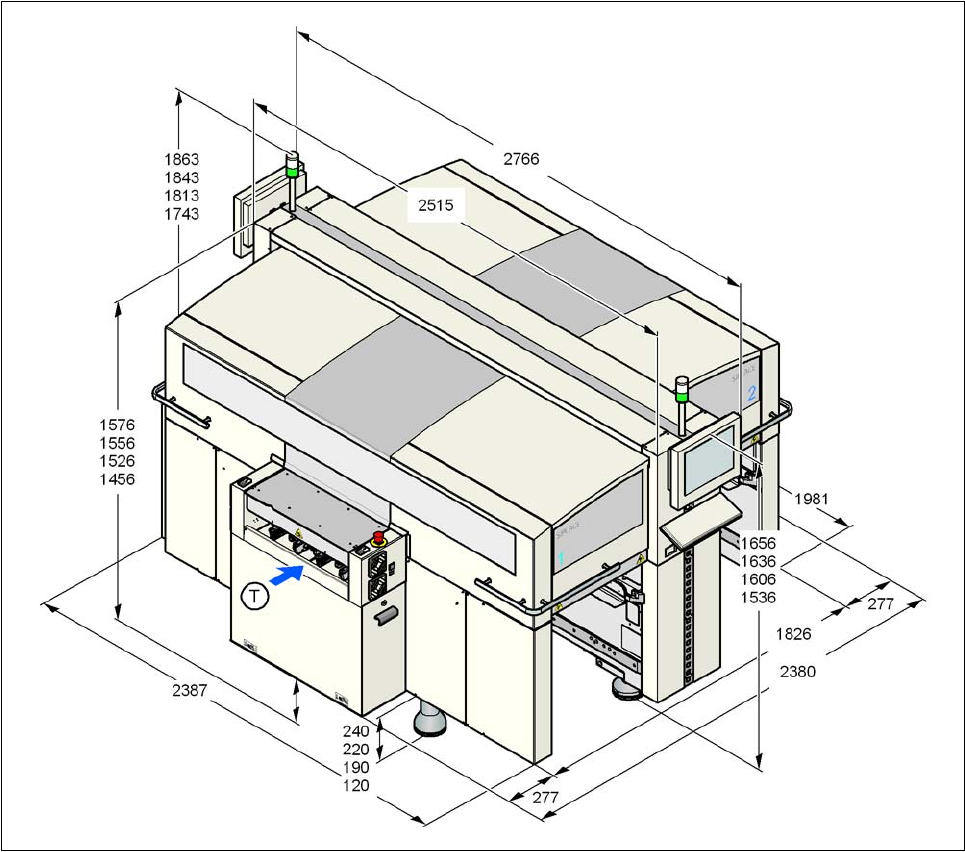

Fig. 3.3 - 1 Dimensions of the machine (basic machine) in millimeters
3
(T) Direction of PCB transport
