3.3.5 Center of gravity
3
3
3

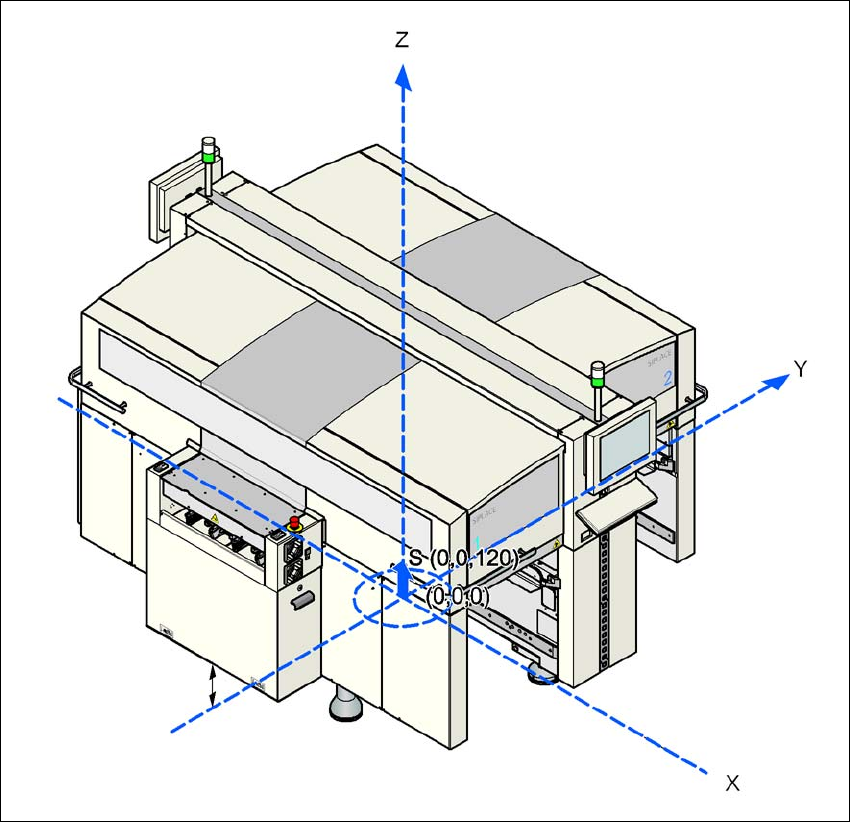

Fig. 3.3 - 4 Machine's center of gravity in millimeters
3
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 120 mm high
These center of gravity coordinates relate to placement systems with a PCB conveyor height of
830 mm.
3 Technical data for the machine User Manual SIPLACE D3
3.4 Overview of the modules From software version SR.605.xx 07/2008 EN Edition
106
3.4 Overview of the modules
3

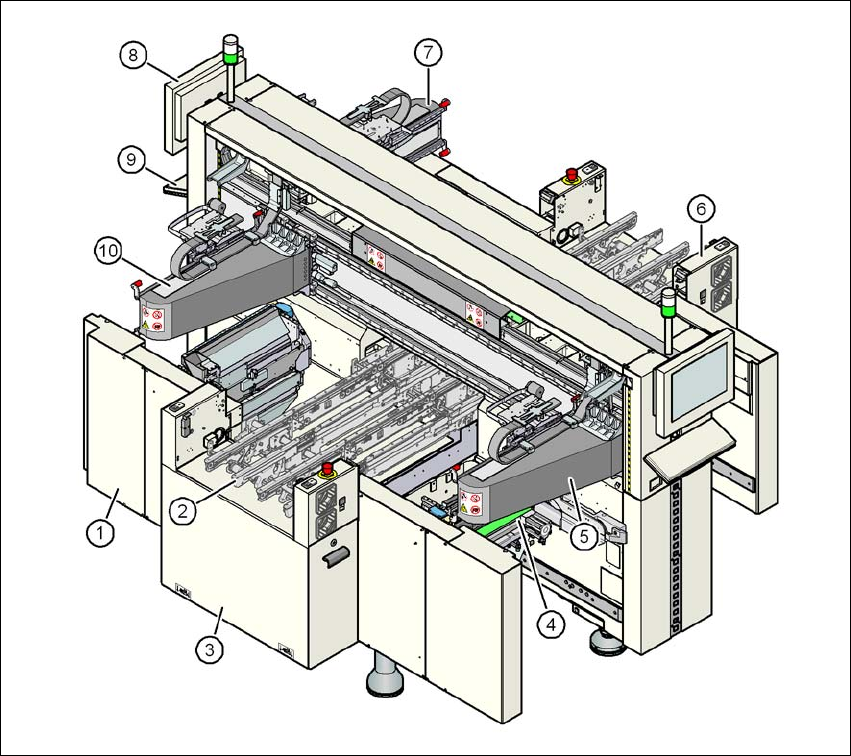

Fig. 3.4 - 1 Machine - protective covers and covers
(1) Machine frame
(2) PCB conveyor (flexible dual conveyor)
(3) Extension kit on the PCB input side
(4) Component trolley docking unit, tape cutter, used tape channel (4x)
(5) Gantry 1 with placement head
(6) Extension kit on the PCB output side
(7) Gantry 3 with placement head
(8) Monitor (2x)
(9) Keyboard (2x)
(10) Gantry 4 with placement head
User Manual SIPLACE D3 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.5 Placement head
107
3.5 Placement head
3.5.1 12-segment Collect&Place head for high-speed placement
3
Fig. 3.5 - 1 12-segment Collect&Place head - Function groups, part 1
(1) Vacuum generator
(2) Turning station, DP axis
(3) Star with 12 sleeves, star axis
(4) Forced air valve
(5) Silencer
