User Manual SIPLACE D3 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.9 Feeder modules
143
3.9.8 Technical data for the S feeder modules
The following pages contain pictures of all the S feeder modules, the technical data and the op-
tions for setting up the feeder modules on the machine.
3.9.8.1 8 mm SII tape feeder module
3
Fig. 3.9 - 1 8 mm SII tape feeder module
Item no. 00141096-xx
Width 30.6 mm
Tracks per feeder module 2
Feeder module locations filled 1
Max. number of feeder modules per machine 4 x 15
Stock of components for 7" reels Approx. 4,000
Conveyor increment 2mm / 4mm
Tape material Paper or blister tape
Max. component height 2.5 mm
3 Technical data for the machine User Manual SIPLACE D3
3.9 Feeder modules From software version SR.605.xx 07/2008 EN Edition
144

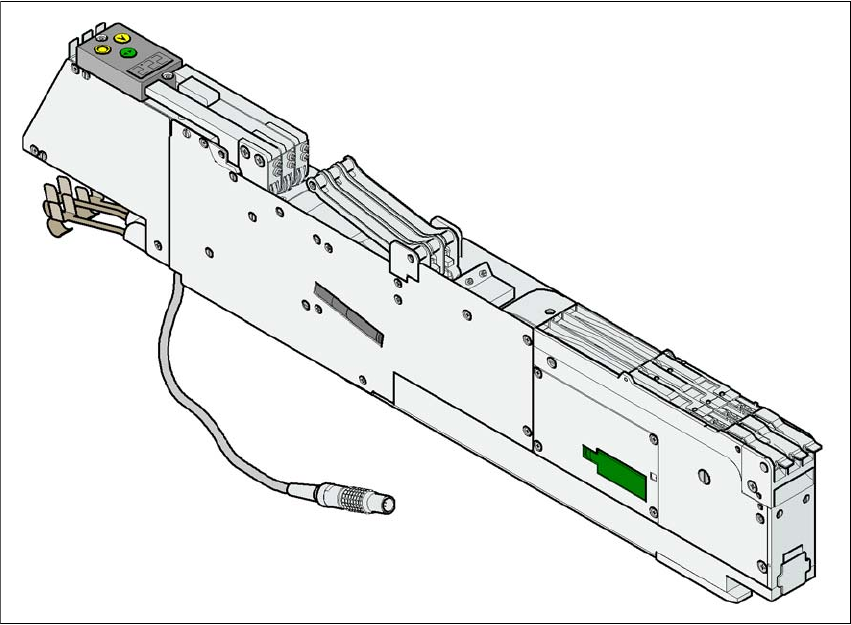

3.9.8.2 3 x 8 mm S tape feeder module
3
Fig. 3.9 - 2 3 x 8 mm S tape feeder module
Item no. 00141098-xx
Width 30.6 mm
Tracks per feeder module 3
Feeder module locations filled 1
Max. number of feeder modules per machine 4 x 15
Stock of components for 7" reels Approx. 4,000 to 10,000
Conveyor increment 2mm / 4mm / 8 mm
Tape material Paper or blister tape
Max. component height 2.5 mm
User Manual SIPLACE D3 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.9 Feeder modules
145

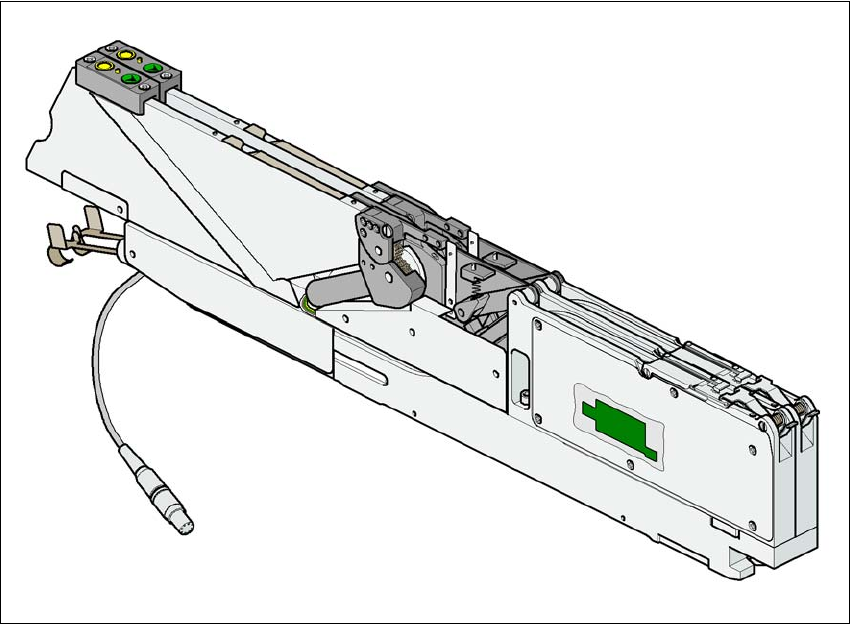

3.9.8.3 3 x 8 mm S tape feeder module for 0201/0402 components
3
Fig. 3.9 - 3 3 x 8 mm S tape feeder module for 0201/0402 components
Item no. 00141099-xx
Width 30.6 mm
Tracks per feeder module 3
Feeder module locations filled 1
Max. number of feeder modules per machine 4 x 15
Stock of components for 7" reels Approx. 10,000
Conveyor increment 2mm / 4mm
Tape material Paper tape
Max. component height 0.7 mm
Component range 0201/0402
