3 Technical data for the machine User Manual SIPLACE D3 3.9 Feeder modules From software version SR.605.xx 07/2008 EN Edition 152 3.9.8.10 56 mm S t ape feeder module Fig. 3.9 - 10 56 mm S tape feeder module Item no. 0 0…
User Manual SIPLACE D3 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.9 Feeder modules
151
3.9.8.9 44 mm S DP tape feeder module for deep pockets
Fig. 3.9 - 9 44 mm S DP tape feeder module for deep pockets
Item no. 00141194-xx
Width 54.6 mm
Tracks per feeder module 1
Feeder module locations filled 2
Max. number of feeder modules per machine 4 x 7
Tape height Up to 25 mm
Conveyor increment From 4 mm to 52 mm in 4 mm increments
Tape material Blister tape
Max. component height 24 mm
3 Technical data for the machine User Manual SIPLACE D3
3.9 Feeder modules From software version SR.605.xx 07/2008 EN Edition
152
3.9.8.10 56 mm S tape feeder module

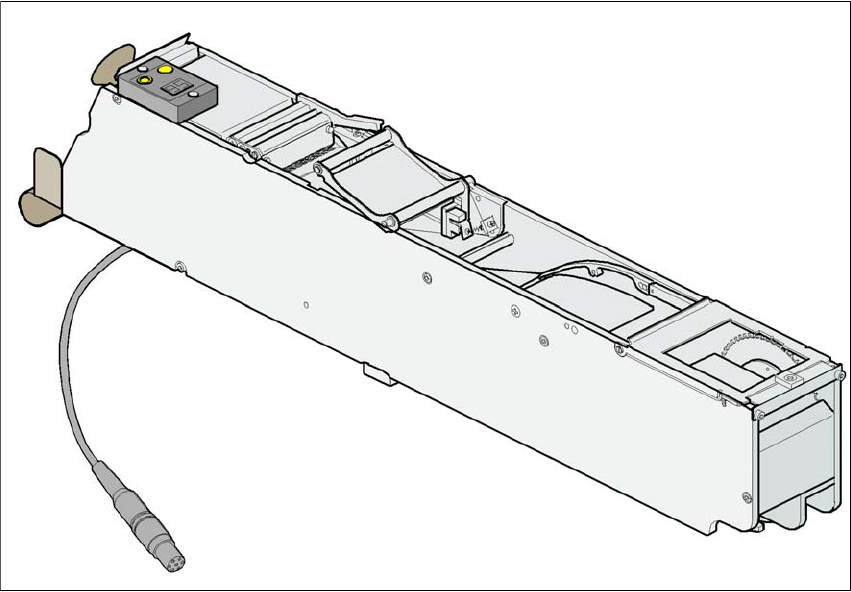

Fig. 3.9 - 10 56 mm S tape feeder module
Item no. 00141095-xx
Width 66.6 mm
Tracks per feeder module 1
Feeder module locations filled 2.5
Max. number of feeder modules per machine 4 x 6
Stock of components for 7" reels Approx. 2,000
Conveyor increment From 4 to 68 mm in 4 mm increments
Tape material Blister tape
Max. component height 14 mm
User Manual SIPLACE D3 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.9 Feeder modules
153
3.9.8.11 56 mm S DP tape feeder module for deep pockets
Fig. 3.9 - 11 56 mm S DP tape feeder module for deep pockets
Item no. 00141195-xx
Width 66.6 mm
Tracks per feeder module 1
Feeder module locations filled 2.5
Max. number of feeder modules per machine 4 x 6
Tape height Up to 25 mm
Conveyor increment From 4 mm to 68 mm in 4 mm increments
Tape material Blister tape
Max. component height 24 mm
