User Manual SIPLACE D3 3 Technical data for the machine From software version SR.605.xx 07/2008 EN Edition 3.9 Feeder modules 159 Technical data 3 3 3 3 Parameters for surf tape feeder modules 3 The para meters for the s…
3 Technical data for the machine User Manual SIPLACE D3
3.9 Feeder modules From software version SR.605.xx 07/2008 EN Edition
158
3.9.8.16 Surf tape feeder module
For placing bare dies, you will need the surf tape feeder module for feeding components. There
are versions of these feeder modules for 8 mm tapes and 12 or 16 mm tapes.
3
Fig. 3.9 - 16 Surf tape feeder module
Handling of the feeder module is described in the operating instructions for feeder modules.
User Manual SIPLACE D3 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.9 Feeder modules
159
Technical data 3
3
3
3
Parameters for surf tape feeder modules 3
The parameters for the surf tape feeder module can be modified on the SIPLACE Pro computer.
Tape widths 8/12/16 mm
Recommended tape and component
sizes
8 mm: for 1 x 1 mm² - 2.3 x 2.3 mm² components
12 mm: for 2.3 x 2.3 mm² - 5 x 5 mm² components
16 mm: for 3.8 x 3.8 mm² - 9.5 x 9.5 mm² components
Packaging accuracy of the bare die on the
surf tape
Bare die size up to 2.3 x 2.3 mm²: +/- 100 μm, 6 σ
Bare die size over 2.3 x 2.3 mm²: +/- 200 μm, 6 σ
(related to the center of the pocket)
Required distance between the edges of the
bare dies to the tape pocket min. 0.4 mm
Pusher needle Single or triple needle depending on the die size
Tape material Metric
Tape standard IEC 286-3, DIN-IEC-286, EIA 481, and JIS C 0806
Tape reel diameter 7" to 15"
Footprint of the feeder module 1 location on the component table
3 Technical data for the machine User Manual SIPLACE D3
3.9 Feeder modules From software version SR.605.xx 07/2008 EN Edition
160

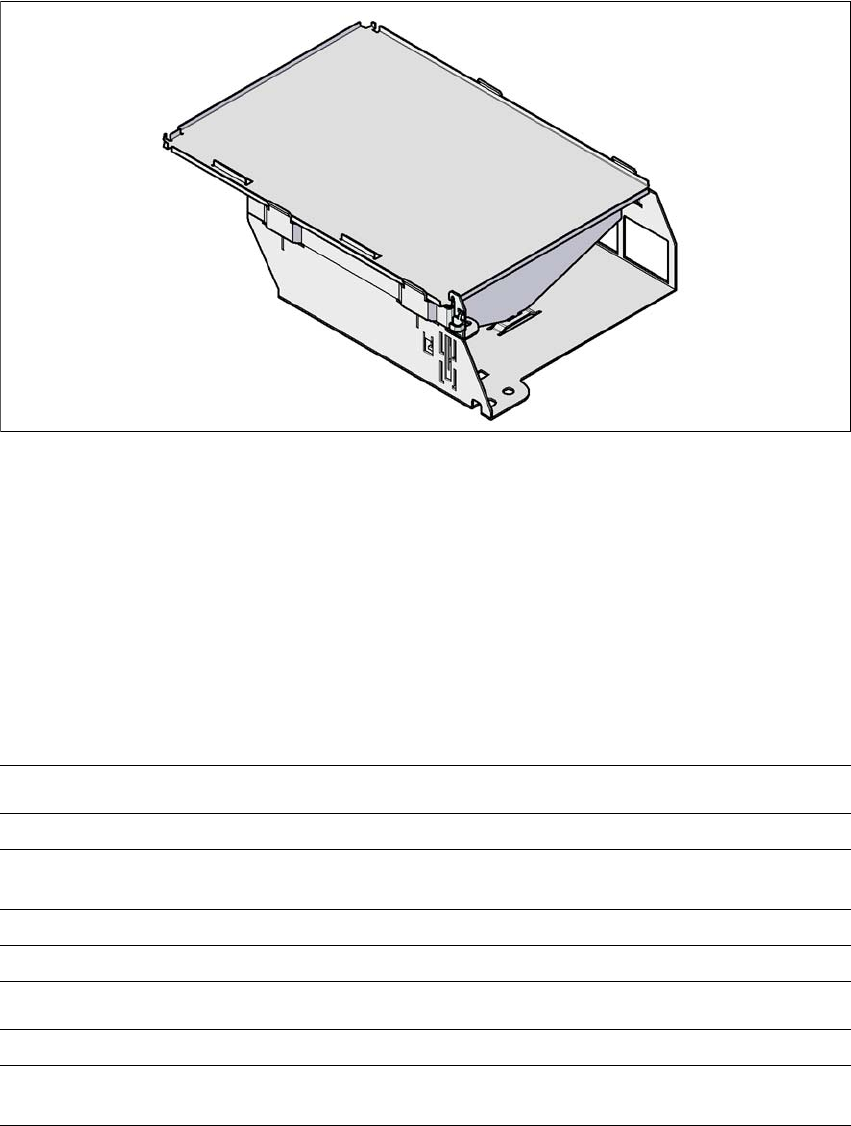

3.9.9 Waffle-pack tray holder
Item no. 00116430-01 Holder for large waffle-pack tray (260 x360mm²)
Item no. 00116432-01 Holder for small waffle-pack tray (136 x360mm²)
3
3.9.9.1 Description
The waffle-pack tray holder is a device for holding JEDEC trays used to supply components. The
holder is placed on the component table like a feeder module and the waffle-pack trays are
changed manually.
The tray holder set-up is recommended if there are just a few component types to be placed from
a waffle-pack tray.
3.9.9.2 Technical data
3
Holder for large waffle-pack tray
Dimensions LxWxH 425 x 264 x 113 mm³
Location filled on the
component table
9
Positioning options Locations 2 and 4
Range of placement heads TH, C&P6, C&P12
Holder for small waffle-pack tray
Dimensions LxWxH 425 x 140 x 113 mm³
Locations
filled on the component table
5
