3.9.9 Waffle-pack tray holder
Item no. 00116430-01 Holder for large waffle-pack tray (260 x360mm²)
Item no. 00116432-01 Holder for small waffle-pack tray (136 x360mm²)
3
3.9.9.1 Description
The waffle-pack tray holder is a device for holding JEDEC trays used to supply components. The
holder is placed on the component table like a feeder module and the waffle-pack trays are
changed manually.
The tray holder set-up is recommended if there are just a few component types to be placed from
a waffle-pack tray.
3.9.9.2 Technical data
3
Holder for large waffle-pack tray
Dimensions LxWxH 425 x 264 x 113 mm³
Location filled on the
component table
9
Positioning options Locations 2 and 4
Range of placement heads TH, C&P6, C&P12
Holder for small waffle-pack tray
Dimensions LxWxH 425 x 140 x 113 mm³
Locations
filled on the component table
5
User Manual SIPLACE D3 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.9 Feeder modules
161
3.9.9.3 Assembly
3

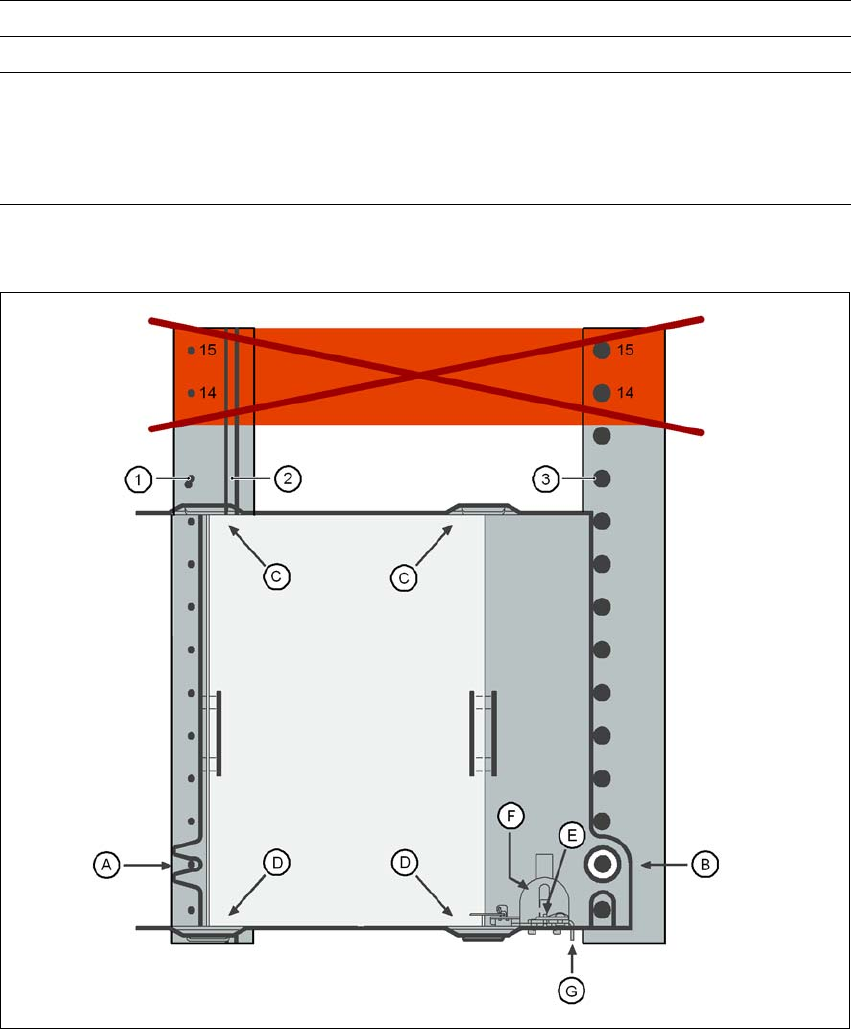

Fig. 3.9 - 17 Installation
(1) Centering pins
(2) Magnetic rail
(3) Centering ball
(14), (15) This position must not be filled.
Positioning options Locations 2 and 4
Range of placement heads TH, C&P6, C&P12
Max. waffle-pack tray height
including components
C&P12
C&P6
TH
12.5 mm
12.5 mm
28.5 mm
3 Technical data for the machine User Manual SIPLACE D3
3.9 Feeder modules From software version SR.605.xx 07/2008 EN Edition
162
PLEASE NOTE
– The waffle-pack tray holder can only be set up at locations 2 and 4.
– The feeder module positions 14 and 15 on the component table must not be filled.
– The holder and the nozzle changer cannot be used at the same time at location 4.
– The component trolley cannot be docked in/out while the holder is fitted.
→ Insert the front side of the waffle-pack tray holder into the associated centering pin (A in Fig.
3.9 - 17
, page 161).
→ Then position the hole on the rear side of the waffle-pack tray holder onto the centering ball
on the component feeder table (B in Fig. 3.9 - 17
, page 161).
→ Make sure the waffle-pack tray is resting securely on the component table.
→ Position one side of the waffle-pack tray carrier in the mounting (C in Fig. 3.9 - 17
, page 161).
Then press the other side into the mounting (D in Fig. 3.9 - 17
, page 161).
→ Slide the waffle-pack tray up against the stop (E in Fig. 3.9 - 17
, page 161).
→ Secure the waffle-pack tray carrier by pressing the thrust pad (F in Fig. 3.9 - 17
, page 161)
downwards.
→ To remove the waffle-pack tray carrier, press the thrust pad once more.
PLEASE NOTE
Using the holder for small waffle-pack trays (136 mm) a waffle-pack tray (JEDEC or CENELEC
waffle-pack tray) can be fitted directly to the holder, in other words, without a waffle-pack tray car-
rier being used. However, the retainer will require changing (G in Fig. 3.9 - 17, page 161).
WARNING
All locations must be equipped with feeder modules in order to guarantee operational reliability.
If there are not enough feeder modules available, unassigned locations should be fitted with a
hand guard (dummy feeder module). When a waffle-pack holder is set up, the remaining loca-
tions have to be protected again with a hand guard.
