User Manual SIPLACE D3 3 Technical data for the machine From software version SR.605.xx 07/2008 EN Edition 3.10 Component trolley 167 3 Fig. 3.10 - 3 Component trolley: front and back view (1) Chass is (2) Component t ab…
3 Technical data for the machine User Manual SIPLACE D3
3.10 Component trolley From software version SR.605.xx 07/2008 EN Edition
166
PLEASE NOTE:
At external set-up positions, you will need an external power supply for the component trolley
(see Section 3.10.6, page 171).
3

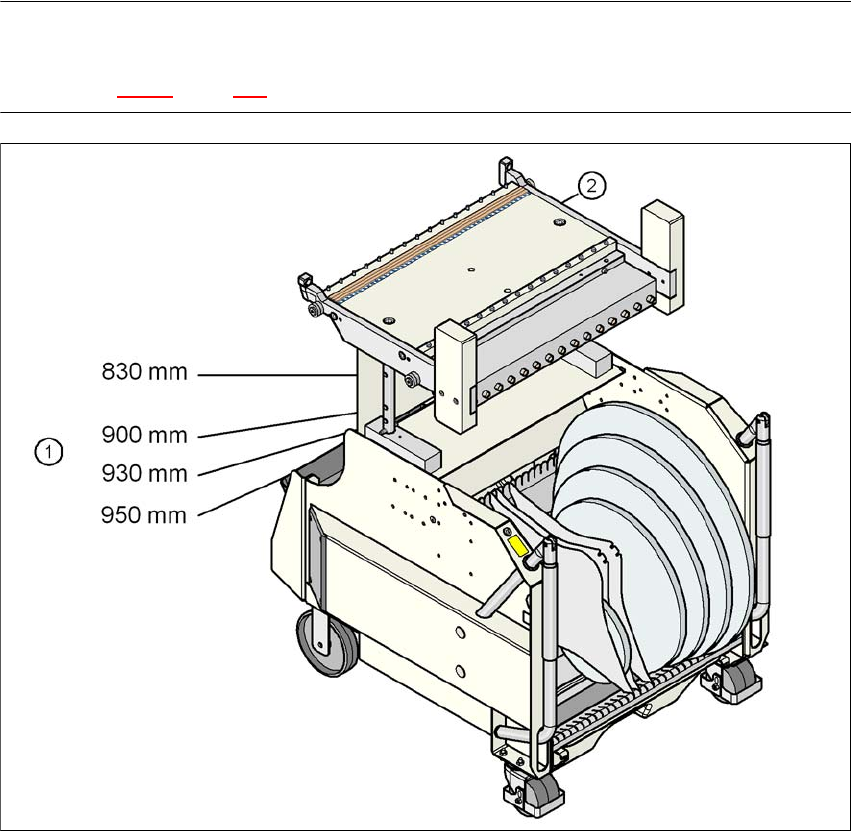

Fig. 3.10 - 2 Component trolley with a PCB conveyor height of 950 mm
3
(1) Holes in the guide columns for the conveyor heights of 830 to 950 mm
(2) Component trolley table
3.10.1 Structure
The component trolley essentially consists of the chassis, the component table for holding the
feeder modules, the communication unit, tape reel container and the waste container.
User Manual SIPLACE D3 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 Component trolley
167
3
Fig. 3.10 - 3 Component trolley: front and back view
(1) Chassis
(2) Component table
(3) Communication unit
(4) Tape reel container
(5) Waste tape container
(6) Interface for the main power supply, communication, the safety circuit and the compressed
air supply for the bulk case feeder module
(7) Handle
(8) Hand guard
3
3
3.10.2 Description
The chassis (item 1 in Fig. 3.10 - 3, page 167) runs smoothly and is easy to maneuver.
The handles (item 7 in Fig. 3.10 - 3
, page 167) can be folded up or down.
The component table (item 2 in Fig. 3.10 - 3
, page 167) has a capacity of up to 15 locations for 30
mm wide feeder modules. The feeder modules are mechanically centered on the table using cen-
tering pins and centering balls. The feeder modules are supplied with compressed air via a sepa-
rate compressed air bar.
The interface for the power module, communication and safety circuits (item 6) is beneath the
component feeder table bed. The compressed air supply for bulk case feeder modules also
passes via this interface.
3 Technical data for the machine User Manual SIPLACE D3
3.10 Component trolley From software version SR.605.xx 07/2008 EN Edition
168
PLEASE NOTE
All component trolleys or matrix tray changers must be docked on the machine in order to oper-
ate it. If they are not, the machine stays in EMERGENCY STOP status. The placement process
is interrupted.
The communication interface (item 3 in Fig. 3.10 - 3
, page 167) supplies the necessary voltages
and control signals to the feeder modules.
In the standard version, the tape reel container (item 4 in Fig. 3.10 - 3
, page 167) holds tape reels
up to 17" (432 mm). The pull-out waste tape container (item 5 in Fig. 3.10 - 3
, page 167) can be
found beneath the chassis. The cut waste tape travel down a chute into the waste container, which
must be regularly emptied.
3.10.3 Technical data
3
3
3
3
Length x width
728 x 592 mm²
752 x 592 mm² with waste container
Height
830 mm for 830 mm PCB conveyor height
900 mm for 900 mm PCB conveyor height
930 mm for 930 mm PCB conveyor height
950 mm for 950 mm PCB conveyor height
PCB conveyor height
830 mm ± 15 mm (standard)
900 mm ± 15 mm (option)
930 mm ± 15 mm (option)
950 mm ± 15 mm (SMEMA option)
Weight
Without feeder modules
With feeder module at all locations
88.9 kg
143.7 kg
Reel diameter
Standard
Maximum
Up to 432 mm (17")
483 mm (19")
Feeder module locations max. 15
