3.10.4 Dimensions and center of gravity
3

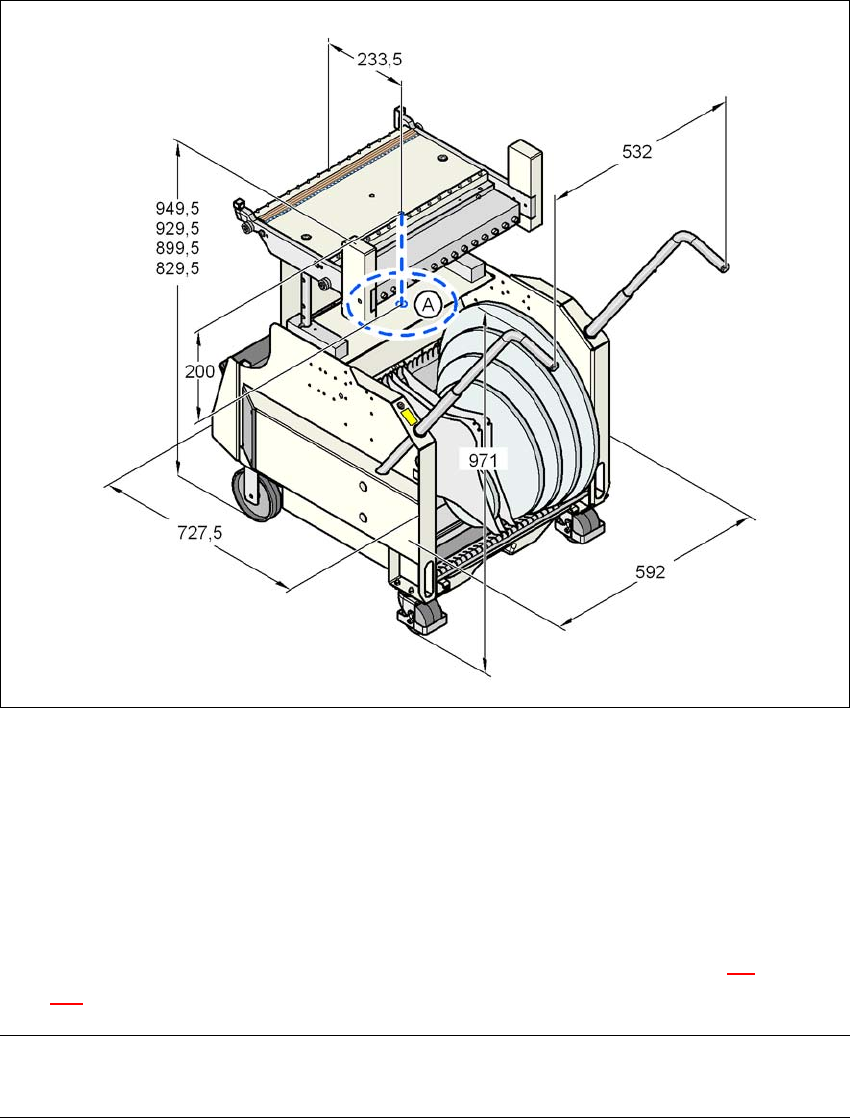

Fig. 3.10 - 4 Dimensions, all dimensions in millimeters
The center of gravity (A) of the component trolley was determined under the following conditions:
– Component trolley set to a PCB conveyor height of 830 mm.
3.10.5 Tape container
The tape container can hold reels up to 19" in diameter. You should use spindles to process reels
of 15" diameter or more. The insertion of separating plates is described in Section 5.5
on
page 266
.
PLEASE NOTE
For optimum operation, we recommend the use of spindles for 15" diameter or more.
3 Technical data for the machine User Manual SIPLACE D3
3.10 Component trolley From software version SR.605.xx 07/2008 EN Edition
170
3
Fig. 3.10 - 5 Component trolley with tape container
(1) Component trolley
(2) Position of the spindles
(3) Waste tape container
(4) Tape container
(5) Separating plate
(6) Spindle (enlarged)
3.10.5.1 Tape reel diameter in relation to the PCB conveyor height
3
Option – With support for 3rd tape reel
PCB conveyor height
of the component trolley
Tape reel diameter Tape reel diameter
830 mm 17" 15"
900 mm 19" 17"
User Manual SIPLACE D3 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 Component trolley
171
3.10.6 External power supply for the component trolley
Item no. 00119781-xx External power supply, component trolley, D1/D2/D3/HF/X
To keep the time required for a setup change as short as possible, component trolleys can be set
up in advance at a special external location. The feeder module functions and setting can be
checked there to prepare for use. We provide an external power supply for this purpose. It is used
to supply the component trolley with the required electrical power and compressed air.
3.10.6.1 Technical data
The kit contains a main power cable to European standards, a main power cable to US standards
and a connecting cable between the power supply and the component trolley.
3.10.7 Compressed air supply for bulk case feeder modules
Item no. 00142335-xx Bulk case compressed air distributor, CO trolley, SIPLACE HF/X/D3
Bulk case feeder modules require compressed air in order to work. A compressed air supply for
bulk case feeder modules is therefore available as an option.
It is easy to fit. First remove the sealing plug (item 1 in Fig. 3.10 - 6
, page 172) from the com-
pressed air connection on the component feeder table (item 2 in Fig. 3.10 - 6
, page 172). Then
use two screws DIN 912, M8x30 (item 4 in Fig. 3.10 - 6
, page 172) to fix the compressed air supply
(item 3 in Fig. 3.10 - 6
, page 172) to the component feeder table (item 2 in Fig. 3.10 - 6, page 172).
The compressed air supply has retaining clips (item 5 in Fig. 3.10 - 6
) on the back. They fix the
bulk case feeder modules to the component table and thus ensure a perfect compressed air sup-
ply.
930 mm 19" 17"
950 mm 19" 19"
Main power voltage 230 VAC ± 5%
120 VAC ± 5%
Compressed air connection Max. 1.0 MPa (10 bar)
Output pressure Can be regulated with a valve
