3.10.6 External power supply for the component trolley
Item no. 00119781-xx External power supply, component trolley, D1/D2/D3/HF/X
To keep the time required for a setup change as short as possible, component trolleys can be set
up in advance at a special external location. The feeder module functions and setting can be
checked there to prepare for use. We provide an external power supply for this purpose. It is used
to supply the component trolley with the required electrical power and compressed air.
3.10.6.1 Technical data
The kit contains a main power cable to European standards, a main power cable to US standards
and a connecting cable between the power supply and the component trolley.
3.10.7 Compressed air supply for bulk case feeder modules
Item no. 00142335-xx Bulk case compressed air distributor, CO trolley, SIPLACE HF/X/D3
Bulk case feeder modules require compressed air in order to work. A compressed air supply for
bulk case feeder modules is therefore available as an option.
It is easy to fit. First remove the sealing plug (item 1 in Fig. 3.10 - 6
, page 172) from the com-
pressed air connection on the component feeder table (item 2 in Fig. 3.10 - 6
, page 172). Then
use two screws DIN 912, M8x30 (item 4 in Fig. 3.10 - 6
, page 172) to fix the compressed air supply
(item 3 in Fig. 3.10 - 6
, page 172) to the component feeder table (item 2 in Fig. 3.10 - 6, page 172).
The compressed air supply has retaining clips (item 5 in Fig. 3.10 - 6
) on the back. They fix the
bulk case feeder modules to the component table and thus ensure a perfect compressed air sup-
ply.
930 mm 19" 17"
950 mm 19" 19"
Main power voltage 230 VAC ± 5%
120 VAC ± 5%
Compressed air connection Max. 1.0 MPa (10 bar)
Output pressure Can be regulated with a valve
3 Technical data for the machine User Manual SIPLACE D3
3.10 Component trolley From software version SR.605.xx 07/2008 EN Edition
172
3

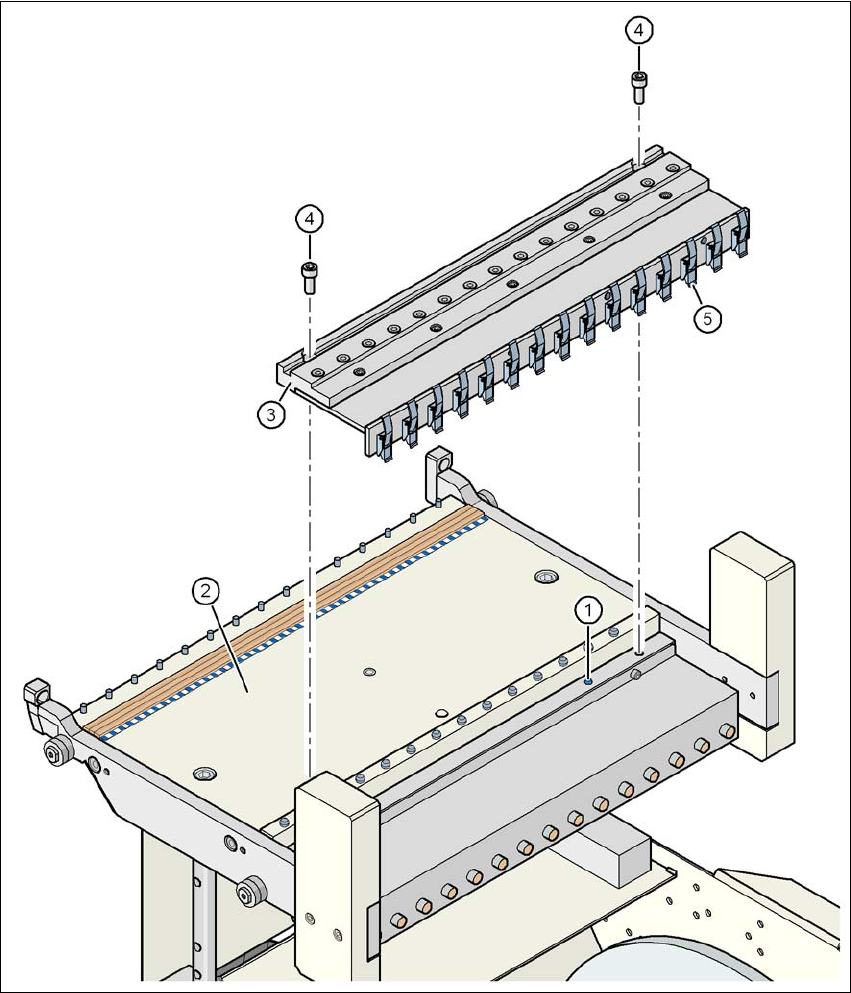

Fig. 3.10 - 6 Compressed air supply for bulk case feeder modules
(1) Sealing plug on the component table
(2) Component table
(3) Compressed air supply for bulk case feeder modules
(4) Screw DIN 912, M8x20
(5) Retaining clamp
User Manual SIPLACE D3 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 Component trolley
173
3.10.8 Reel holder for the middle tape reel on 3 x 8 mm S feeder modules
Item no. 00119643-xx Adapter plate for tape reel holder
Item no. 00141204-xx Tape reel holder, 3 x 8 mm feeder module, V2
Type 3 x 8 mm S feeder modules transport components to the pick-up position on three feeder
tracks. The tape reels of the two outer tracks are positioned between the separating plates in the
tape container. The middle tape reel is arranged over the tape reels for the two outer tracks.
For the middle tape reels you will therefore also need:
– 1 adapter plate for holding the tape reel holder (item 1 in Fig. 3.10 - 7
),
– for every two feeder modules, 1 tape reel holder (item 2 in Fig. 3.10 - 7
) and
– 1 shortened idler pulley (item 3 in Fig. 3.10 - 7
) for the tape reel holder at location 1 of the
component feeder table.
The adapter plate is fixed inside the component trolley with four fillister head screws, and the tape
reel holders are inserted into the square openings in the adapter plate.
3

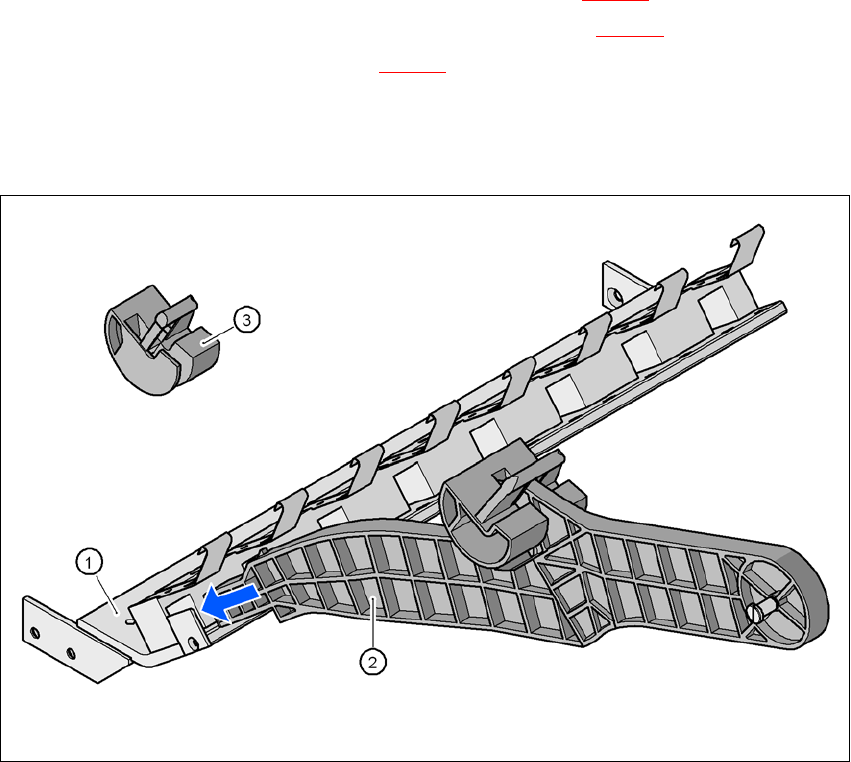

Fig. 3.10 - 7 Reel holder for the middle tape reel on 3x8 mm feeder modules
(1) Adapter plate
(2) Tape reel holder
(3) Idler pulley, shortened
