1.1.3 The SIPLACE principle
The principle of the "stationary component supply" and "stationary PCB", which has proved most
suitable for all SIPLACE machines, has a number of significant advantages:
– There are no downtimes for topping up components or splicing tapes.
– The vibration-free component feeder means that even the smallest components (e.g. 0201)
are picked up reliably.
– The PCB, which does not move during the placement process, prevents the components slip-
ping.
– The combination of placement heads with nozzle changers always guarantees an optimum
nozzle configuration for every placement process, thus minimizing traversing paths and opti-
mizing the placement sequence.
High flexibility, cost-effectiveness and set-up reliability combine to ensure that the SIPLACE D3
provides high productivity. Minimum down times increase utilization and thus help to increase pro-
ductivity.
1

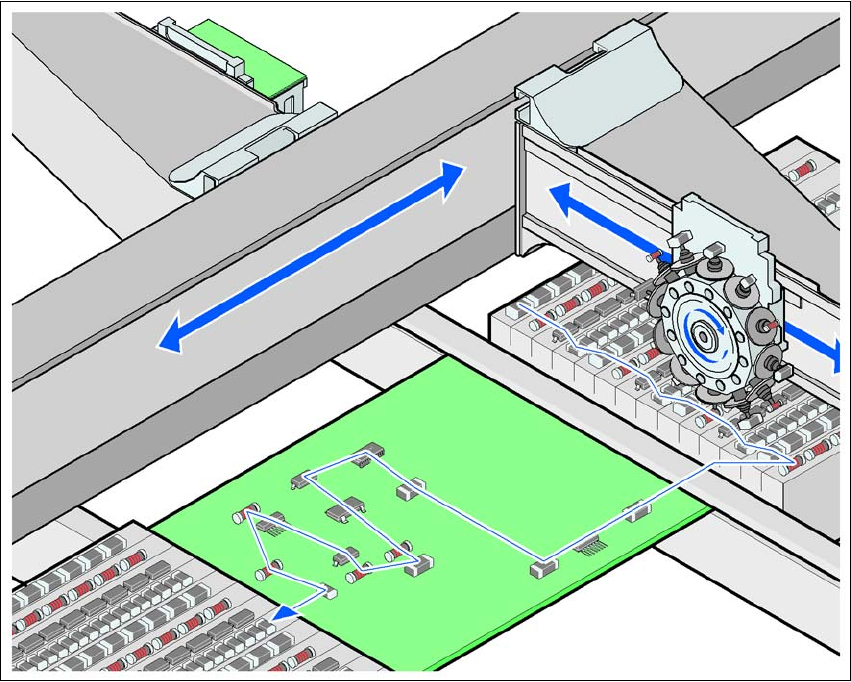

Fig. 1.1 - 2 Placement principle using the Collect&Place method
User Manual SIPLACE D3 1 Introduction
From software version SR.605.xx 07/2008 EN Edition 1.1 Description of the machine
19
1.1.4 New options and performance features
The following options are available to extend the machines' functionality:
– 3x8mm SL tape feeder module
SL means shutterless, that is without a component cover. Dispensing with unnecessary me-
chanical parts reduces the acquisition costs and maintenance costs for this feeder module.1
– Splice detection for tape feeder modules
Splice detection for tape feeder modules can be retrofitted on the machine.
– Waffle-pack changer
The waffle-pack changer may be docked at location 2.
– High-force head
It can process the same component range as the TwinHead and also offers the possibility of
achieving set-down forces up to 30 N.
– Placement head modularity
The TwinHead and the Collect&Place heads can be set up on all gantries.
1 Introduction User Manual SIPLACE D3
1.1 Description of the machine From software version SR.605.xx 07/2008 EN Edition
20
1.1.5 Serial number of the machine
The serial number of the machine can be found in two different places.
– The serial number, without leading zeros, e.g. B-1, is struck on the left-hand side of the ma-
chine frame, on the same side as the pneumatic unit (see item 1 in Fig. 1.1 - 3
).
– With leading zeros, e.g. B-001, the serial number is punched in the rating plate (see item 2 in
Fig. 1.1 - 3
).
1

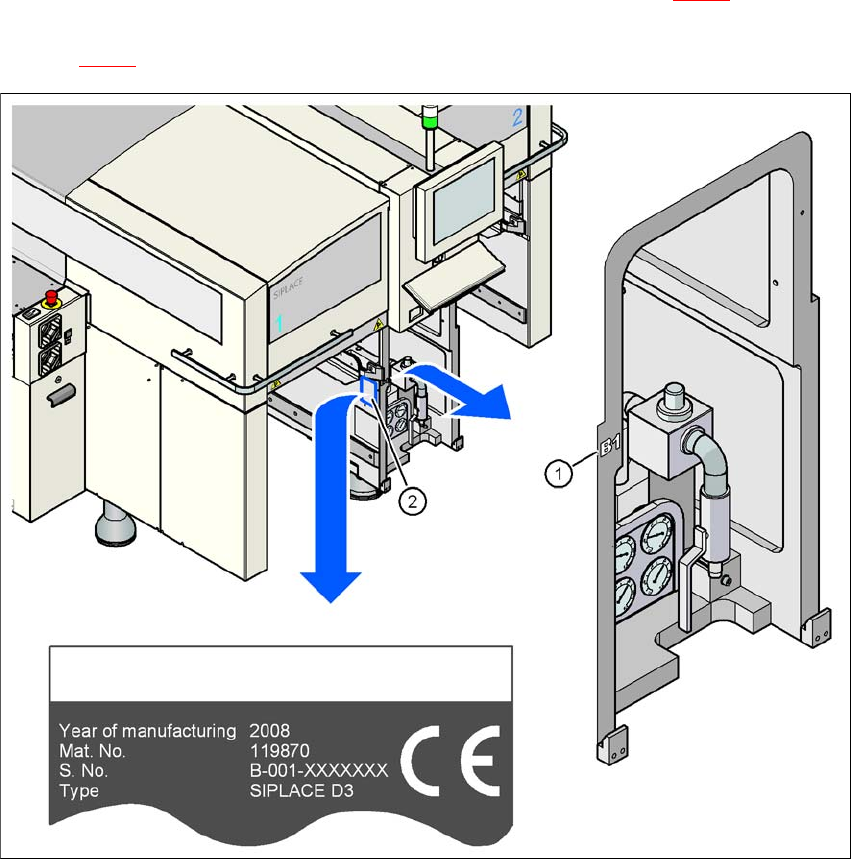

Fig. 1.1 - 3 Places with the serial number on the machine
