User Manual SIPLACE D3 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.3 Setting up the machine
213
4.3.8.2 Axis unit (gantry 3) - Connecting the plugs
→ Connect the power cable as shown in the following diagram:
4
4
→ Check the switch settings for S1
1: ON
2: Not used
Axis unit, plugs Connecting cable PLEASE NOTE
Plug Cable
X41_1sq X41_1sq 03050899 Snap connector into place
X42_1sq X42_1sq 03050899 Snap connector into place
X45sq X45sq 03050900-W1 Snap connector into place
X46sq X46sq
03050900-W2
03050900-W3
Snap connector into place
X47sq X47sq
03050900-W4
03050900-W5
Snap connector into place
X05_3sq X4ur 03050901 Snap connector into place
X06_3sq X4ut 03050902 Snap connector into place
X05_1sq X1uo 03009811 Insert as far as the stop
X06_1sq X3uo 03009812 Insert as far as the stop
X07_1sq X5uo 03009813 Insert as far as the stop
X08_1sq X1up 03009814 Insert as far as the stop
X11_1sq X3up 03009815 Insert as far as the stop
X12_1sq X5up 03009816 Insert as far as the stop
X07_3sq X07_3sq 03050903 Snap connector into place
X08_3sq X08_3sq 03050904 Snap connector into place
X11_3sq X11_3sq 03050906 Snap connector into place
X12_3sq X12_3sq 03050905 Snap connector into place
X30_1sq X30_1sq 03010054 Screw tightly
X30_2sq X30_2sq 03010054 Screw tightly
4 Setting up and commissioning User Manual SIPLACE D3
4.3 Setting up the machine From software version SR.605.xx 07/2008 EN Edition
214
4.3.8.3 Fitting the axis unit
→ Carefully lift the axis unit onto the rail in the extension kit.
→ Make sure that you do not squash any cables.
→ Push the axis unit into the extension kit as far as the stop.
→ Secure the axis unit with the fillister head screw.
→ Insert the cover.
→ Fix the grounding cable to the doors (item 2 in Fig. 4.3 - 8
, page 207),
as shown in Fig. 4.3 - 9
on page 210.
→ Lock the doors.
4.3.8.4 Fitting the side plates
→ Fix the grounding cable to each side plate (item 6 in Fig. 4.3 - 8, page 207), as shown in Fig.
4.3 - 9
page 210.
→ Fix the side plate to the machine frame with 6 fillister head screws.
PLEASE NOTE 4
If you have dismantled the output conveyor, continue from Section 4.3.9
" Fitting the input con-
veyor" on page 215.
Once the input conveyor is fitted, then continue the assembly work from Section 4.3.14
"Fitting
the indicator lamps" on page 232.
User Manual SIPLACE D3 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.3 Setting up the machine
215
4.3.9 Fitting the input conveyor
4.3.9.1 Tools
– Allen keys, DIN 911, set
– Phillips screwdriver, size 1
4.3.9.2 Assembly
4

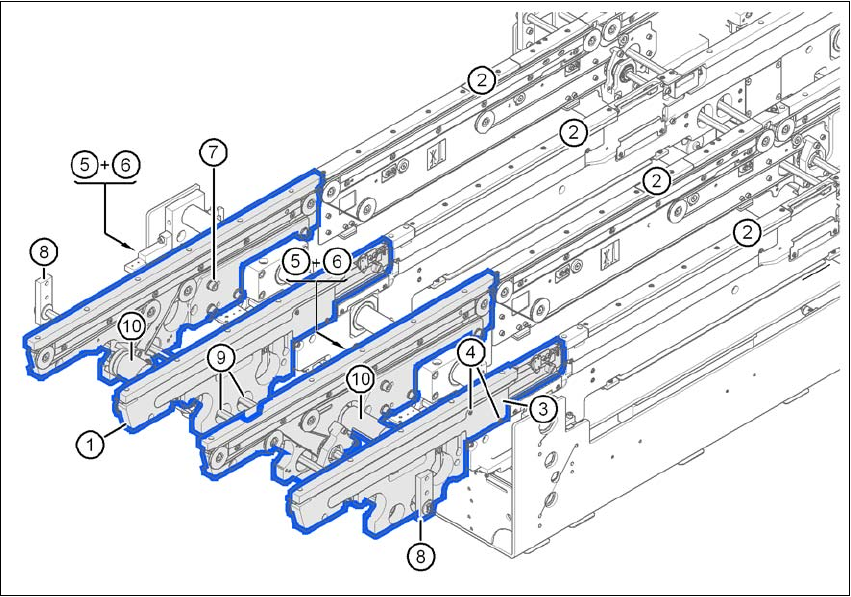

Fig. 4.3 - 12 Input conveyor - dual conveyor
(1) Rail, input conveyor
(2) Rail, processing conveyor 1
(3) Cable cover 20 x 200
(4) Countersunk screw, ISO 7046, M3x6, 2x per cable cover
(5) Cable cover 20 x 310
(6) Fillister head screw DIN 912, M3x5, 1x per cable cover
(7) Fillister head screw DIN 912, M6x16, and washer, 4x per rail
(8) Guide for hexagonal shaft
(9) Hexagonal shaft (single conveyor: one, dual conveyor: two)
(10) Drive unit
