4 Setting up and commissioning User Manual SIPLACE D3
4.3 Setting up the machine From software version SR.605.xx 07/2008 EN Edition
218
→ Release the two horizontal tensioners (item 6 in Fig. 4.3 - 13, page 217).
CAUTION 4
Do not unscrew the three bottom screws straight away. Simply loosen them so that the side
plate does not fall off.
→ Detach the ground cable from the side plate.
→ Remove both doors (item 2 in Fig. 4.3 - 13
, page 217) from the extension kit (item 1).
PLEASE NOTE: 4
To avoid damage, we recommend that a second person helps to assemble the extension kit.
→ Set down the computer unit / box PC unit
a
(item 8 in Fig. 4.3 - 13, page 217) and the axis unit
(item 9 in Fig. 4.3 - 13
, page 217) at the side of the machine in order to make enough space
to fit the extension kit (item 1 in Fig. 4.3 - 13
, page 217).
→ Make sure that the connecting cables to the computer unit / box PC unit
a
and the axis unit
are not too tight.
→ Lift the extension kit (item 1 in Fig. 4.3 - 13
, page 217) against the machine frame and position
it so that the assembly bracket lies on the drawer unit rail (item 7 in Fig. 4.3 - 13
, page 217).
CAUTION 4
Make sure that the extension kit does not collide with the hexagonal shaft of the PCB con-
veyor and thus become bent.
→ Fix the extension kit using 4 fillister head screws M6x16 and the associated washers (item 3
in Fig. 4.3 - 13
, page 217).
4.3.10.3 Fitting the guide for the hexagonal shaft
→ On the single conveyor, fix one guide for the hexagonal shaft (item 8 in Fig. 4.3 - 12) to the
extension kit using two fillister head screws M6x16 and washers.
→ On the double conveyor, fix two guides for the hexagonal shaft (item 8 in Fig. 4.3 - 12
) to the
extension kit using two fillister head screws M6x16 and washers.
a) See Section 4.3.11, page 221
User Manual SIPLACE D3 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.3 Setting up the machine
219
4.3.10.4 Producing cable connections - extension kit on the PCB input side
4
Left-hand side of the extension kit
(viewed in the direction of travel)
Connector/cable To connector/
cable
Start/stop button
Switch, PCB conveyor cover
X61/03020410 X61/03002537
Protective cover switch, location 4
X54/03020409 X54/03002540
Button for the component trolley docking unit, loca-
tion 4
X242/03021056 X242/03021054
Right-hand side of the extension kit
(viewed in the direction of travel)
Connector/cable To connector/
cable
EMERGENCY STOP button
Start/stop button
X64/03020687 X64/03002538
Protective cover switch, location 1
X51/03020409 X51/03002539
Button for the component trolley docking unit, loca-
tion 1
X212/03021056 X212/03021051
4 Setting up and commissioning User Manual SIPLACE D3
4.3 Setting up the machine From software version SR.605.xx 07/2008 EN Edition
220
4.3.10.5 Fitting the grounding cable for the doors
→ Fix the two grounding cables for the doors (item 4 in Fig. 4.3 - 13, page 217) to the machine
frame as follows:
4

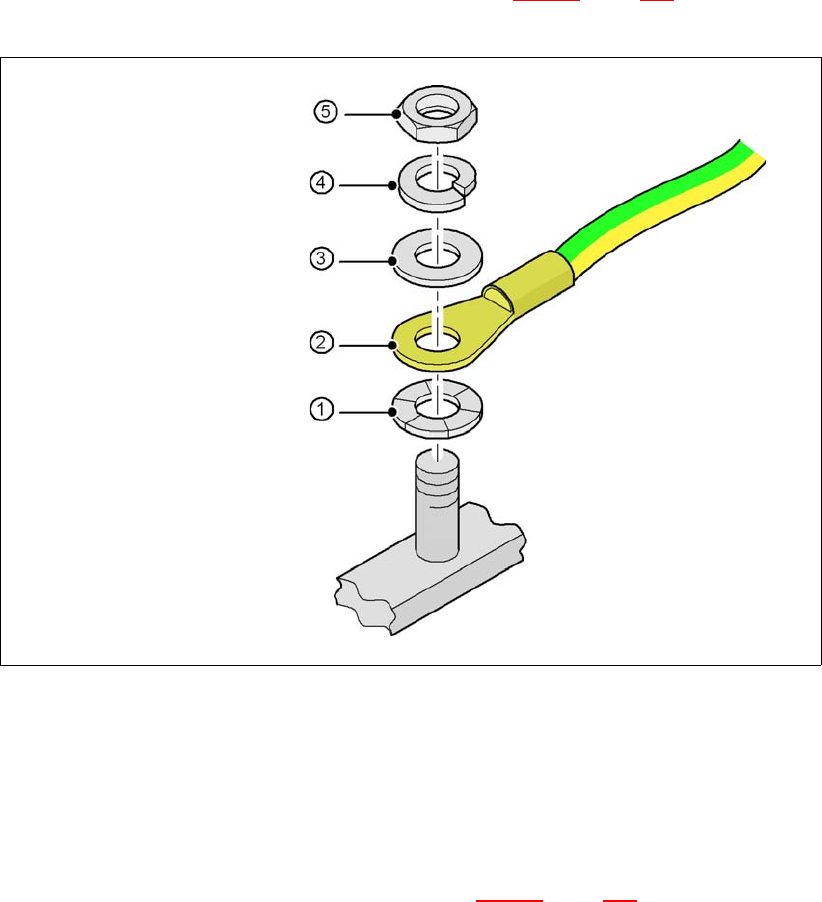

Fig. 4.3 - 14 Fitting the grounding cable
4
4
4
4
4
4.3.10.6 Checking and setting the protective cover switch
→ Check that the protective cover switch (item 7 in Fig. 4.3 - 15, page 221) is working correctly.
→ Adjust the protective cover switch if necessary (see service manual).
4
Hex nut M5
Spring washer M5, DIN 7980
Washer M5, DIN 125
Cable lug, annular
Contact washer
