4.3.16.5 Machine foot clearances for the machine and MTC
4
4
4
4

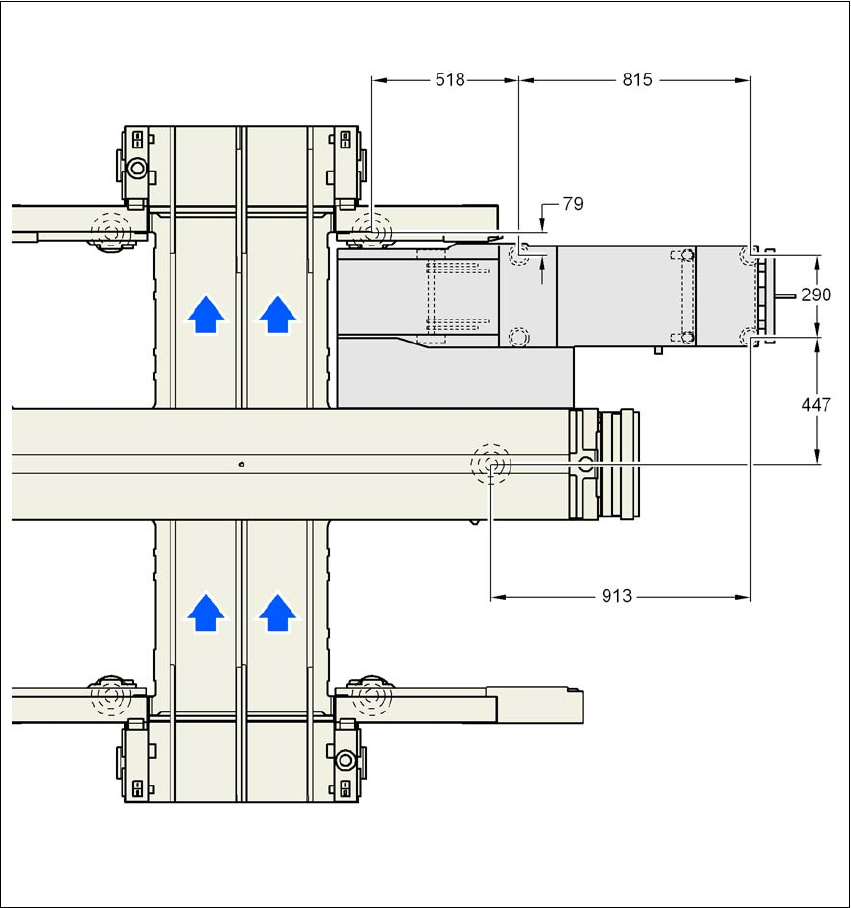

Fig. 4.3 - 26 Machine foot clearances for the machine and MTC in millimeters
User Manual SIPLACE D3 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.3 Setting up the machine
239
4.3.16.6 Machine foot clearances for the machine and WPC
4
4
4
4

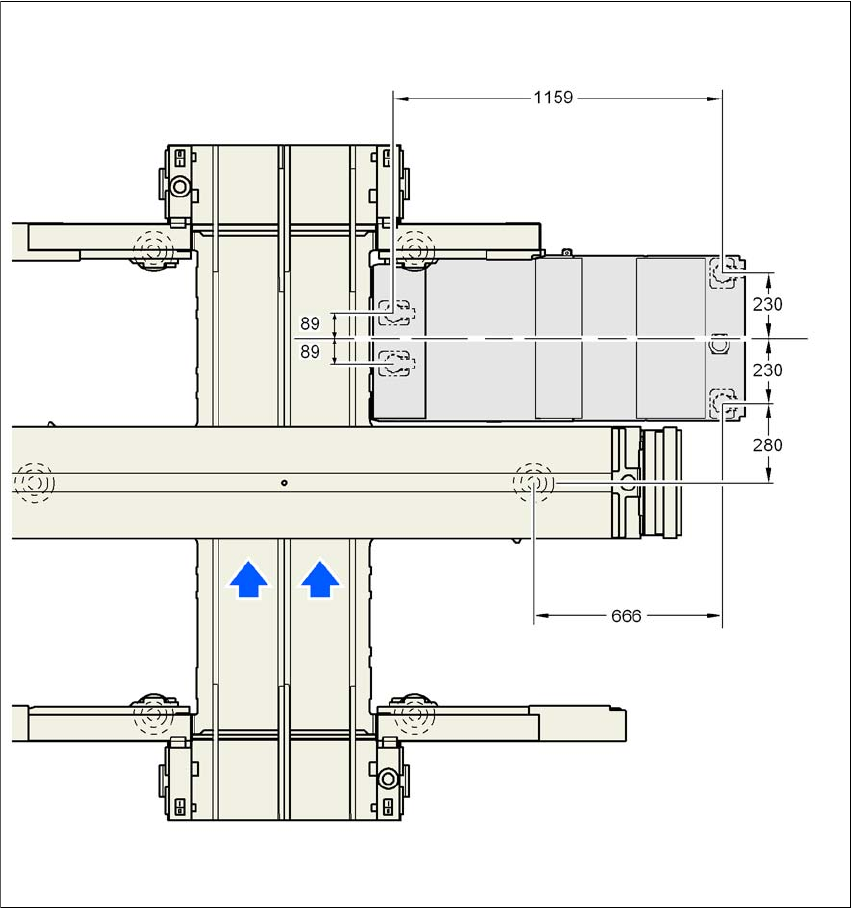

Fig. 4.3 - 27 Machine foot clearances for the machine and WPC in millimeters
4 Setting up and commissioning User Manual SIPLACE D3
4.3 Setting up the machine From software version SR.605.xx 07/2008 EN Edition
240
4.3.17 Integrating the machine into the line
→ Note the warning instructions described in Section 4.3.2, page 195.
→ The tools and equipment are listed in Section 4.3.3
, page 196.
4.3.17.1 Positioning the fork lift
4
Fig. 4.3 - 28 Contact surfaces - Forks across the direction of PCB transport
(1) Contact surfaces for the forks of the fork-lift
→ Position the fork-lift across the direction of PCB transport and open the forks far enough so
that the machine's contact surface lies evenly on the forks (see Fig. 4.3 - 28
).
