5.4 Changing shift

PLEASE NOTE: 5

You will find additional information in the following manuals or data media:

– Getting Started with Station Software 605.xx

– SIPLACE D3 preventive maintenance manual

– Parts catalog on the product CD

5.4.1 Activities at shift change

→ Splice the tapes early. The feeder modules do not have to be refilled as soon as the new shift

starts. This minimizes extended down times.

→ At the shift change, pass important information on to the next operator. This includes, for in-

stance, changes to the placement program. Also read through the list of the descriptions of

the steps to take in Section 5.7

, page 273.

→ Carry out a set-up check.

Make sure that the feeder modules are equipped with the correct components, that they are

at the correct locations in the component trolley and that the conveyor increment is set cor-

rectly.

→ Hand over the line in the same state that you would want to find it in when starting your shift.

This means that:

– The rejection containers are empty.

– The waste tape containers are empty. Follow the safety instructions given in Section

5.4.2

, page 265.

– The feeder areas have been carefully cleaned with a vacuum cleaner.

User Manual SIPLACE D3 5 Tasks for the operating personnel

From software version SR.605.xx 07/2008 EN Edition 5.4 Changing shift

265

5.4.2 Safety instructions for emptying the waste tape container

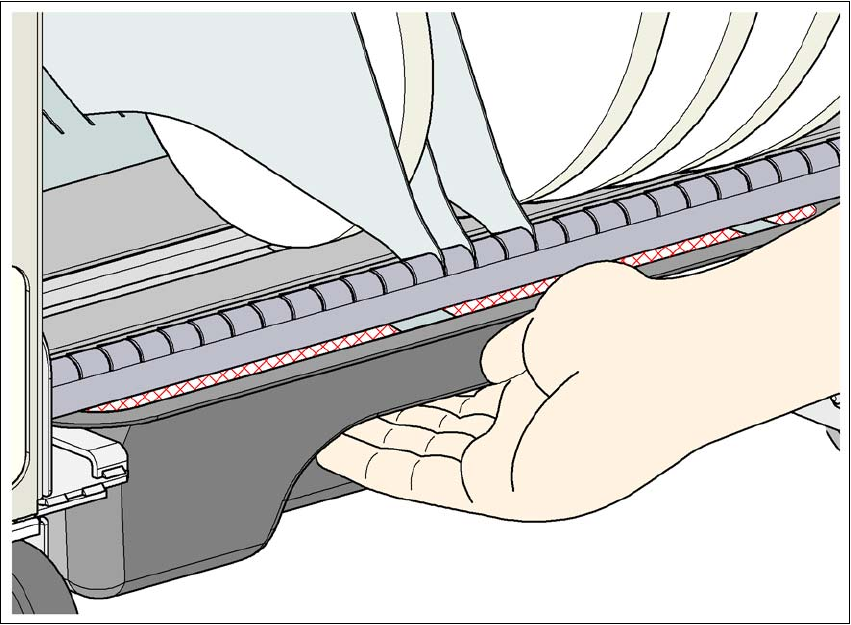

Fig. 5.4 - 1 Safety instructions for emptying the waste tape container

The waste tape container must be pulled out of the component trolley for emptying. There is a risk

of catching your thumbs as you do so.

→ To avoid this risk, hold the waste tape container with your fingers on the underside of the han-

dle and place your thumb on the handle.

→ Do NOT put your thumbs in the gap between the tape container and waste tape container as

you could catch your thumbs if you do.

5 Tasks for the operating personnel User Manual SIPLACE D3

5.5 Carrying out a walk-through inspection From software version SR.605.xx 07/2008 EN Edition

266

5.5 Carrying out a walk-through inspection

5.5.1 Checking the S feeder modules

→ Make sure that the tape is correctly placed in the springs of the S feeder module.

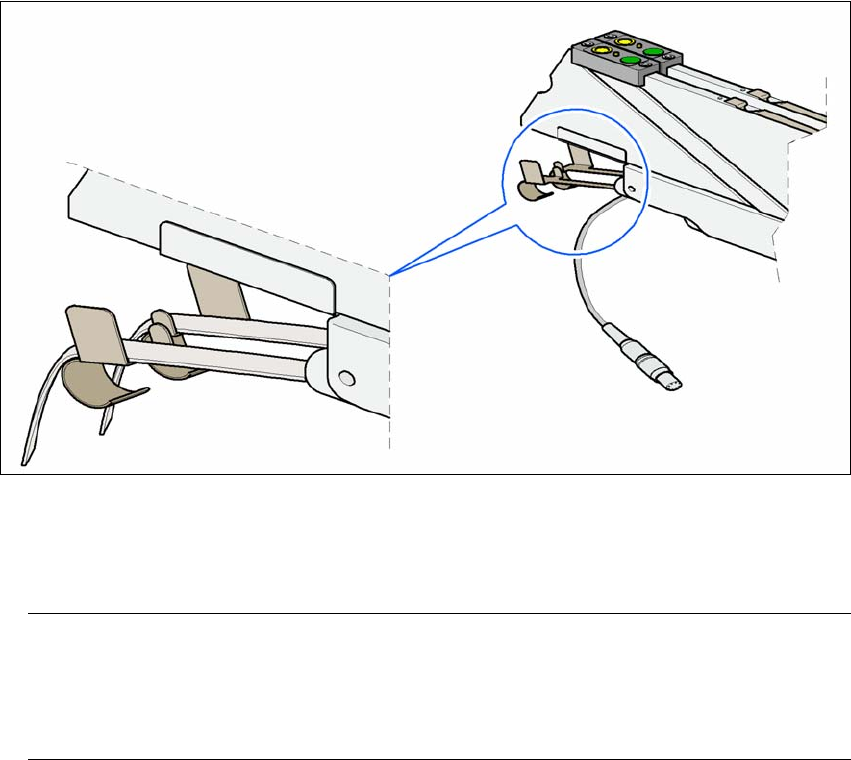

Fig. 5.5 - 1 Placing the tape in the springs of the S feeder module

→ Check to see whether the tape foil removal container for the S feeder module is full.

If it is full, then pull out the foil and cut it off with scissors.

PLEASE NOTE

Tearing the foil instead of cutting it can lead to problems with the tape removal mechanism.

For this reason the 3 x 8 mm feeder modules are fitted with an integral cutter. This is in the

tape foil removal container at the end of the feeder module under the flaps. 5

→ Check to ensure that the pick-up window on combination feeder modules (24/32 mm) is the

right size for the component.

→ Check to see whether tape guides are inserted on combination feeder modules (24 mm /

32 mm).
