User Manual SIPLACE D3 5 Tasks for the operating personnel From software version SR.605.xx 07/2008 EN Edition 5.10 Docking the component trolley in or out 277 5.10 Docking the component trolley in or out 5.10.1 Safety in…
5 Tasks for the operating personnel User Manual SIPLACE D3
5.9 Refilling components From software version SR.605.xx 07/2008 EN Edition
276
5.9 Refilling components
The online help contains information on refilling components with and without barcodes.
→ With tape feeder modules, make sure that you always splice on a new tape early enough so
that the feeder modules do not run out of components.
→ However, do not splice the tapes too early because if you wind the tape onto the new reel
after splicing the end of the old tape, the reel with the new tape may be overfilled. The tape
could then slip off the reel and become tangled. Under certain circumstances, this could
cause pick-up errors and prolonged down times.
→ Always insert spindles when using tape reels of 15" (381 mm) and larger (see Fig. 5.5 - 3
,
page 269
) and make sure that the separating plates are inserted correctly (see Fig. 5.5 - 2,
page 268
).
User Manual SIPLACE D3 5 Tasks for the operating personnel
From software version SR.605.xx 07/2008 EN Edition 5.10 Docking the component trolley in or out
277
5.10 Docking the component trolley in or out
5.10.1 Safety instructions for docking the component trolley in or out
WARNING
To prevent accidents (risk of crushing), the component trolley may only be docked in or out by
one person.
5
Fig. 5.10 - 1 Button for docking component trolleys in and out
(1) Button for docking the component trolley in or out, location 1
(2) Button for docking the component trolley in or out, location 2
(3) Button for docking the component trolley in or out, location 3
(4) Button for docking the component trolley in or out, location 4
(T) Direction of PCB transport
5 Tasks for the operating personnel User Manual SIPLACE D3
5.10 Docking the component trolley in or out From software version SR.605.xx 07/2008 EN Edition
278
The safety concept for the component trolley change requires the operator to press a button (item
1, 2, 3 or 4 in Fig. 5.10 - 1
, page 277) on the input or output side of the machine in order to dock
the component trolley in or out. This ensures that the operator is always standing to the side of
the machine. In addition, the component trolley can only be docked in if the protective covers are
closed.
5.10.2 Docking out the component trolley
→ Press one of the buttons on the input or output side of the machine (item 1, 2, 3 or 4 in Fig.
5.10 - 1
, page 277) until the CO trolley is docked out fully.
→ Swivel the two handles up (item 1 in Fig. 5.10 - 2
).
5

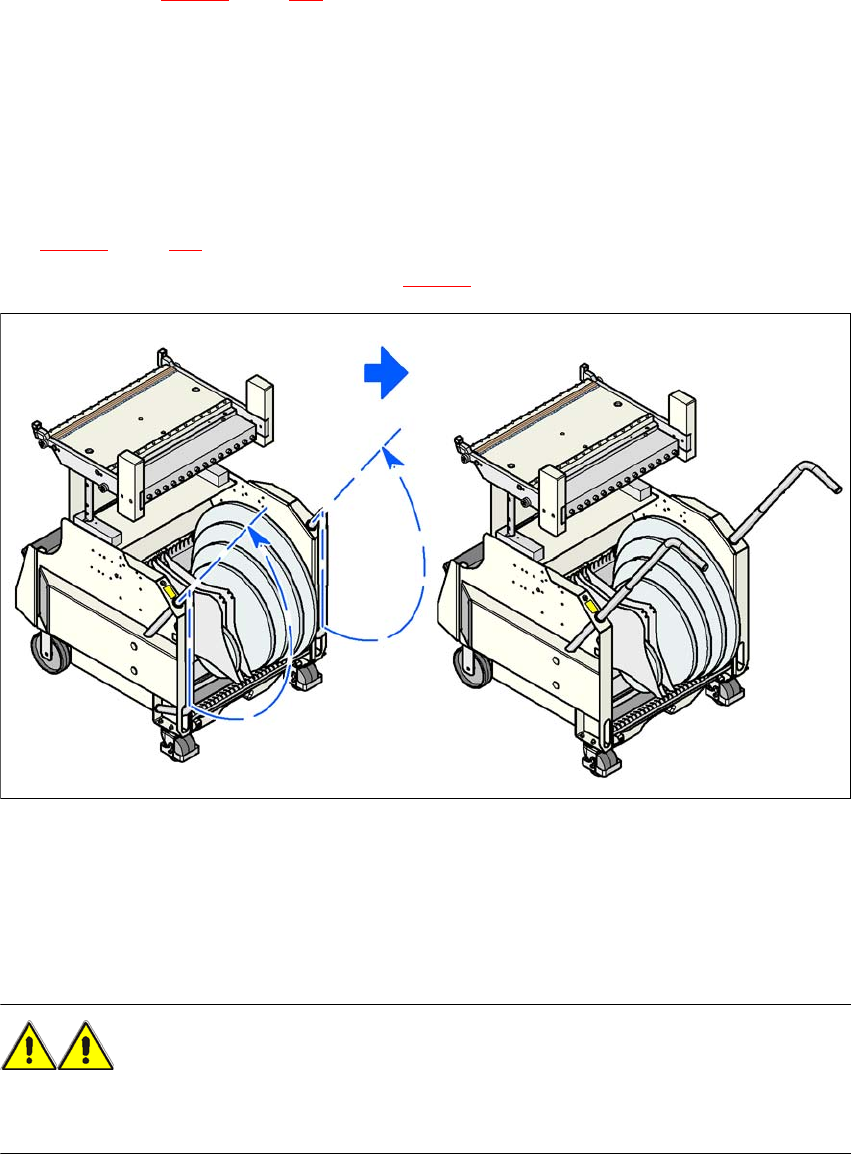

Fig. 5.10 - 2 Component trolley - swivel handles up to push
5
→ With both hands on the handles, pull the component trolley out of the machine.
5.10.3 Safety instructions for moving the component trolley
WARNING
To prevent accidents, ALWAYS follow the rules listed below when you move the component trol-
ley.
