6 Station extensions User Manual SIPLACE D3 6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition 282 6.1.1.1 Description This nozzle changer can hold up to 5 magazin es , each with 12 nozzle ho lders. Th…
User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
281
6 Station extensions
6.1 Nozzle changer
Nozzle changers can greatly increase the flexibility of the placement heads for processing differ-
ent types of component. If the placement program requires a nozzle change, then the placement
head automatically returns the old nozzle to the nozzle holder and picks up the new nozzle. Noz-
zles that were separated out during the vacuum check can also be quickly changed.
It is significantly more exact and faster to pick up nozzles from a nozzle changer than would be
possible manually. When placing small components, it is essential to minimize the radial eccen-
tricity during nozzle rotation.
6
6
6.1.1 Nozzle changer for the 12-segment Collect&Place head
Item no. 00119661-xx Nozzle changer HF/X/D3, 12-segment C&P head
6

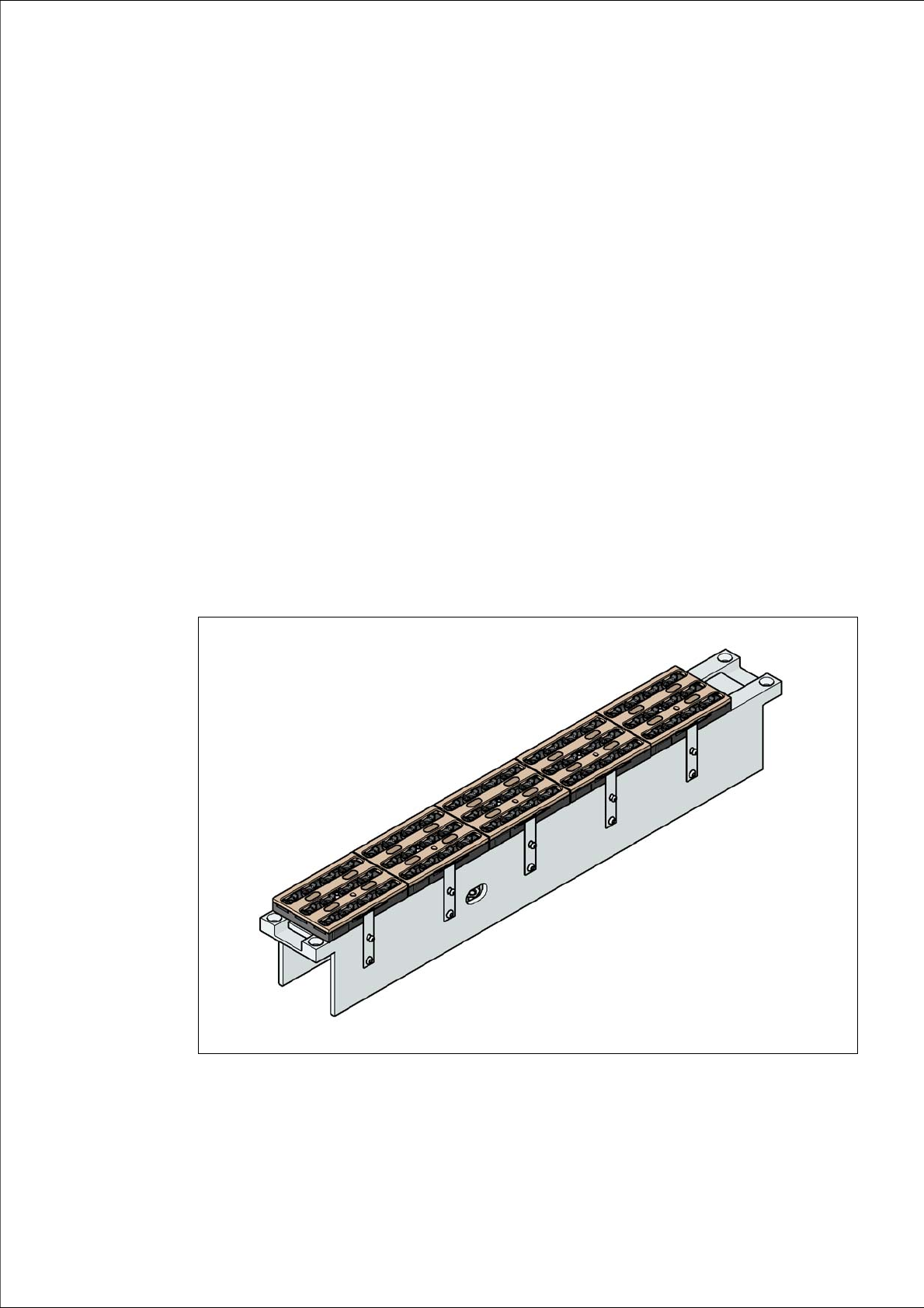

Fig. 6.1 - 1 Nozzle changer for the 12-segment Collect&Place head
6 Station extensions User Manual SIPLACE D3
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
282
6.1.1.1 Description
This nozzle changer can hold up to 5 magazines, each with 12 nozzle holders. The magazines
are seated on a common support. They are centered using two parallel pins and fixed in place with
clips.
6.1.1.2 Technical data
6
Nozzle changer for the 12-segment Collect&Place head
Dimensions (length x width x height) 449 x 62.7 x 77.7 mm³
Number of nozzle holders 60
Nozzle types 9xx
Nozzle changeover time approx. 2s per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
283
6.1.1.3 Position of the nozzle changers for the C&P12 head
1 or 2 nozzle changers may be installed at locations 1, 3 and 4 for the 12-segment Collect&Place
head (items 1 and 2 in Fig. 6.1 - 2
). This gives a total capacity of 7 nozzle changers with 35 mag-
azines and a total of 420 nozzle holders.
6
Fig. 6.1 - 2 Position of the nozzle changers for the 12-segment Collect&Place head
6
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
