6 Station extensions User Manual SIPLACE D3 6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition 290 6.1.2.2 T echnical data 6 Nozzle changer for the 6-segment Colle ct&Place head Dimensions (length …
User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
289
6.1.2 Nozzle changer for the 6-segment Collect&Place head
Item no. 00119662-xx Nozzle changer HF/X/D3, 6-segment C&P head
6

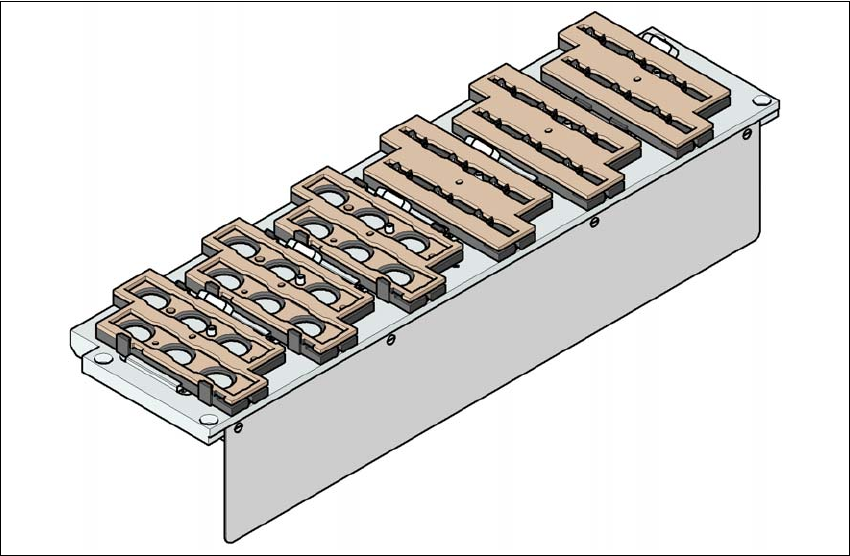

Fig. 6.1 - 7 Nozzle changer for the 6-segment Collect&Place head
6.1.2.1 Description
This nozzle changer can hold up to 6 magazines, each with 6 nozzle holders. There are two types
of magazine available: magazines for type 8xx nozzles and magazines for type 9xx nozzles. The
magazines are seated on a common support. They are centered using two parallel pins and fixed
in place with clips.
6 Station extensions User Manual SIPLACE D3
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
290
6.1.2.2 Technical data
6
Nozzle changer for the 6-segment Collect&Place head
Dimensions (length x width x height) 448 x 122.5 x 97.7 mm³
Number of nozzle holders 6
Nozzle types 8xx, 9xx
Nozzle changeover time approx. 2s per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
291
6.1.2.3 Position of the nozzle changers for the C&P6 head
1 or 2 nozzle changers may be installed at locations 1, 3 and 4 for the 6-segment Collect&Place
head (items 1 and 2 in Fig. 6.1 - 8
). This gives a total capacity of 7 nozzle changers with 42 mag-
azines and a total of 252 nozzle holders.
6
Fig. 6.1 - 8 Position of the nozzle changers for the C&P6 head
(1) "Row 1" nozzle changer
(2) "Row 2" nozzle changer
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
6
