6 Station extensions User Manual SIPLACE D3 6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition 292 6.1.2.4 Assembly The "Row 1" nozzle ch anger (see Fig. 6.1 - 9 ) is fixed t o the compone nt…
User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
291
6.1.2.3 Position of the nozzle changers for the C&P6 head
1 or 2 nozzle changers may be installed at locations 1, 3 and 4 for the 6-segment Collect&Place
head (items 1 and 2 in Fig. 6.1 - 8
). This gives a total capacity of 7 nozzle changers with 42 mag-
azines and a total of 252 nozzle holders.
6

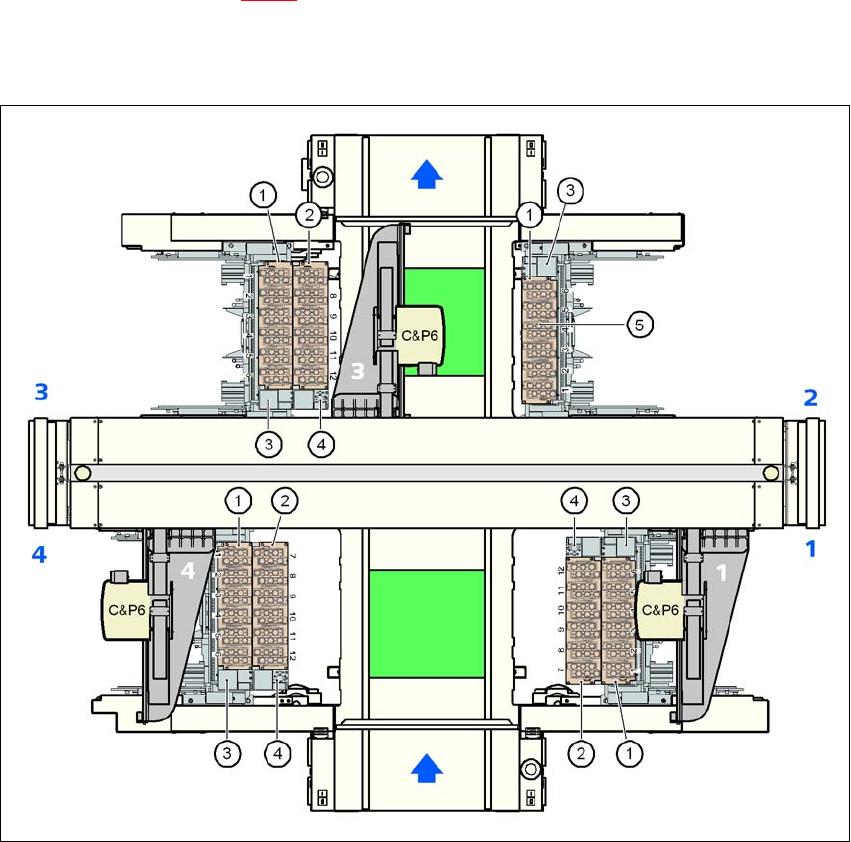

Fig. 6.1 - 8 Position of the nozzle changers for the C&P6 head
(1) "Row 1" nozzle changer
(2) "Row 2" nozzle changer
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
6
6 Station extensions User Manual SIPLACE D3
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
292
6.1.2.4 Assembly
The "Row 1" nozzle changer (see Fig. 6.1 - 9) is fixed to the component trolley docking unit. There
is an additional assembly kit for the "row 2" nozzle changer. This kit consists of the take-off device
and the nozzle reject bin (see Section 6.1.2.8
, page 296).
6

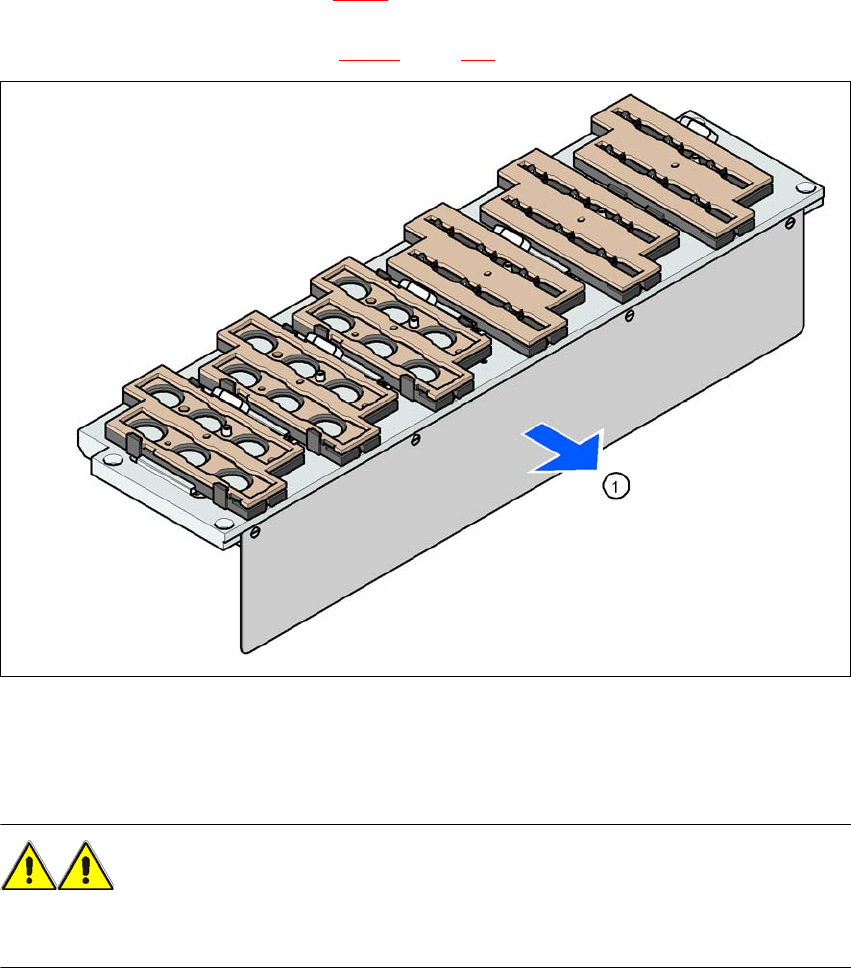

Fig. 6.1 - 9 Assembly position
(1) Cover plate pointing toward the PCB conveyor
→ Align the nozzle changer so that the cover plate (item 1) points toward the PCB conveyor.
WARNING 6
Only install the associated nozzle changer for each placement head. There is a risk of head
crashes with mixed configurations.
User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
293
6.1.2.5 Notes on operation
→ The magazines can be filled with different nozzle types within a nozzle family: 8x magazine,
for example, with nozzle types 821, 822, 823, 9x magazine with types 911, 914, etc.
PLEASE NOTE 6
Fill the magazines off the machine and always replace complete magazines. 6
→ Open the locking plate and place the nozzles in the nozzle holders.
→ Close the locking plate so that the nozzles cannot drop out of the magazines.
CAUTION 6
Before you fill magazine, make sure that all the nozzles on the Collect&Place head have
been returned to their magazines. 6
→ Programming the nozzle changer is described in the SIPLACE Pro user manual.
PLEASE NOTE 6
→ Do not allow components to drop onto the magazines. If they do, they could jam the locking
plate.
→ Do not allow components to drop onto free feeder module locations. They will stick to the
magnetic bar. Production may have to be interrupted if the feeder modules are not placed on
the component table correctly. You should therefore regularly clean the magazines and free
locations.
