User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.2 Matrix tray changer
307
6.2.5 Dimensions of the machine with MTC
6
6
6
6

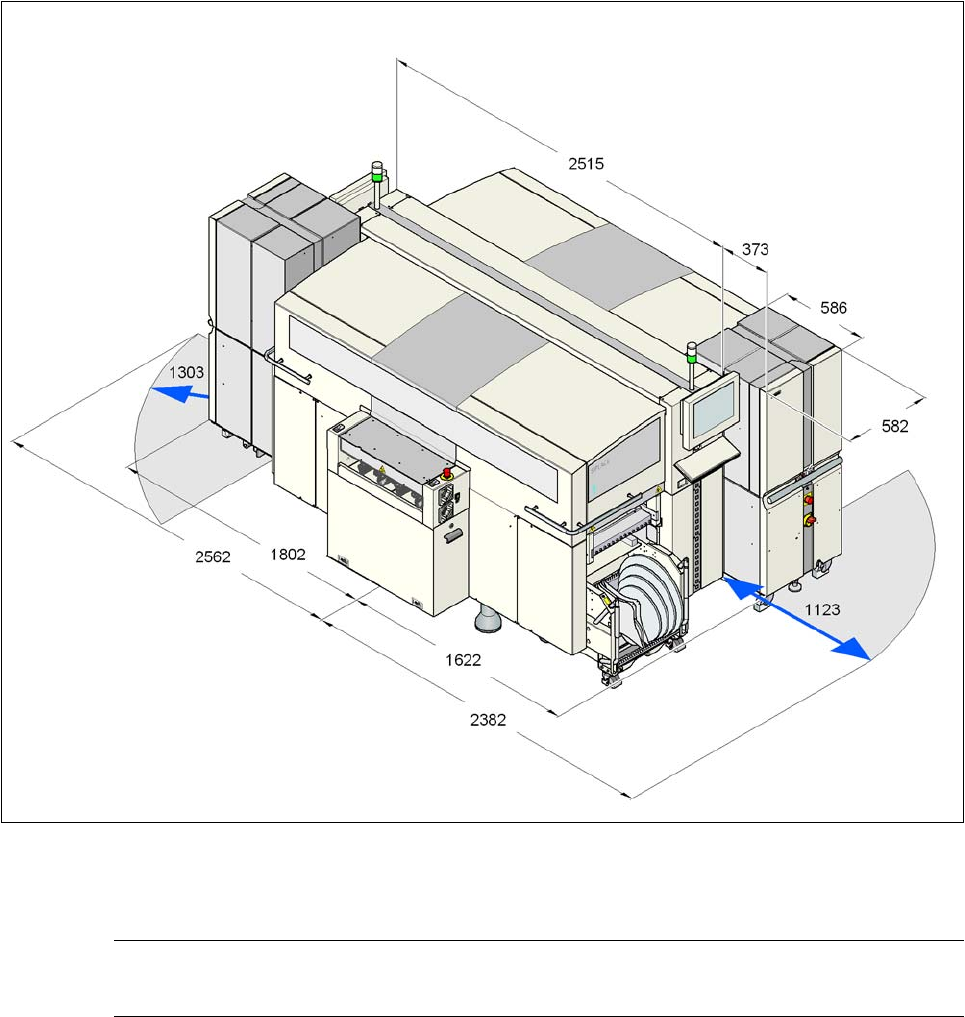

Fig. 6.2 - 3 Dimensions of the machine with matrix tray changer in millimeters
PLEASE NOTE 6
A matrix tray changer may be docked in at locations 2 and 4 in place of a component trolley.
6 Station extensions User Manual SIPLACE D3
6.3 Waffle-pack changer From software version SR.605.xx 07/2008 EN Edition
308
6.3 Waffle-pack changer
Item no. 00119825-xx WPC4 on the SIPLACE D-series
6.3.1 Safety instructions
WARNING 6
→ Never reach into the gaps between the waffle-pack changer and the machine base while the
machine is running.
→ The waffle-pack changer control cable must only then be connected to the connecting socket
or taken from this if the waffle-pack changer is docked into the machine.
→ The power supply cable must not be plugged into or unplugged from the external power supply
unless the waffle-pack changer is docked into the machine.
→ The waffle-pack changer must NOT be operated unless it is docked into the machine.
6.3.2 Description
The waffle-pack changer makes components available in the waffle-pack trays to avoid unneces-
sary loss of time during storage and automatic changing of the waffle-pack trays. Programmable,
random access to up to 28 waffle-pack trays also increases the range of components that can be
made available.
The waffle-pack changer has an integral chassis, and is easy to move to other locations. It is
supplied with the PCB conveyor height implemented for the machines, but can also be adapted
for the 830, 900, 930 and 950 mm PCB conveyor heights with just a few simple operations.
There are 4.5 locations for 30 mm width S feeder modules available on the component table.
Both the TwinHead and the 6 and 12 segment Collect&Place head can pick up components from
the waffle-pack tray.
User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.3 Waffle-pack changer
309
6.3.3 Technical data
6.3.3.1 Dimensions, weight
6.3.3.2 Electrical ratings
Dimensions (L x W) 1560 x 360 mm²
Height
830 mm ± 15 mm PCB conveyor height
900 mm ± 15 mm PCB conveyor height
930 mm ± 15 mm PCB conveyor height
950 mm ± 15 mm PCB conveyor height
1360 mm ± 15 mm
1430 mm ± 15 mm
1460 mm ± 15 mm
1480 mm ± 15 mm
Weight approx. 240 kg
Load per unit area 4.19 kN/m²
Dimensions of the waffle-pack tray carrier (L x W x H) 360 x 260 x 6 mm³
Weight of the waffle-pack tray carrier 0.8 kg
Dimensions of the waffle-pack tray, including components 341 x 235 x 15 mm³
max. 341 x 235 x 23 mm³
Weight of the waffle-pack tray carrier, including waffle-pack tray
and components max. 1.2 kg
Storage capacity max. 28 WTC
Total weight of the 28 waffle-pack tray carriers 27.6 kg
Weight of magazine storage unit, waffle-pack tray carrier, waffle-
pack trays and components max. 50 kg
Changeover time for waffle-pack tray carriers
over 1 level
over 10 levels
over 27 levels
1.9 s
2.3 s
2.9 s
Supply voltage 3 x 200 VAC ± 5 %; 50/60 Hz (Japanese version)
3 x 208 VAC ± 5%; 50/60 Hz (U.S.A. version)
3 x 230 VAC ± 5%; 50/60 Hz
3 x 380 VAC ± 5%; 50/60 Hz
3 x 400 VAC ± 5%; 50/60 Hz (European version)
3 x 415 VAC ± 5%; 50/60 Hz
Nominal apparent power 800 VA
Rated current 0.7 A for 3 x 400 VAC
Fuse 3 x 10 or 3 x 16 A
