6 Station extensions User Manual SIPLACE D3 6.3 Waffle-pack changer From software version SR.605.xx 07/2008 EN Edition 312 6.3.6 Machine dimensions with WPC 6 6 6 Fig. 6.3 - 2 Dimensions of the machine with waffle-pack c…
User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.3 Waffle-pack changer
311
6.3.5 Dimensions
6

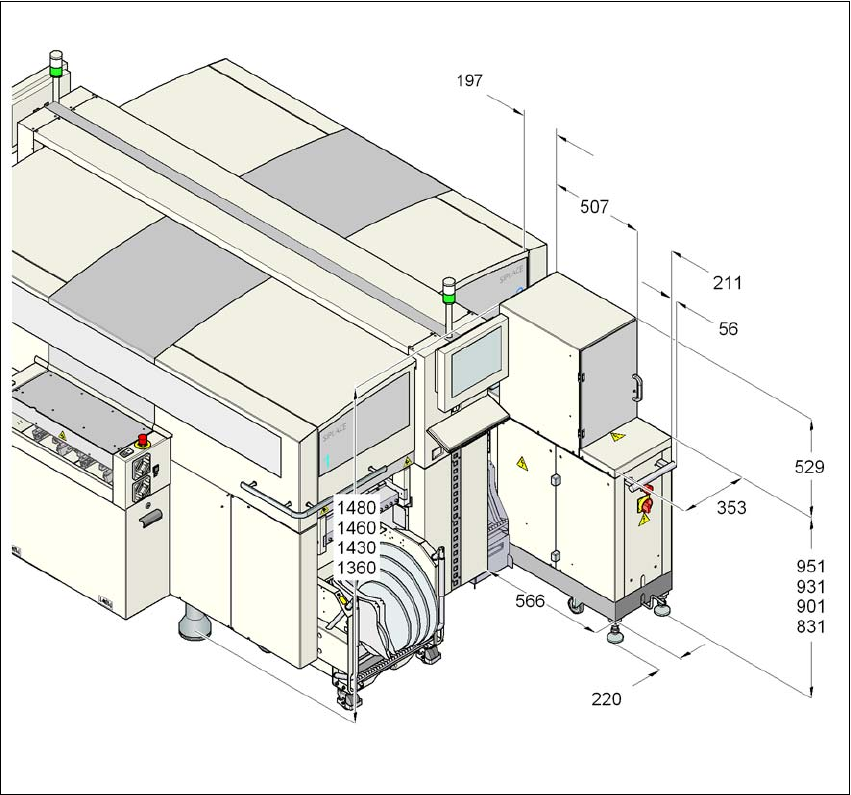

Fig. 6.3 - 1 Dimensions of the waffle-pack changer
6 Station extensions User Manual SIPLACE D3
6.3 Waffle-pack changer From software version SR.605.xx 07/2008 EN Edition
312
6.3.6 Machine dimensions with WPC
6
6
6
Fig. 6.3 - 2 Dimensions of the machine with waffle-pack changer in millimeters
6
PLEASE NOTE 6
A waffle-pack changer may be docked in at location 2 in place of a component trolley.
User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.3 Waffle-pack changer
313
6.3.7 Controls
6
Fig. 6.3 - 3 WPC - controls
(1) Main power switch
(2) EMERGENCY STOP button
(3) Magazine storage unit
(4) Crank for raising or lowering the chassis
