6 Station extensions User Manual SIPLACE D3
6.3 Waffle-pack changer From software version SR.605.xx 07/2008 EN Edition
312
6.3.6 Machine dimensions with WPC
6
6
6

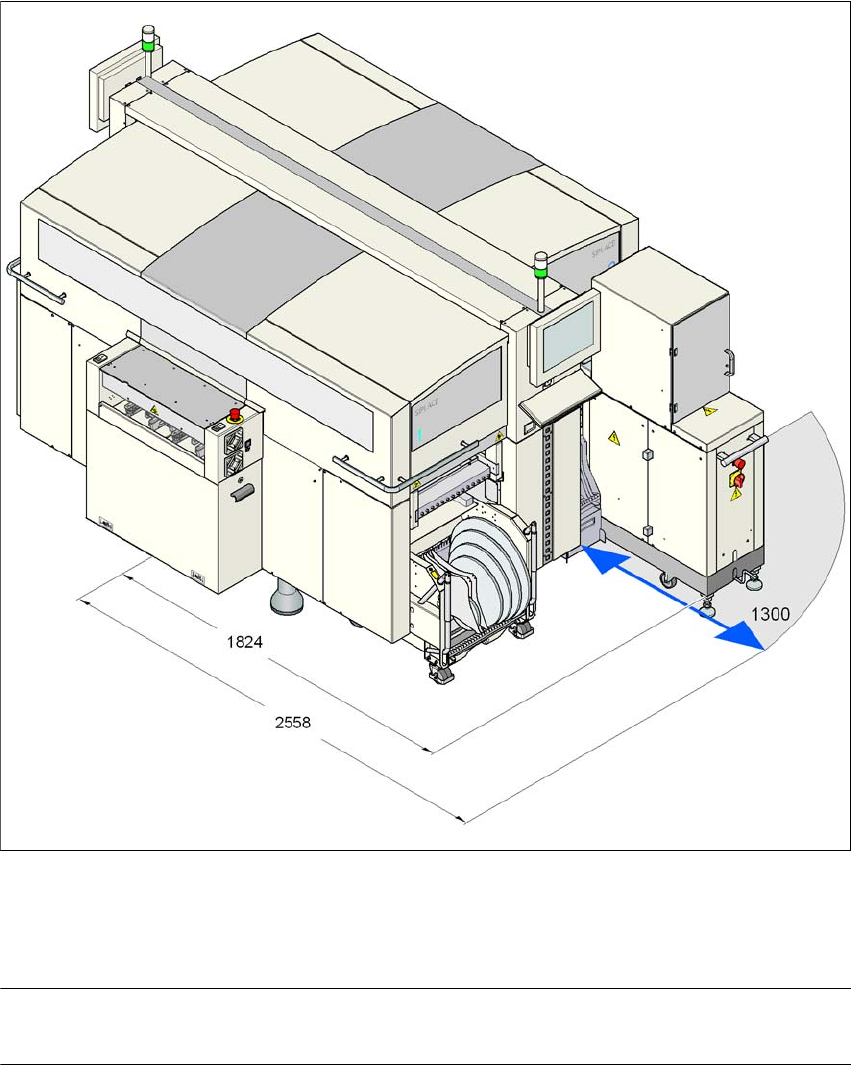

Fig. 6.3 - 2 Dimensions of the machine with waffle-pack changer in millimeters
6
PLEASE NOTE 6
A waffle-pack changer may be docked in at location 2 in place of a component trolley.
User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.3 Waffle-pack changer
313
6.3.7 Controls
6

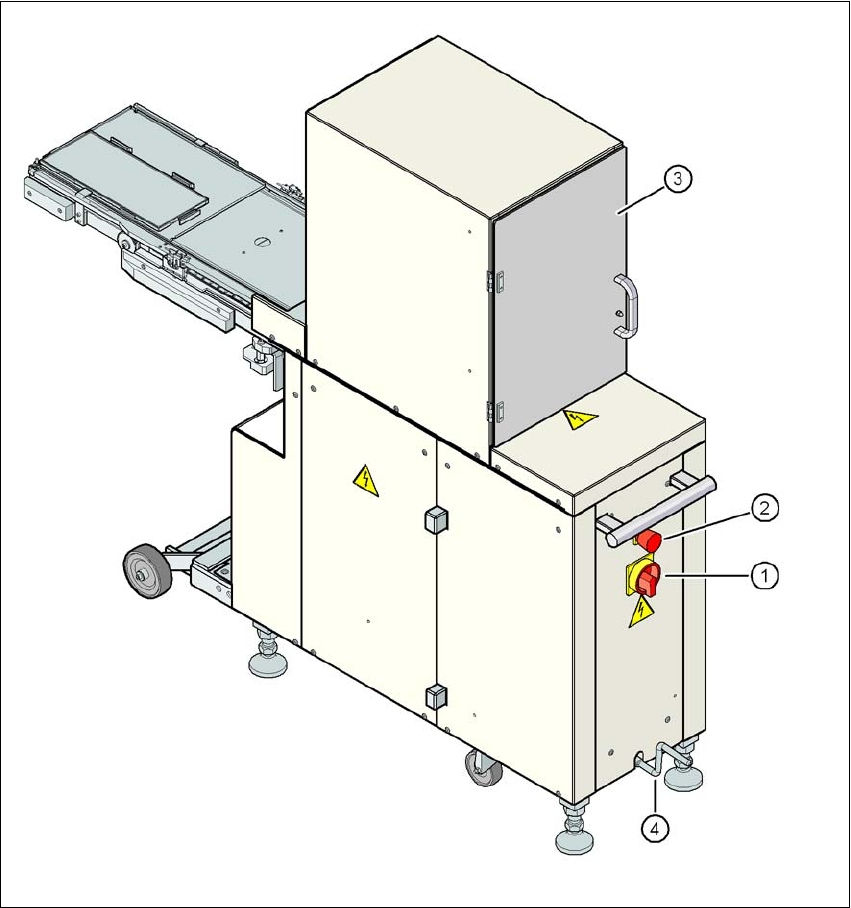

Fig. 6.3 - 3 WPC - controls
(1) Main power switch
(2) EMERGENCY STOP button
(3) Magazine storage unit
(4) Crank for raising or lowering the chassis
6 Station extensions User Manual SIPLACE D3
6.4 Sensor for the component reject bin From software version SR.605.xx 07/2008 EN Edition
314
6.4 Sensor for the component reject bin
Item no. 00116848-xx Sensor, component reject bin, X-series/D3
The sensor for the component reject bin monitors whether the reject bin is seated correctly in its
mount.
– If the reject bin was not inserted correctly, the machine cannot be started.
– If the reject bin jumps out of its mount during the placement process, the machine is stopped
immediately to avoid a head crash.
Each reject bin can be monitored by a separate sensor.
6.5 SIPLACE High-Force Head
Item no. 00119878-xx High-Force Head for D3
This item number only applies when a new placement machines is ordered with a High-Force
Head rather than a standard TwinHead. 6
Item no. 00119753-xx High-Force Head upgrade kit
Use this item number if you want to replace a standard TwinHead with a High-Force Head.6
6.5.1 Description
The SIPLACE High-Force Head is a development offshoot of the standard TwinHead. It can pro-
cess the same component range and also offers the possibility of achieving set-down forces up to
30 N.
Otherwise the technical data for the TwinHead and High-Force Head is the same (see Section
3.5.3.2
, page 116).
All the nozzles and grippers that are used with the standard TwinHead can be used for the SI-
PLACE High-Force Head.
Programmable set-down force 2.0 N to 10 N ± 10%
greater than 10 N up to 30 N ± 15%
