User Manual SIPLACE D3 6 Station extensions From software version SR.605.xx 07/2008 EN Edition 6.7 PCB barcode scanner 321 6.7.5 W arning label W2 16 on the cover of the PCB input side 6 W arning label W216 "Laser c…
6 Station extensions User Manual SIPLACE D3
6.7 PCB barcode scanner From software version SR.605.xx 07/2008 EN Edition
320
6.7.4 Assembly options for the PCB barcode scanner

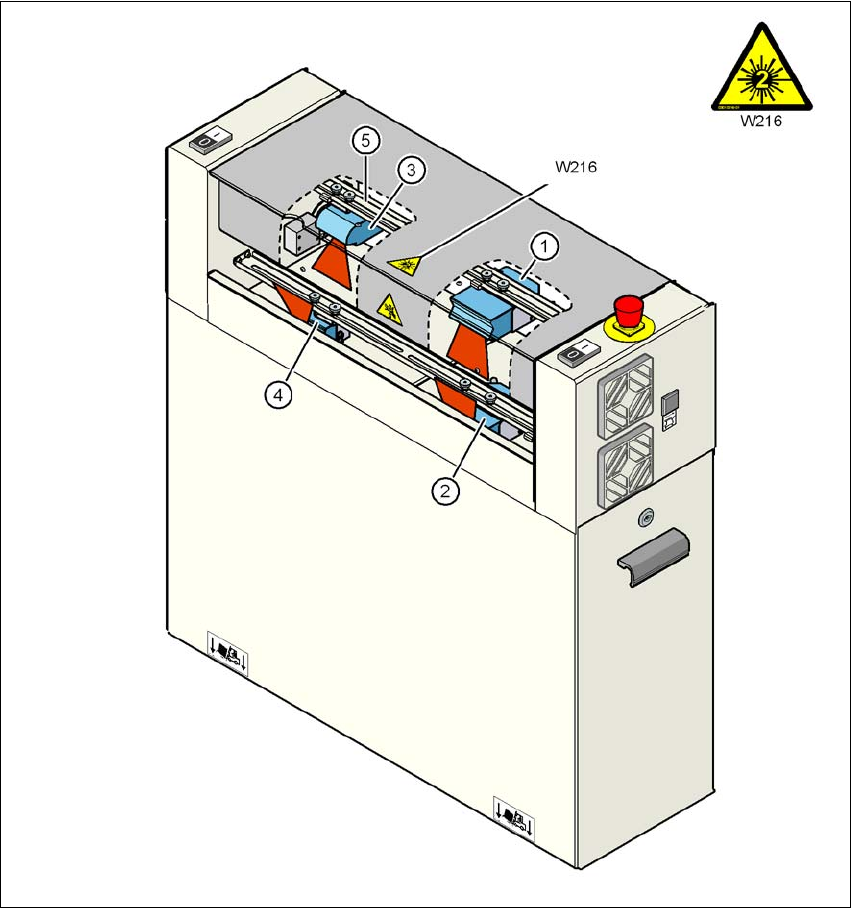

Fig. 6.7 - 3 Assembly options for the PCB barcode scanner
(1) 2D barcode scanner "topside"
(2) 2D barcode scanner "underside"
(3) 1D barcode scanner "topside"
(4) 1D barcode scanner "underside"
(5) Assembly rail
Pos. W216, item no. 03010316-01
User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.7 PCB barcode scanner
321
6.7.5 Warning label W216 on the cover of the PCB input side
6
Warning label W216 "Laser class 2" on the cover of the PCB input side,
item no. 03010316-01 (number per machine: 1)
PLEASE NOTE 6
When you install a PCB barcode scanner on the machine, you must attach laser warning label
W206 contained in the retrofit kit to the cover on the PCB input side.
6
6.7.6 Positioning PCB barcode labels on the PCB
PLEASE NOTE 6
Restrictions for PCBs longer than 430 mm
6.7.6.1 Positioning along the long side of the PCB -
Scanning beam across the direction of travel

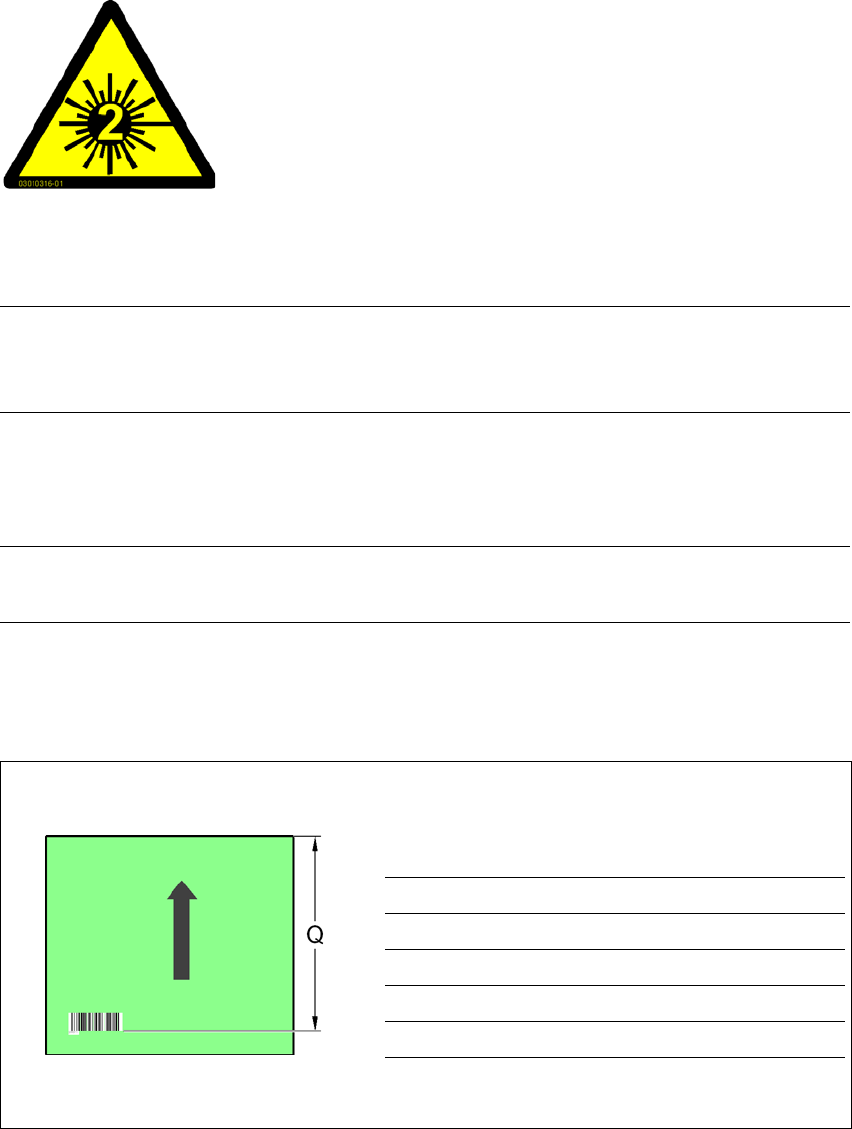

Fig. 6.7 - 4 Positioning along the long side of the PCB - Scanning beam across the direction of travel
6
6
6
6
6
6
LASER RADIATION!
Do not look into beam
Laser class 2
PCB barcode scanner Q [mm]
2D topside 390
1D topside 390
2D underside 430
1D underside 430
6 Station extensions User Manual SIPLACE D3
6.7 PCB barcode scanner From software version SR.605.xx 07/2008 EN Edition
322
6.7.6.2 Positioning along the long side of the PCB -
Scanning beam along the direction of travel

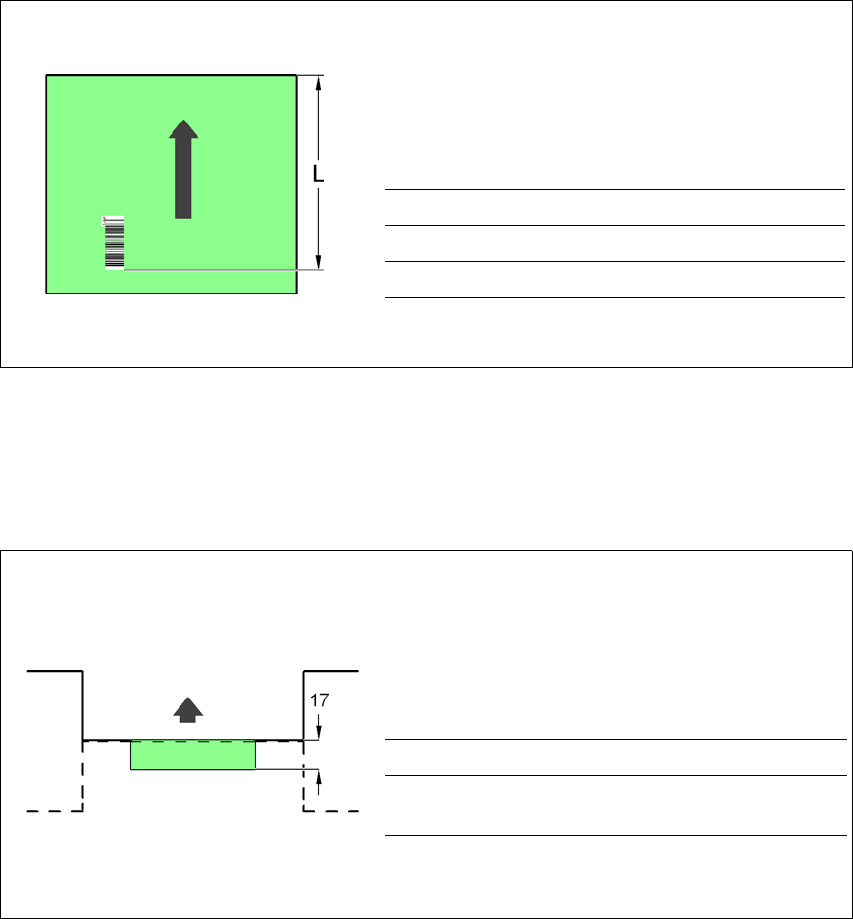

Fig. 6.7 - 5 Positioning along the long side of the PCB - Scanning beam along the direction of travel
6.7.6.3 PCB overshoot over the machine with the dual conveyor
Fig. 6.7 - 6 PCB overshoot over the machine with the dual conveyor
PCB barcode scanner L [mm]
1D topside 320 - 350
1D underside 380 - 410
PCB barcode scanner Overshoot [mm]
2D underside on the
dual conveyor
17
Input side of the downstream machine
Output side of the upstream machine
