User Manual SIPLACE D3 2 Operational safety From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels 45 2.2.3 W arning labels on tape cutter and used t ape chute 2 Pos. W205 in Figs. 2.2 - 4 , p age 45 , 2.2…
2 Operational safety User Manual SIPLACE D3
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
44
2
Pos. W202 in Fig. 2.2 - 3, page 43, item no. 03009341-01
(number per machine: 7)
WARNING 2
Powerful permanent magnetic fields inside the machine
DANGER 2
Risk of death for persons with active implants (e.g. pacemakers, insulin pumps, defibrillators).
2
WARNING
Danger of crushing for persons with passive metal implants (e.g. plates, screws).
Do not reach into the machine or bend towards it when the protective covers are open.
Do not bring any metal objects into the area.
User Manual SIPLACE D3 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
45
2.2.3 Warning labels on tape cutter and used tape chute
2
Pos. W205 in Figs. 2.2 - 4, page 45, 2.2 - 5, page 46 and 2.2 - 6, page 47
Item no. 03009344-01 (number per machine: 16)
2.2.3.1 Warning label W205 on the top
2

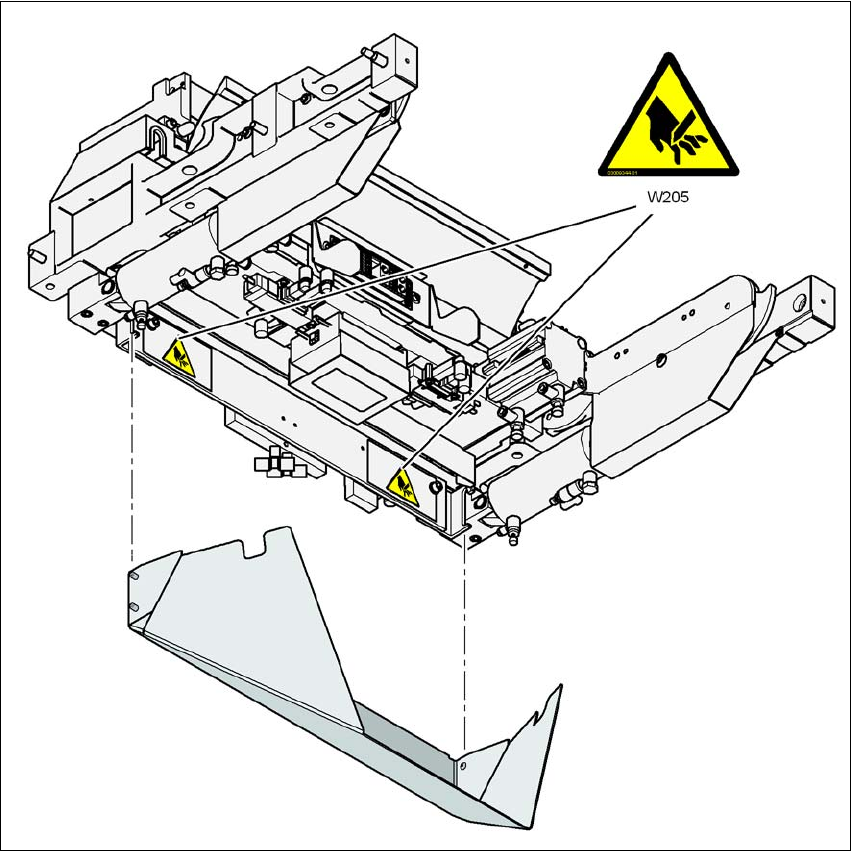

Fig. 2.2 - 4 Warning label W205 on the top of the tape cutter
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains supply
and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter. 2
2
2
2
2
2
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the machine is
switched off
2 Operational safety User Manual SIPLACE D3
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
46
2.2.3.2 Warning label W205 on the underside of the component trolley docking unit
2
Fig. 2.2 - 5 Warning label W205 on the bottom of the tape cutter
