2 Operational safety User Manual SIPLACE D3 2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition 48 2.2.3.4 W arning strips on the used t ape channel of the component trolley docking unit 2 Fig. 2.2 - 7 …
User Manual SIPLACE D3 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
47

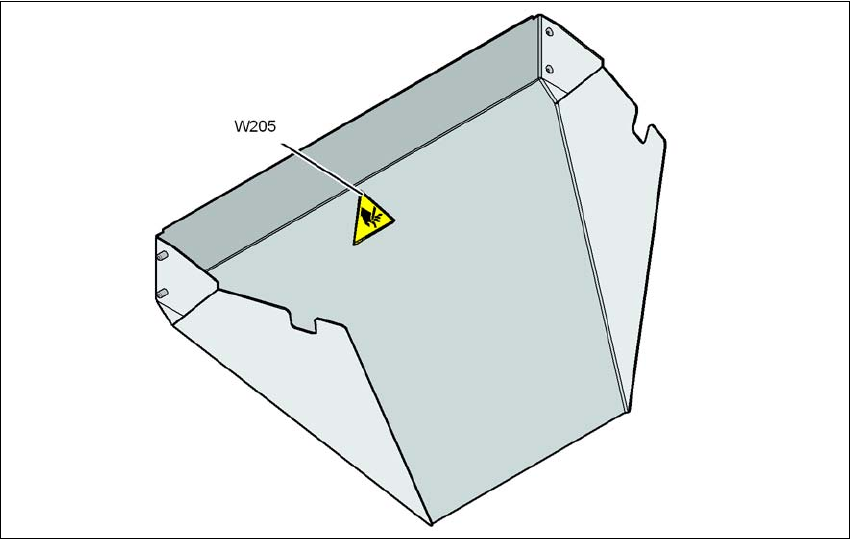

2.2.3.3 Warning label W205 on the used tape chute
2
Fig. 2.2 - 6 Warning label W205 on the used tape chute
2 Operational safety User Manual SIPLACE D3
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
48

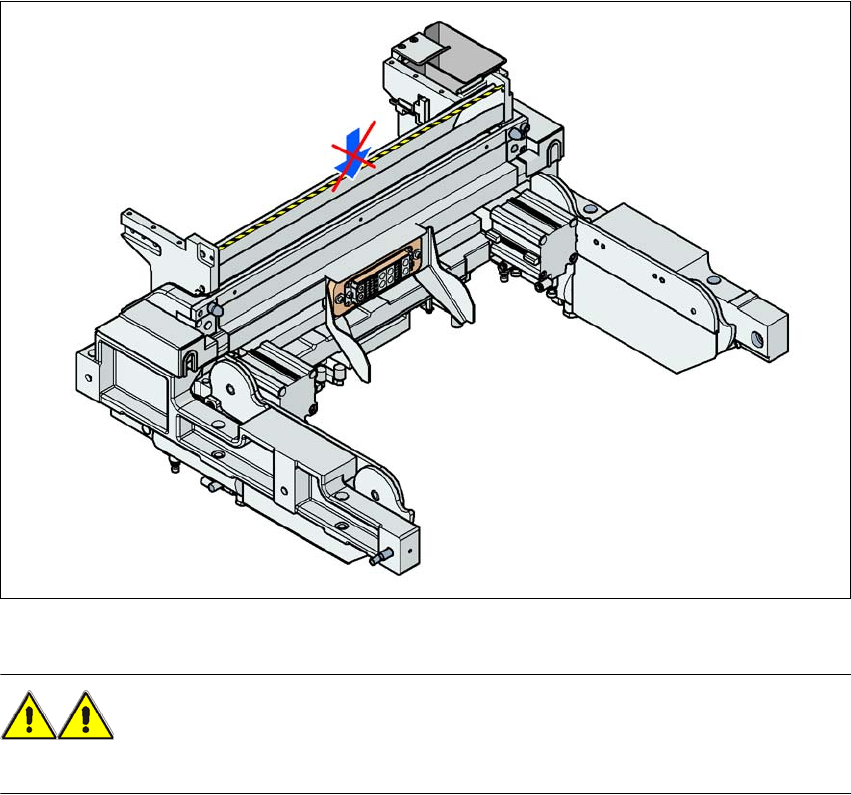

2.2.3.4 Warning strips on the used tape channel of the component trolley docking unit
2
Fig. 2.2 - 7 Warning strips on the used tape channel of the component trolley docking unit
WARNING 2
Never reach into the opening in the used tape channel.
User Manual SIPLACE D3 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
49
2.2.4 Warning labels on the power supply unit
2
Pos. W206 in Fig. 2.2 - 8, page 49 item no. 03009345-01 (number per machine: 1) and Pos. W1
Fig. 2.2 - 8 Warning label W206 on service socket X102 and W1 on main power switch Q1
Pos. W206, item no. 03009345-01
Pos. W1, warning label on main power switch Q1
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
