User Manual SIPLACE D3 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
49
2.2.4 Warning labels on the power supply unit
2
Pos. W206 in Fig. 2.2 - 8, page 49 item no. 03009345-01 (number per machine: 1) and Pos. W1

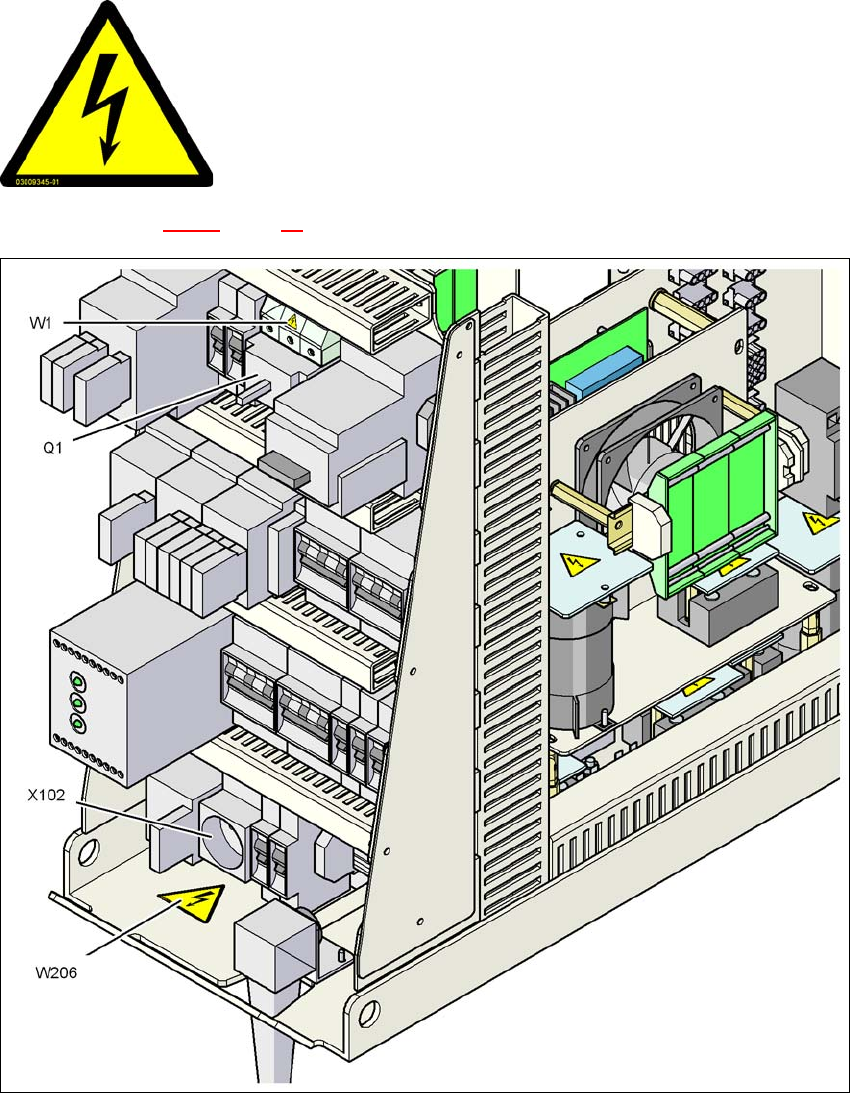

Fig. 2.2 - 8 Warning label W206 on service socket X102 and W1 on main power switch Q1
Pos. W206, item no. 03009345-01
Pos. W1, warning label on main power switch Q1
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2 Operational safety User Manual SIPLACE D3
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
50
2.2.4.1 Warning label W on the power supply unit

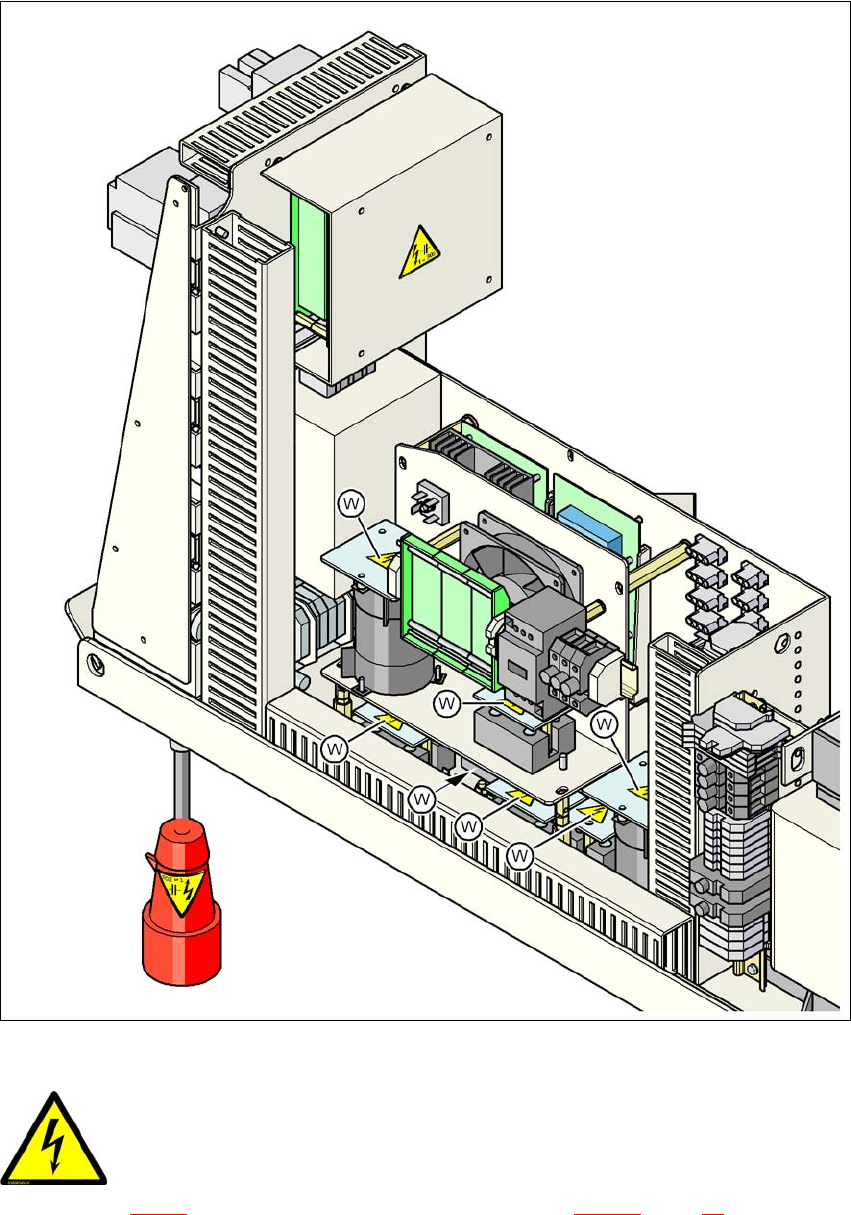

Fig. 2.2 - 9 Warning label W on the power supply unit
2
Pos. W in Fig. 2.2 - 9 (number per power supply unit: 8) see Fig. 2.2 - 10, page 51 too
User Manual SIPLACE D3 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
51
2.2.4.2 Warning label W on the cover over the main power supply for the servo
amplifier

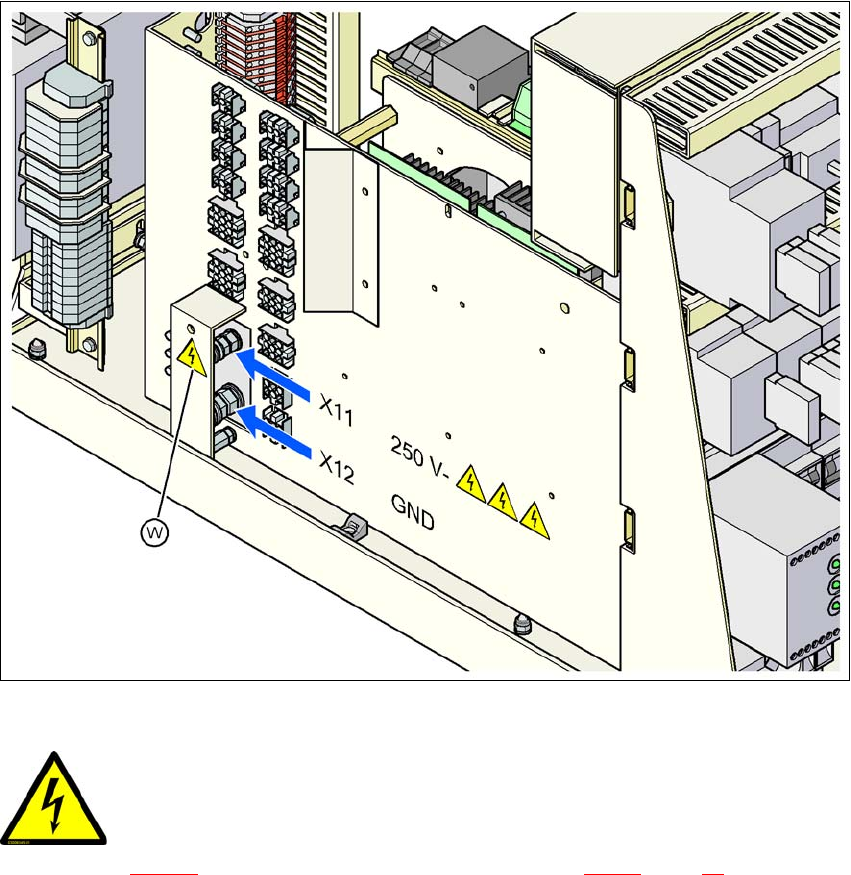

Fig. 2.2 - 10 Warning label W on the cover over the main power supply for the servo amplifier
2
Pos. W in Fig. 2.2 - 10 (number per power supply unit: 8) see Fig. 2.2 - 9, page 50 too
