In SIPLACE Explorer 2.7 the data are updated at the beginning and at the end of a shift even if the shift
change does not take place at top of the hour.
4 System Components and Configurations
SIPLACE Explorer can either be installed in SIPLACE LAN or distributed via SIPLACE and client LANs.
Users not wishing to install the complete SIPLACE Explorer program on one computer can distribute the
individual components among several computers. When distributing the individual components, part of
the SIPLACE Explorer application is installed on the line host PC. This contains the components
described below.
and could be structured as follows: 2
– Various drivers:
Driver usage for devices which are not GEM-capable (SAFI, SIPLACE OIS).
– Server for SIPLACE Explorer Runtime Environment.
– Web server:
For management of Java servlets.
Please note that the web server and the SIPLACE Explorer databases do not need to be installed on the
line host PC.

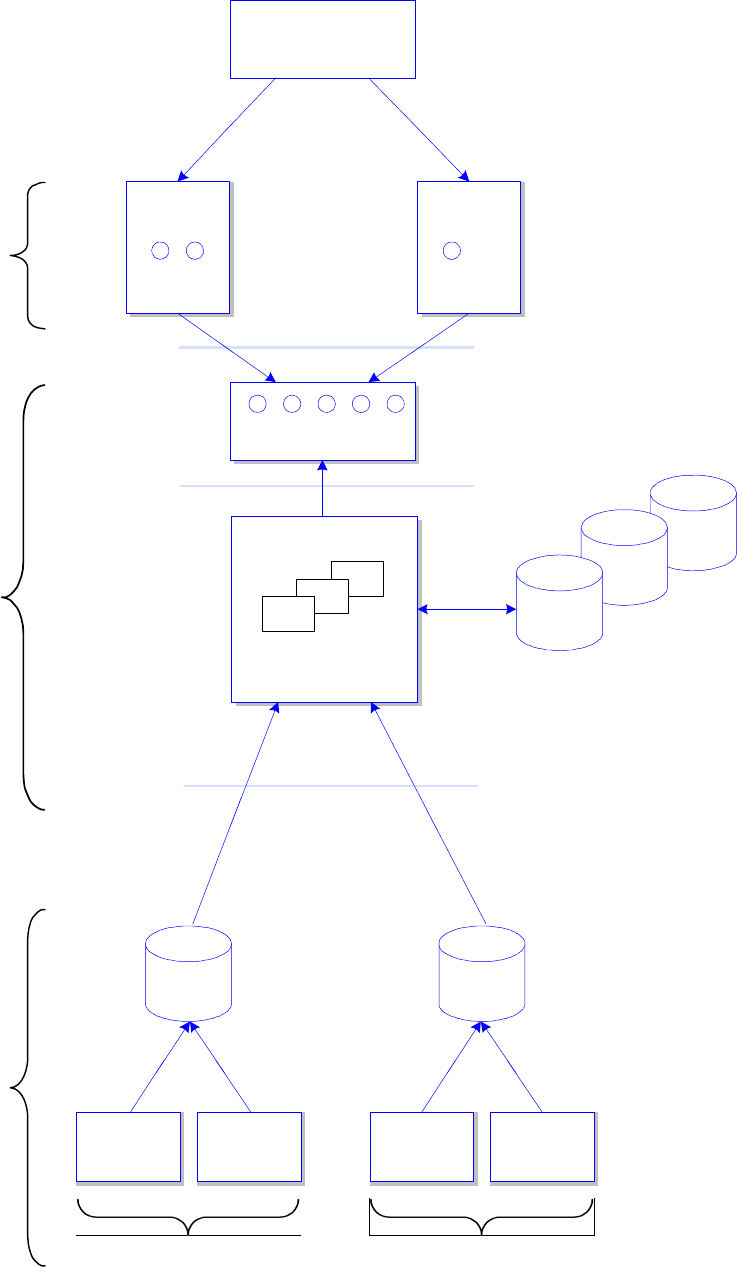

The SIPLACE Explorer architecture is displayed in the following diagram:
Software Versionsbeschreibung Software Version Description SIPLACE Explorer V2.7
13 of 56
System
DB
System
DB
Web
Browser
applets
SMA / Line 1
...
Web
Browser
applets
SMA / Line 5
servlets, JSP
Tomcat Web Server
SIPLACE Explorer Host
SIPLACE Explorer
Applications 1.. 5
Web Clients
Software
Architecture
One or several NT Servers
SIPLACE
Station 1
SIPLACE
Station N
SIPLACE
Station 1
SIPLACE
Station N
Production Line 1 Production Line 5
...
OIS/SIS
DB
OIS/SIS
DB
...
SIPLACE OIS / SIS
compliant machines
Line 1 ... 5
System
DB
Factory Website
"Single Entry Point"
Software Versionsbeschreibung Software Version Description SIPLACE Explorer V2.7
14 von 56
The SIPLACE Explorer server software package includes various components and standalone tools,
corresponding to the installation option you have chosen.
• Runtime Environment:
– Archive Browser Utility
– Console
– Line Configuration
– Performance Analyzer
– SE Manager
– Documentation
– Standard Monitoring Application
• Factory Configuration Utility
• Development Environment:
– DB Maintenance Utility
– Mail Configuration Utility
– Template Builder
– SE Developer Studio:
– Line Configuration Editor
– Equipment Editor
– System Database
– Application Logic
– Bean Factory
– User Manager
– Website Builder
– Event Player
– Standard Monitoring Application
